Height Routine (2-pt Routine)
This measurement routine is ideal for leaning objects and requires a clear line of sight for both shots.
Height Routine (2-Point Routine) Workflow
= Measured
= Calculated

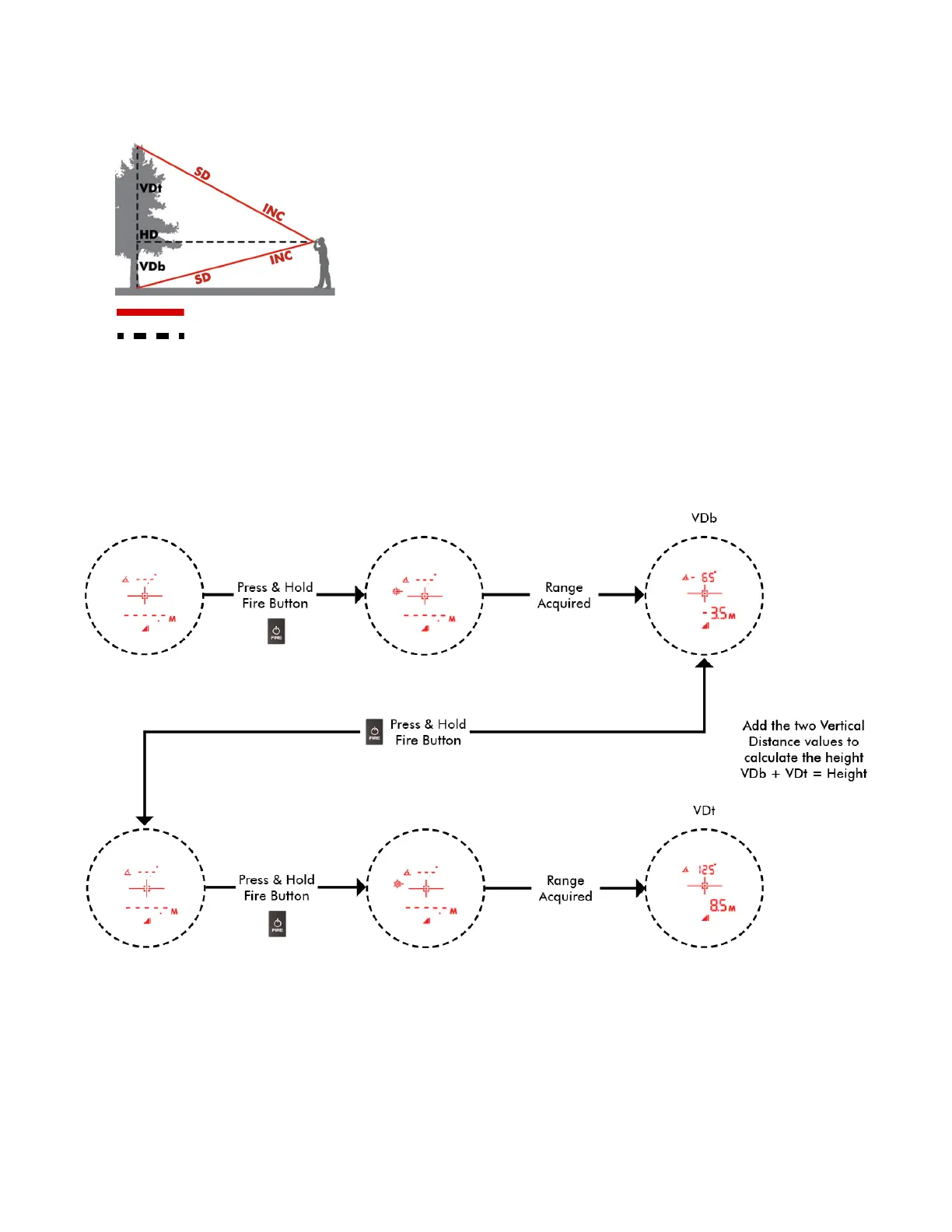

Figure 16
1. Press Up or Down buttons until the Vertical Distance (VD) indicator
is displayed.
2. Aim where you have a clear line of sight to the base of the target and
press-and-hold FIRE button.
• The laser indicator will be displayed. When the measurement
is acquired the result will be displayed.
Note this value for the Vertical Distance (VDb) measurement.
3. Aim where you have a clear line of sight at the top of the target then
press- and-hold the FIRE button.
4. The laser indicator will be displayed. When the measurement is
acquired the result will be displayed.
Note this value for the Vertical Distance top (VDt) value.
5. Add the two values to calculate the height VDb + VDt = Height.
NOTE when adding the values, disregard the negative sign on the VDb.
For example, using the measurement results shown in Figure 17,
VDb 3.5 meters + VDt 8.5 meters = Height 12 meters
Figure 17
