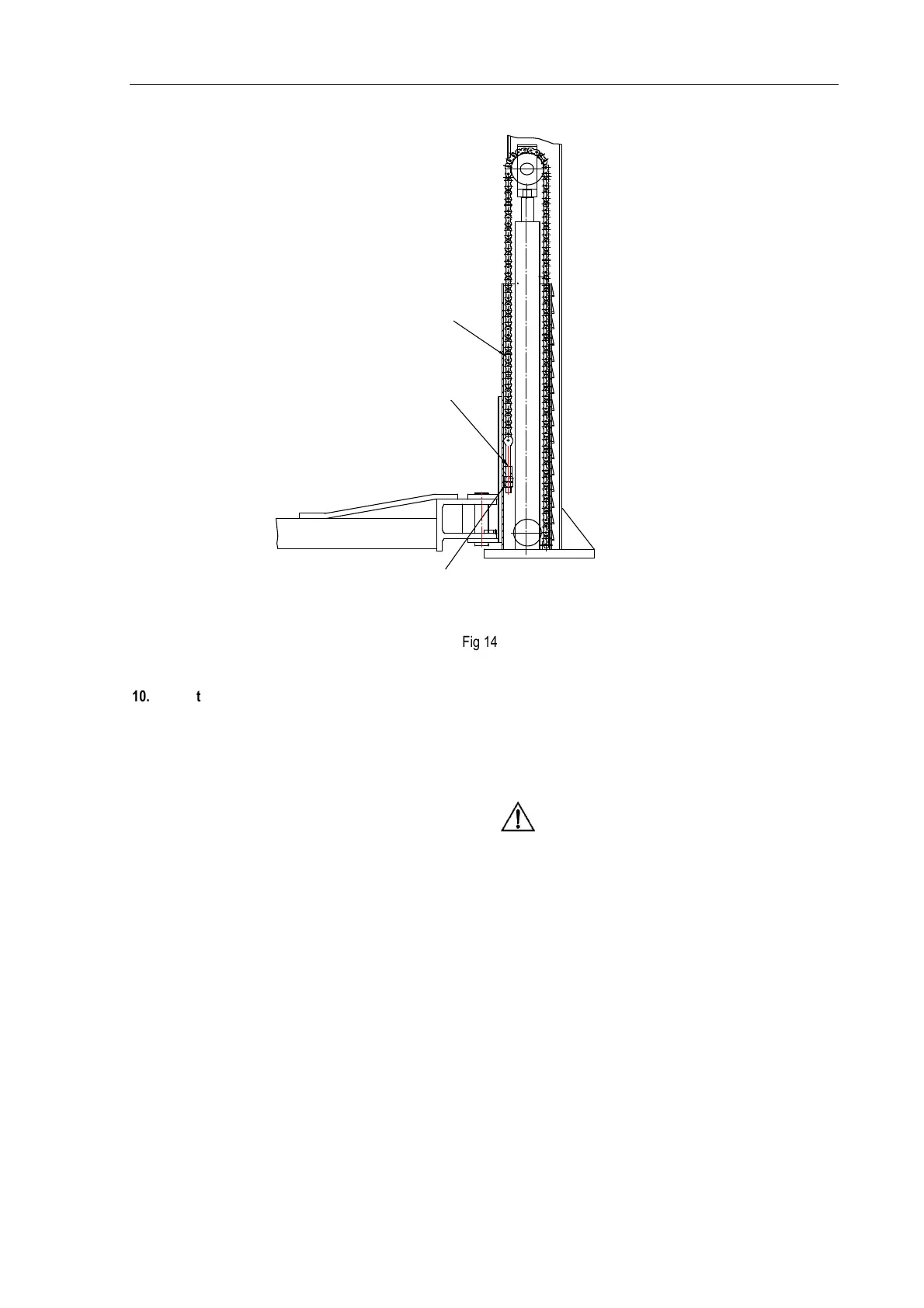

Fig 14
10.2.11 Install and adjust the electromagnet safety
mechanism
 Use Bolt s M5x12 and flat washer 5 to fix the
electromagnet, and use Bolt s M6×20 to fix safety
plate by supporting block(as shown in Fig. 3)
 Adjust the electromagnet rear end nut. When the
safety plate is under the safety status, the plate
should contact the carriage; meanwhile, there is
1-2mm gap between the nut and the end of
electromagnet. When the carriage rises, the safety
orifice utilizes its inclined angle to push away the
safety plate and rises progressively. The rattling
sound can be heard clearly in the two columns. (See
Fig.2e and 2f)
 Press UNLOCK button to actuate the electromagnet,
and see if two safety plates can completely separate
from the carriage safety orifice.
(See Fig. 2f)
Note:
 The electromagnet installation shall ensure free
pulling and release. It is not allowed to have any
jammed resistance caused by back cover or
others.
10.2.12 Install the cover, floor plate cover
Fix the electromagnet cover. Install the floor plate cover
onto the guide plate to cover the oil hose and steel cables.
Leaf chain
Adjustment bolt
Connection nut
