Launch TLT235SBA - 4.2 Electrical System of the Lift

LAUNCH Electronic Two-post User’
s Manual
13
4.2 Electrical System of the Lift

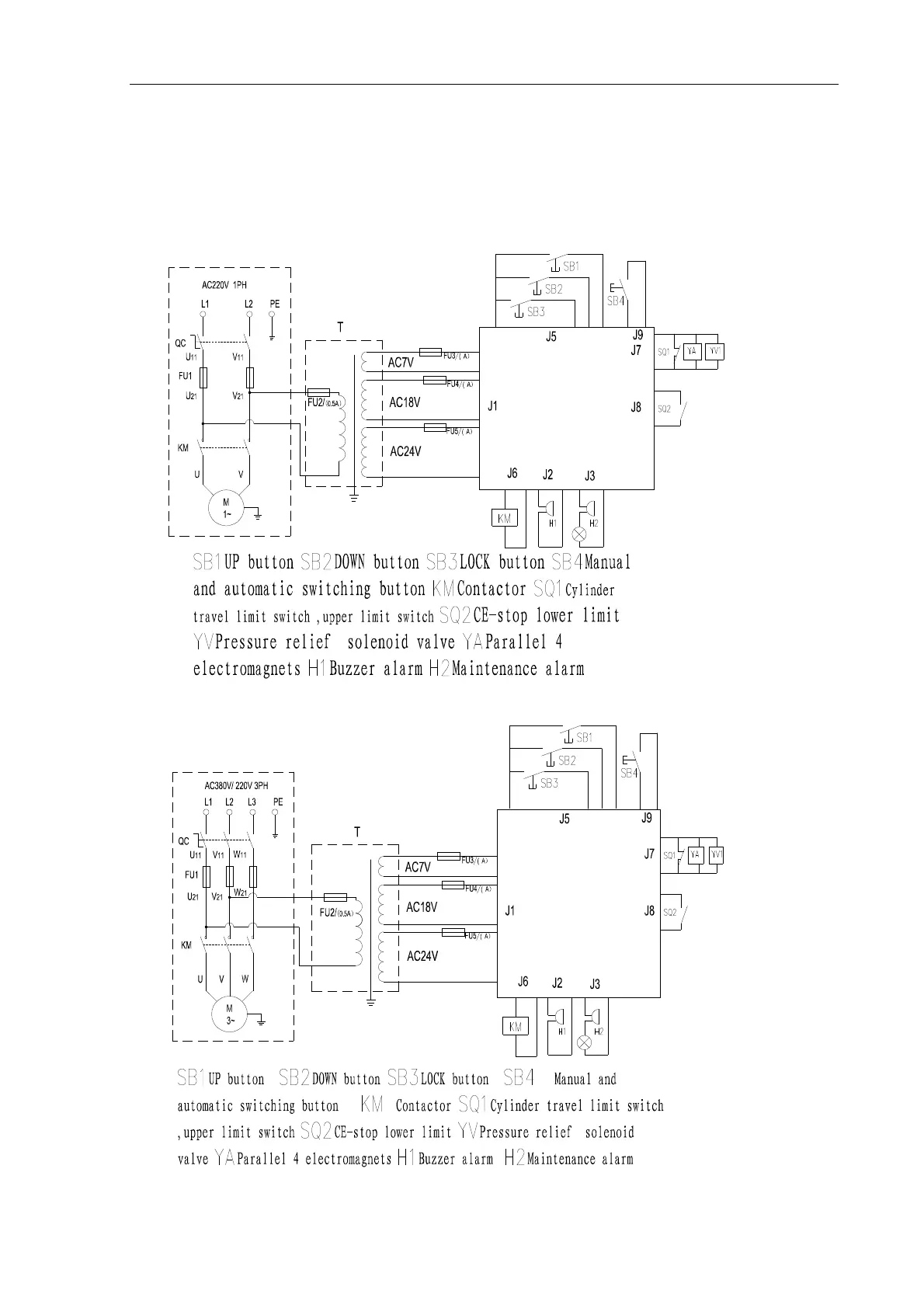

Diagram of the electrical system
