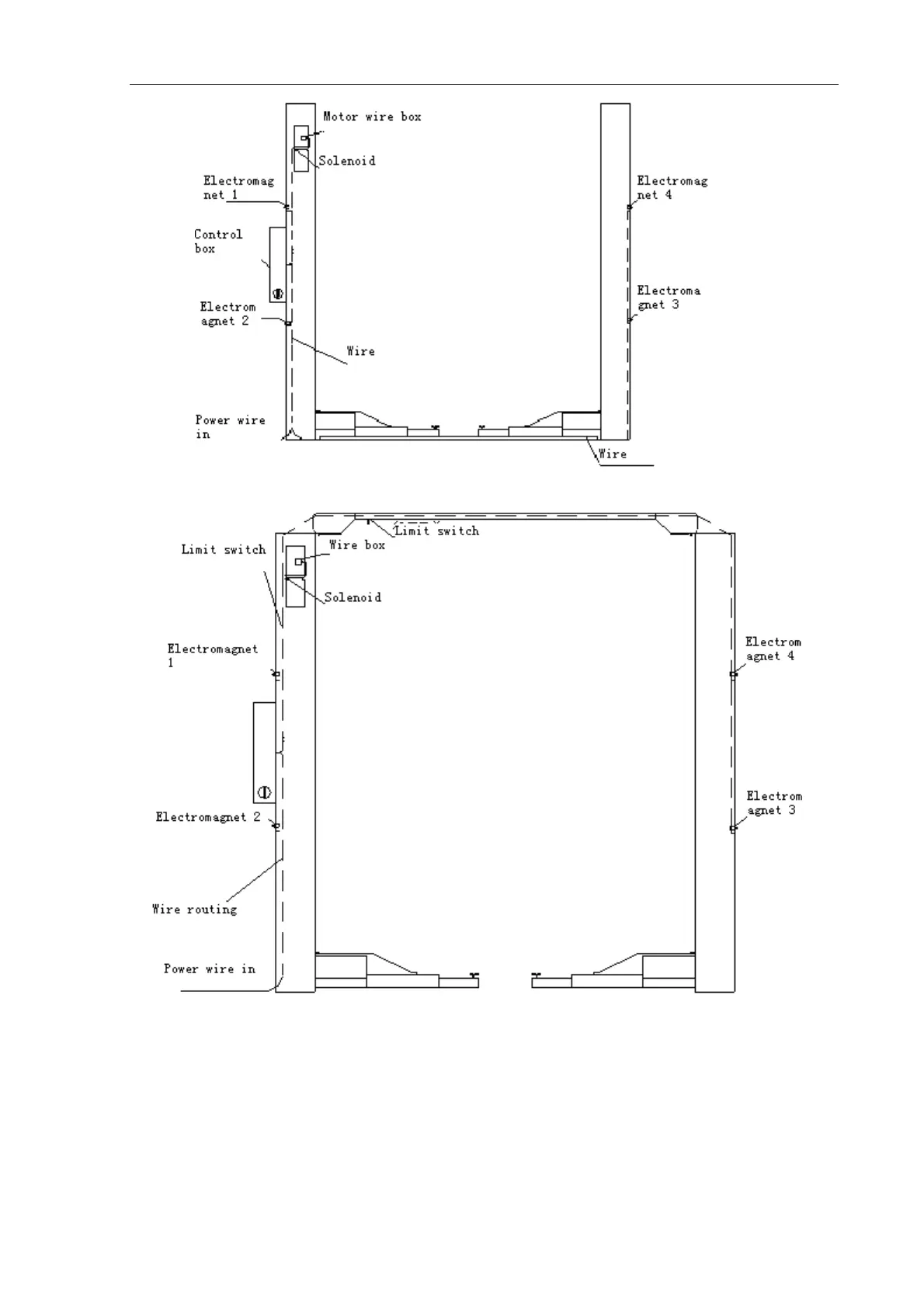

Fig 13a
Fig 13b
10.2.10 Adjust the Steel chain
The steel chain has been adjusted properly by the
manufacture (Fig. 14), making the swing arm move freely
at the lowest height without scratching the ground. The
customer can make fine adjustment for chains after the
electrical and hydraulic installation. Before adjustment, lift
the carriage to a high position and lower for 2 sec to
engage safety lock, and then adjust the nut on the
threaded end of the chain to the required position. Raise
carriage to disengage safety lock and operate as required.
