Launch TLT235SBA - Install the Electric Control Box

LAUNCH Electronic Two-post User’
s Manual
28
10.2.9 Install the electric control box
 Use M5x12 Screw and washer to fix the electric
control box casing onto the column.(Fig.12)
 Connect the electrical wiring as shown in Fig. 12.
 Install the bottom case of the electric control box.
Note:
This equipment needs NFB (non-fuse breaker) upon
installation. This equipment does not include it. It
should be bought and installed by users. The NFB is
16A.
 The power cable is required to be greater
than 2.5mm
2.
 Coat the roller and carriage passage with the
lubrication grease. Raise and lower the carriages
twice without load t o see if they work well.
 After the column is fixed, operate with load

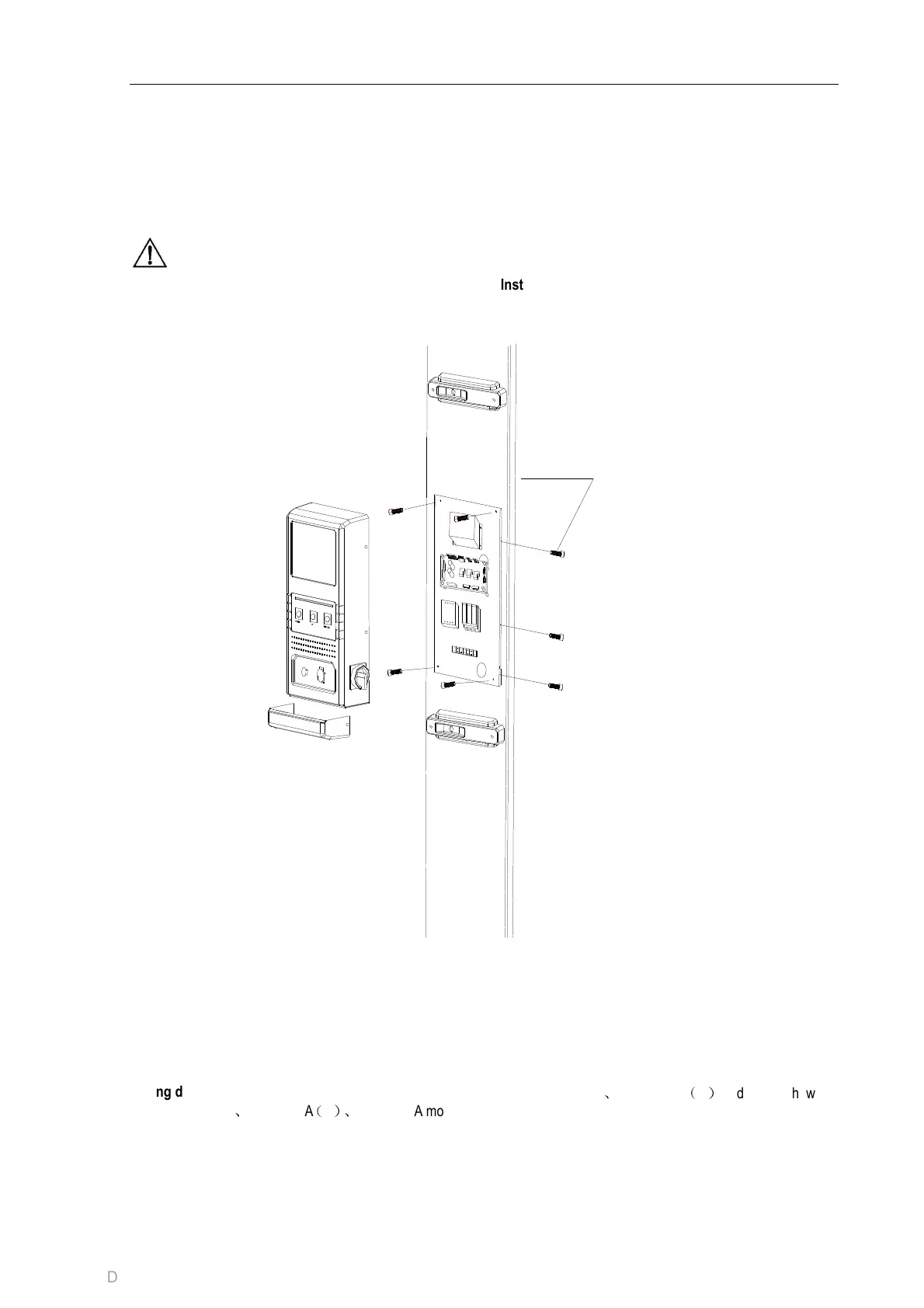

Installation schematic diagram of electric control box
Fig 12
Wiring diagram
 TLT235SBA 、 TLT235SBA （ E ）、 TLT240SBA models
are shown in Fig13a.
 TLT240SCA 、 TLT235SCA （ U ） models are shown in
Fig13b.
M4*6 Screw
