Launch TLT235SBA User Manual

LAUNCH Electronic Two-post User’
s Manual
27

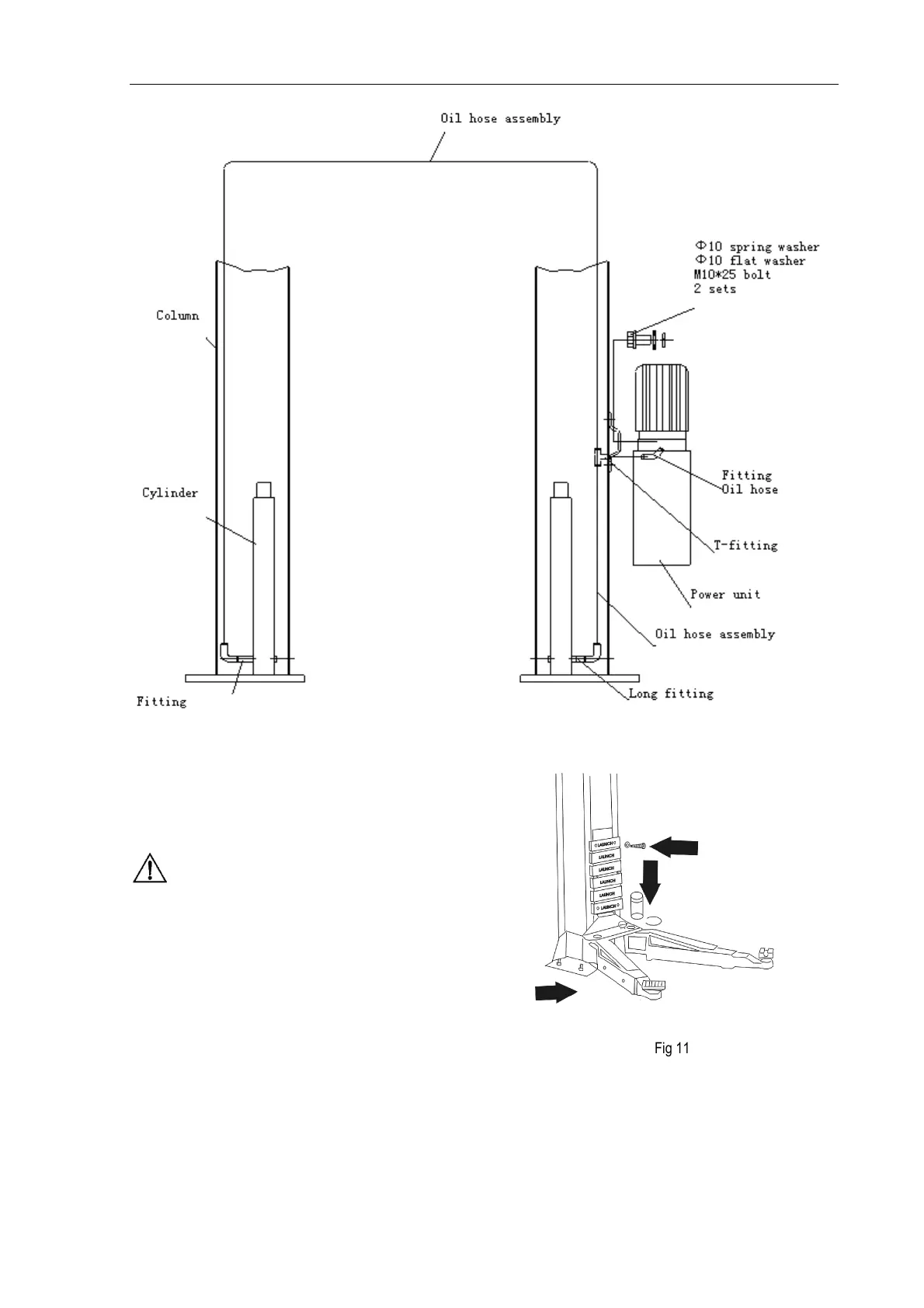

Fig.10b
10.2.8 Install the swing arm
Install the swing arm as shown In Fig.11
Note:
Before use ,check if the positioning gear mechanism at the
end of arm fits, adjust the Screw s of fixed semi-gear for its
fitness.
During the installation, lubricate the moving parts of swing
arm and carriage if accessory, so that the swing arm can
move freely.
Fig 11
(C) Diagtools; www.diagtools.eu; diagtools@diagtools.lv; Pernavas 43A, Riga, Latvia, LV-1009; +37129416069

Launch TLT235SBA Specifications

General

Brand	Launch
Model	TLT235SBA
Category	Lifting Systems
Language	English
