LAUNCH X-431TOP User’s Manual
8

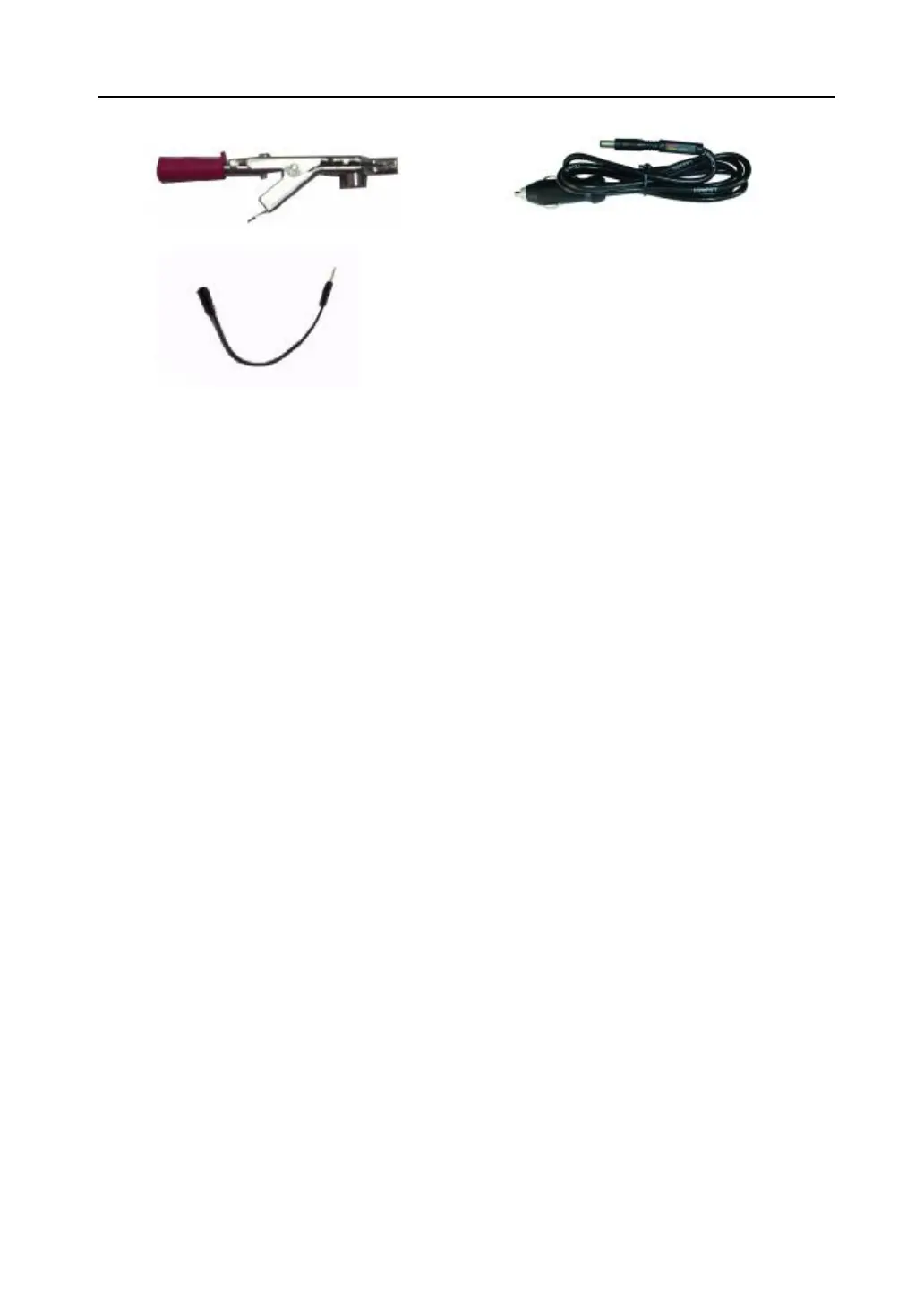

Fig.1-45 20MM crocodile clip（red） Fig.1-46 Cigar ligter power supply
Fig.1-47 Primary signal patch cord
Note:
The hardware is different as the different con figuration for each modle.
