LAUNCH X-431TOP User’s Manual

标贴字方向

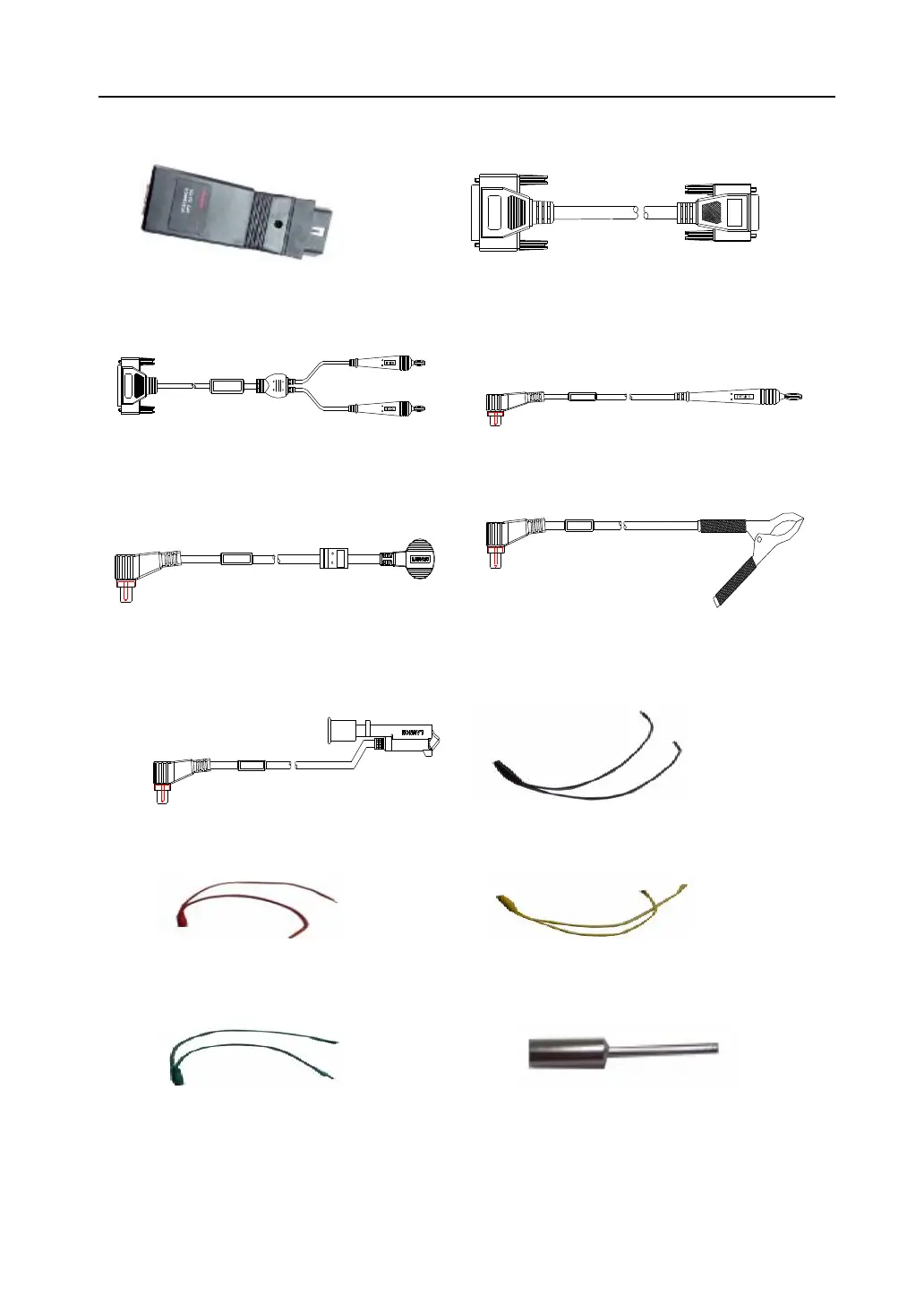

Fig.1-33 VOLVO CAN connector Fig.1-34 Diagnostic cable

标贴字方向

Fig.1-35 Sensor diagnostic cable Fig.1-36 Oscilloscope cable

标贴字方向

Fig.1-37 Secondary signal induction cable Fig.1-38 Oscillscope GND cable

标贴字方向

Fig.1-39Secondary signal cable Fig.1-40 Electricity control patch cord 1

Fig.1-41 Electricity control patch cord 2 Fig.1-42 Electricity control patch cord 3

Fig.1-43Electricity control patch cord 4 Fig.1-44 Oscilloscope probe

Launch X-431TOP - Page 12
