LCI SlimRack - Visual Inspection for Correct Slide-Out Fit; Checking Slide-Out Gap Tolerances; Applying Upper Wipe Seal Adhesive

31 pages

To Next Page

To Previous Page

Rev: 03.19.21 Page 18 CCD-0004319

⁄

" +/-

⁄

Fig. 20

Gear

Rack

Column

Visual Inspection for Tolerances

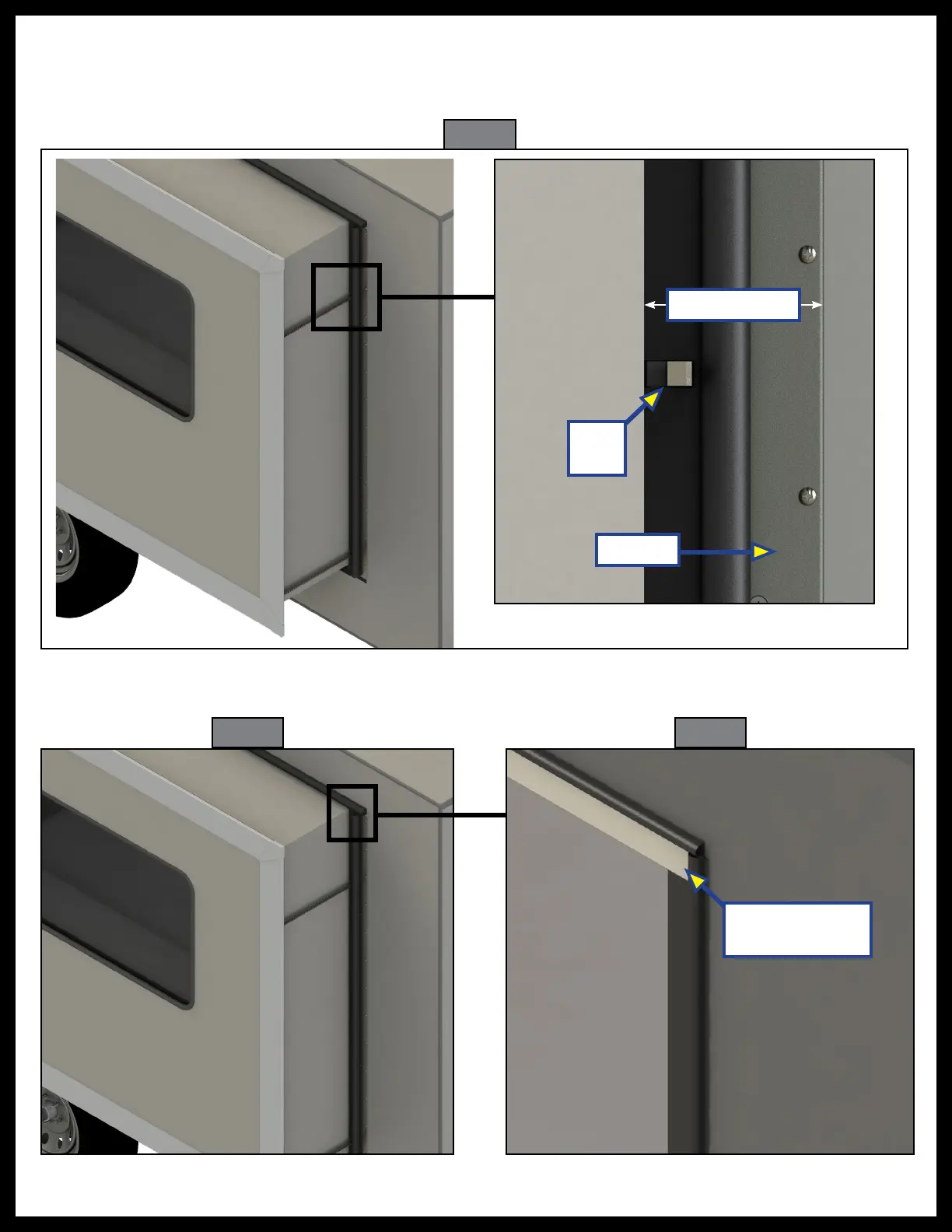

The SlimRack should be inspected to verify the correct location and tolerance (Fig. 20) of the slide-out gap

between the outside edge of the column and the slide-out end wall.

Fig. 21

Fig. 22

1. Apply glue to the back of the upper wipe seal and lay it over the top of the vertical wipe seal on the

column (Figs. 21 and Fig. 22).

Apply glue

behind this flap
