LCI SlimRack - Installation Resources and Component Identification; Required Tools and Materials for Installation; Overview of System Components

Rev: 03.19.21 Page 4 CCD-0004319
Component Descriptions
• Rocker switch that mounts to the wall.
• The auto-program controller has programmable stops. The set stops on the controller stop the motor when
the slide-out is fully extended or retracted and have the ability to detect faults for ease in troubleshooting.
• Vertical channel with 12V DC gear motor and gear rack arms that mount into the side wall opening and
slide-out.
• Harnesses to connect the rocker switch or touchpad and motors to controller.
• Floor rollers (not supplied by Lippert Components) that support the slide-out's weight while extending and
retracting the slide-out. Only floor rollers approved by Lippert Components can be used with the system.
Contact Lippert Components for recommended rollers.
0
500
1000
1500
2000
2500
3000
3500
4000
0 10 20 30 40
Total Room Weight (lbs)
Room Stroke (inches)

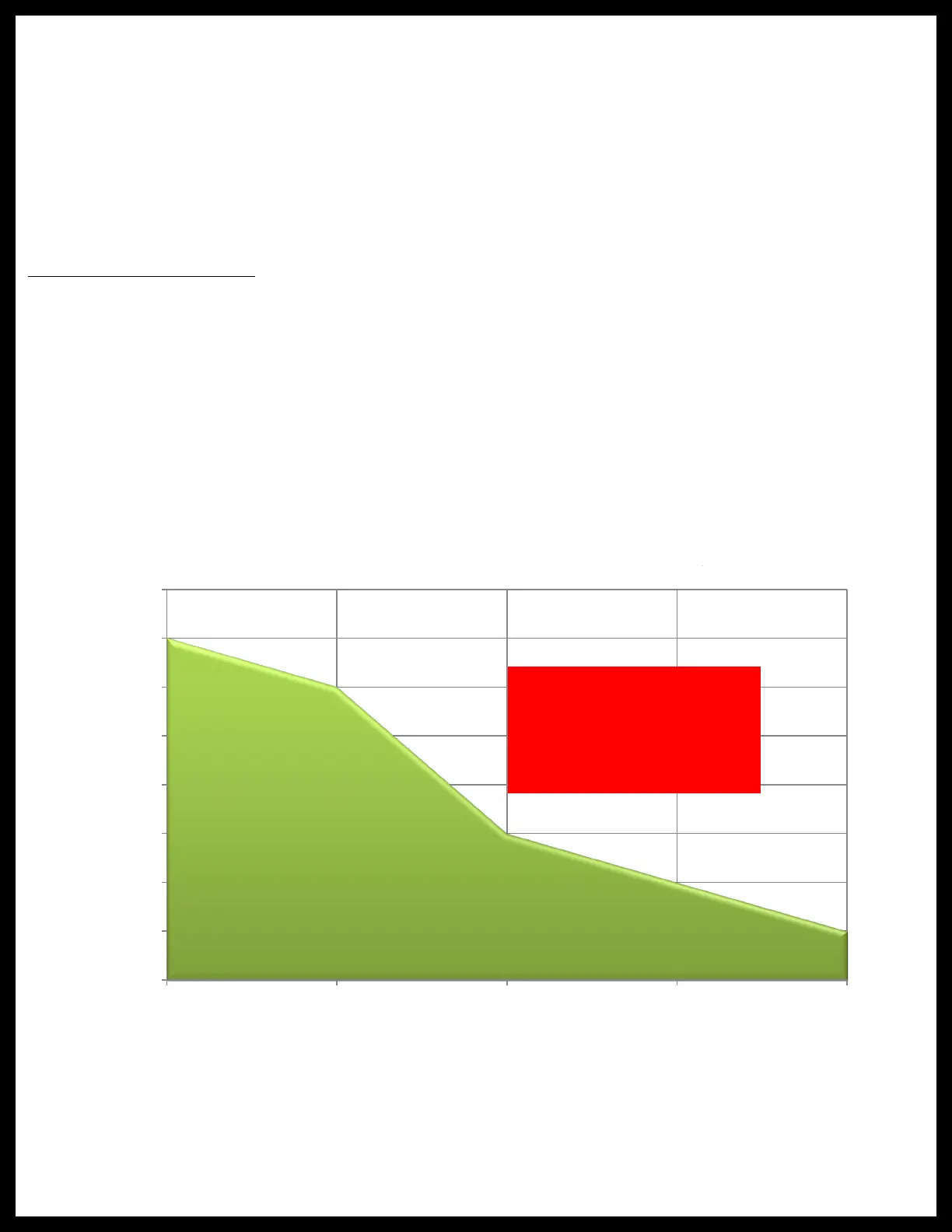

Power Gear Slim Rack In Wall Room Slide Rating Chart
Consult LCI
Engineering for
area above the line
System Rating
SlimRack Slide-out Room Slide Rating Chart
• 1-2 people, depending on task
• Electric or cordless drill or screw gun
• #25 Drill bit
• Assorted drill bits
• Torque wrench
• Ratchet or socket wrench
• 3" Extension for sockets
•
⁄
" Deep well socket
•
½
" 8-point star socket or 15mm 12-point star
socket
• Phillips head screwdriver
•
⁄
" Wrench
• #10 Button or pan head self-tapping screws
• Transit bars (slide-out locking bars)
• RTV silicone, rubber gaskets or closed-cell foam
gaskets
Resources Required
