Rev: 03.19.21 Page 5 CCD-0004319

In-Wall Slide-out Chassis Specification

Slide-Out Configurations

This section will show Lippert In-Wall slide system setups.

In-Wall Slide-Outs

For laminate trailers with rollers mounted to the floor (Fig. 1 and Fig. 2), one standard outrigger is to be

placed at the beginning and end of each slide room opening. A minimum of two slide outriggers will be

required under each slide room. Slide outriggers should be placed under the heaviest points of the room.

If the slide room is at least 144" a third slide outrigger will be required. Add an additional slide outrigger for

every 48" thereafter.

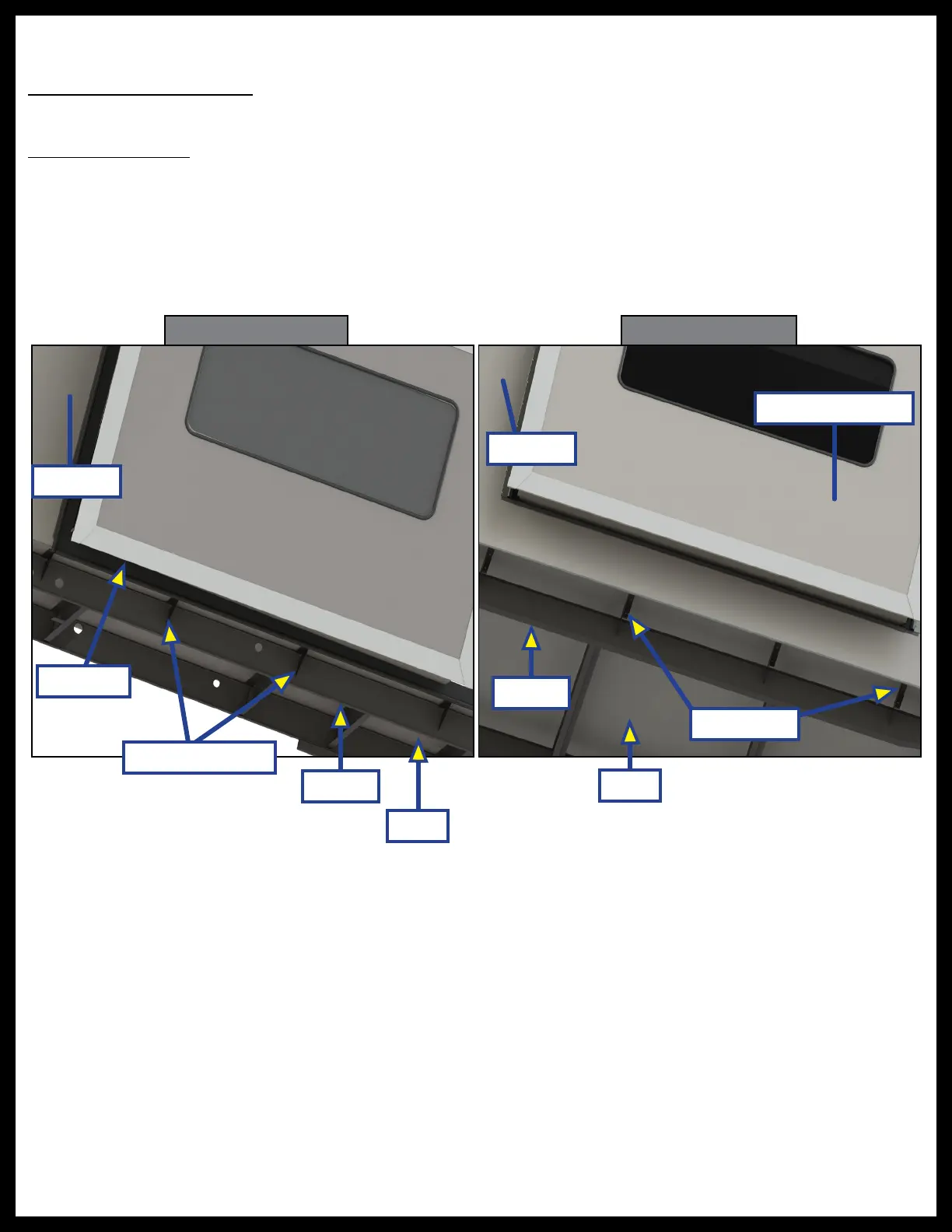

Fig. 1 - Cutout Floor Fig. 2 - Uncut Floor

Slide Outriggers

Floor

Sidewall

Outriggers

Slide-out

Sidewall

In-Wall Slide-Out

I-Beam
