Rev: 03.19.21 Page 9 CCD-0004319
1" x 3" (25.4mm
x 76.2mm) Tube
(See Wall Chart)
Support 1"x1"
(25.4mm x
25.4mm) Tube
Header Extends
2' (61cm)
Beyond Upright
Typ. Both Sides
Bottom Cross Tube
Support for Wheel Well
Wheel Well Area
1" x 3" (25.4mm x 76.2mm)Tube
1" x 3"
(25.4mm x
76.2mm)Tube
Support 1"x1" (25.4mm x 25.4mm) Tube
Slide Room Opening Bottom Section
The bottom tube in the slide room can be .040" (1mm) aluminum unless it falls into the wheel well or upper
deck area as explained in the "Upper Deck Slide Room Opening" section. This piece is typically removed
when installing the Lippert In-Wall slide, depending on how the side wall sets in relation to the floor
(Fig. 7). When the bottom support tube is left in place, it is because wall openings may fall into a wheel well
area that sets higher than the floor (Fig. 8). The bottom tube needs to be .060" (1.5mm) aluminum for travel
trailers and .070" (1.8mm) aluminum for fifth wheels only when a tube is needed for the wheel well area.
NOTE: If slide room is in wheel well area, the slide wall structure should start at least 6" above the bottom
of the rest of the wall (Fig. 8A). Slide outriggers will not be recommended in this case.
Floor
1" x 3"
(25.4mm x
76.2mm)Tube
Header Extends
2' (61cm)
Beyond Upright
Typ. Both Sides
Support 1"x1" (25.4mm x 25.4mm) Tube
Support 1"x1"
(25.4mm x
25.4mm) Tube
AA
Wall Structure
to Support
Rollers
36" (91.4cm)
36" (91.4cm)
1" x 3" (25.4mm
x 76.2mm) Tube
(See Wall Chart)

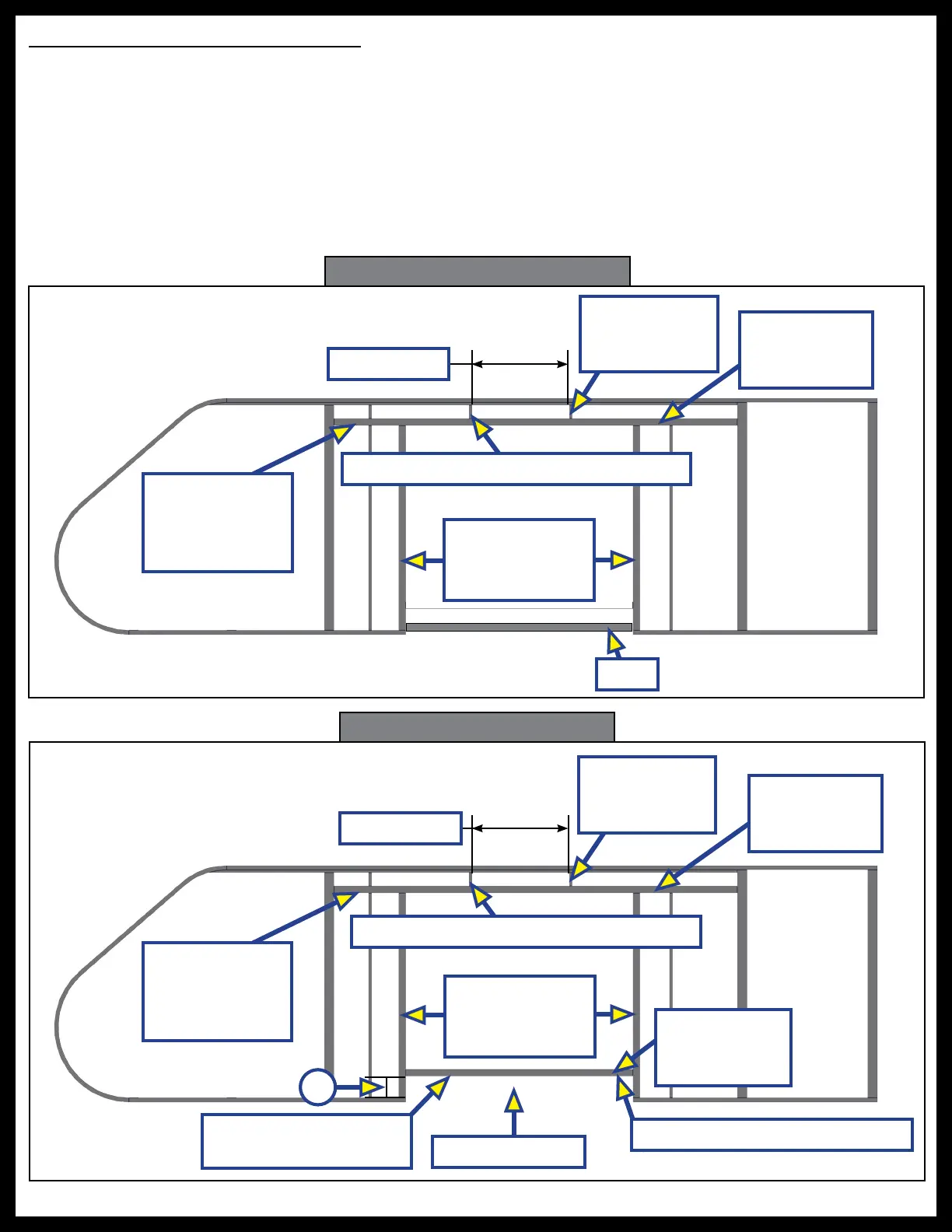

Fig. 7 -Slide Not in Wheel Well Area
Fig. 8 - Slide in Wheel Well Area
