LDARtools phx42 - Filling the phx42 with Hydrogen

UNCONTROLLED IF PRINTED 8

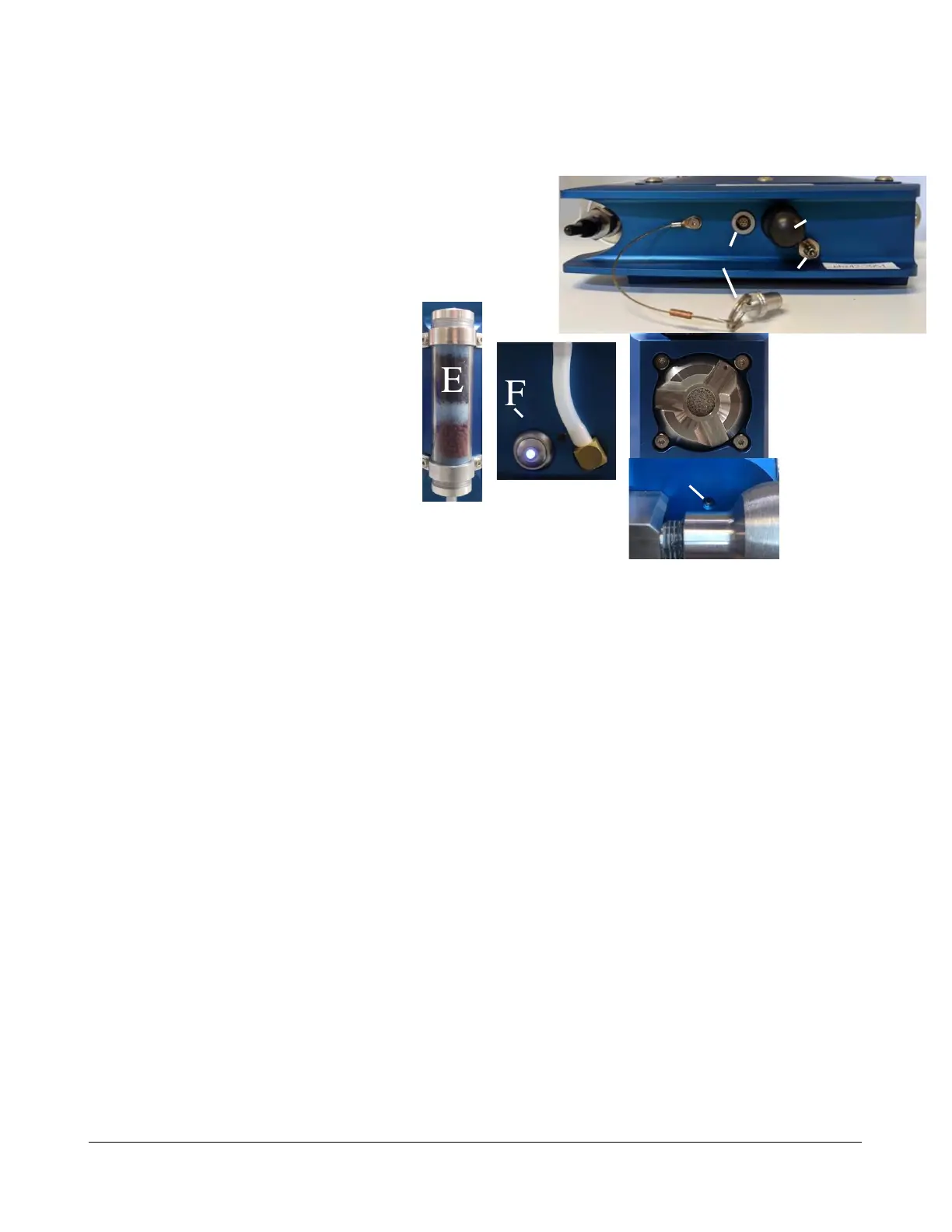

External Parts
⚫ The connection end (north end) contains the following:
A. H
2
fill port / H
2
Quick Fill
B. Charging port / Charging Port Cover, tether
C. Bluetooth® antenna
D. Probe port
⚫ Side panels contain the following:
E. Scrubber (west end)
F. Power button (west end)
G. The FID exhaust (east end)
H. Vent (east end)
(Flame Arrestor Cap assembly is located on the side of the enclosure)
• Reminder: Never remove the Flame Arrestor Cap unless instructed to by LDARtools
Technical Support within the context of a support case. Damage to the Glow Disk is
likely, if not certain.
⚫ The phx42 enclosure
o The enclosure is a two-part (cover and base) aluminum housing with a serial number on top.
It also has important manufacturer information and certification labeling at the bottom.
TECH TIP: The H
2
Quick Fill Cover and the Charging Port Cover must always be in place when working
in a hazardous location.
F
E
G
B
H
A
B
C
D
