Calibration

PHOTON

System Guide 31

…

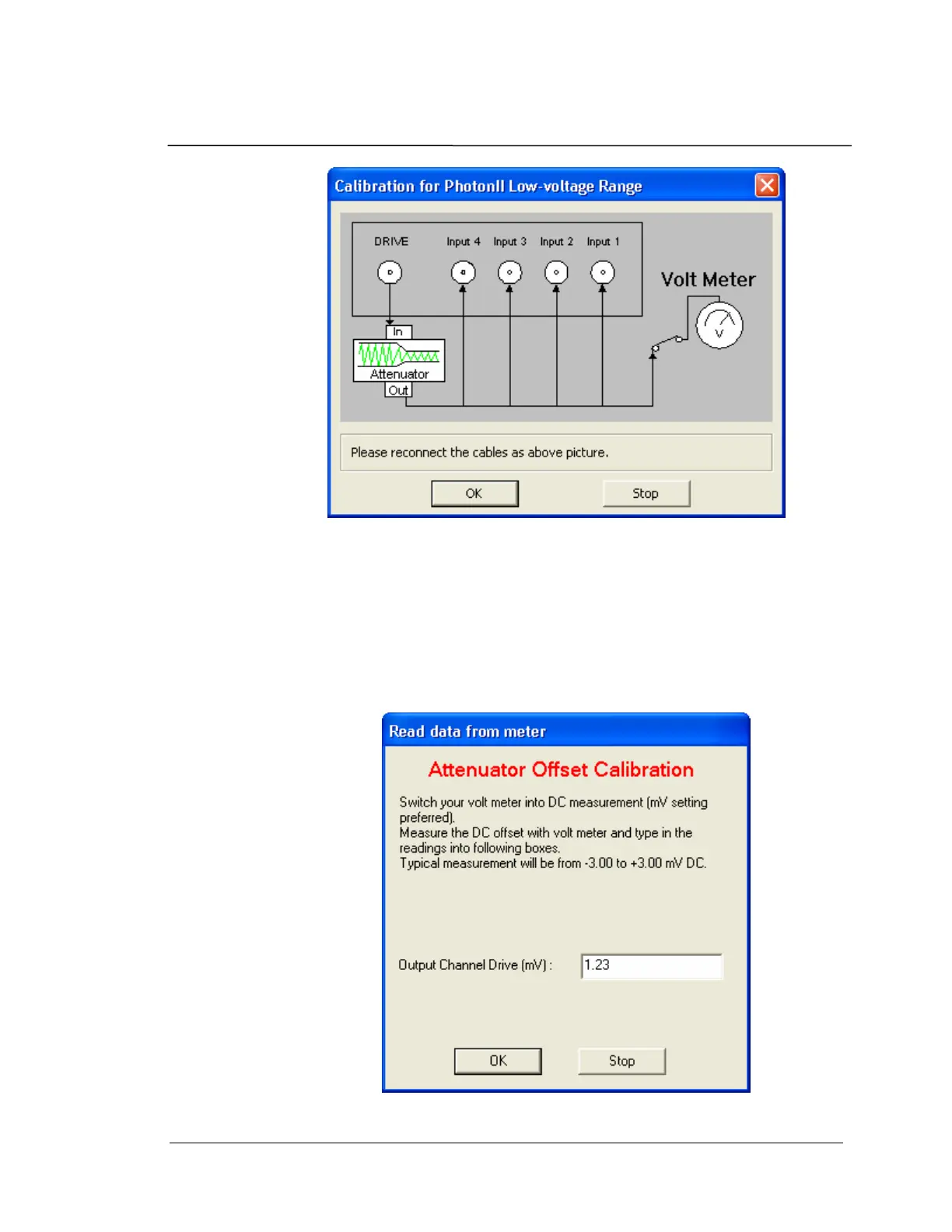

Cable Connection for Low-voltage Range Calibration

The dialog boxes below ask for a measurement and entry of the DC and

AC reading from the meter. These measurements will be used for the

Output Channel calibration so that the low voltage Input Channel

calibration is provided with an accurately calibrated signal source.

DC Measurement for Low-voltage Range Offset Calibration
