14. Status Display

14-19

14.5.3 Format ID Display Explanation

The format ID packet is an ancillary packet for identifying the video signal format.

To display the format ID packet, follow the procedure below.

Procedure

STATUS → F•4 ANC PACKET → F•2 FORMAT ID

To select the format ID packet type, follow the procedure below.

Procedure

STATUS → F•4 ANC PACKET → F•2 FORMAT ID → F•1 PACKET SELECT

Settings

SMPTE: The format ID packet specified by SMPTE 352M is displayed.

ARIB: The format ID packet specified by ARIB STD-B39 is displayed. This is the

default setting.

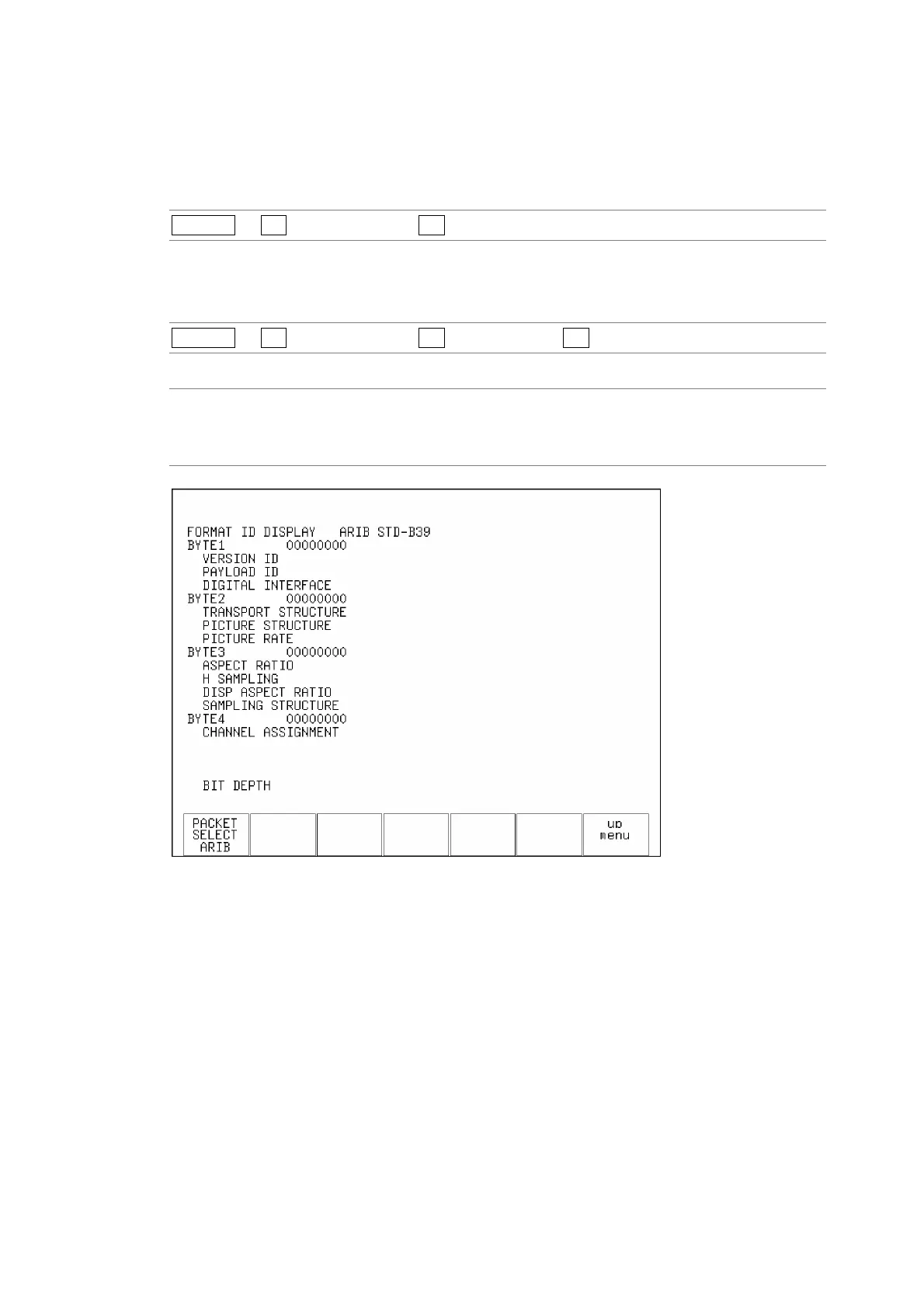

Figure 14-11 Format ID display (ARIB)
