9.6.2 Loading a User-Defined Correction Table into the LV 5330
You can load up to five user-defined correction tables into the LV 5330.
To load a user-defined correction table into the LV 5330, follow the procedure below.

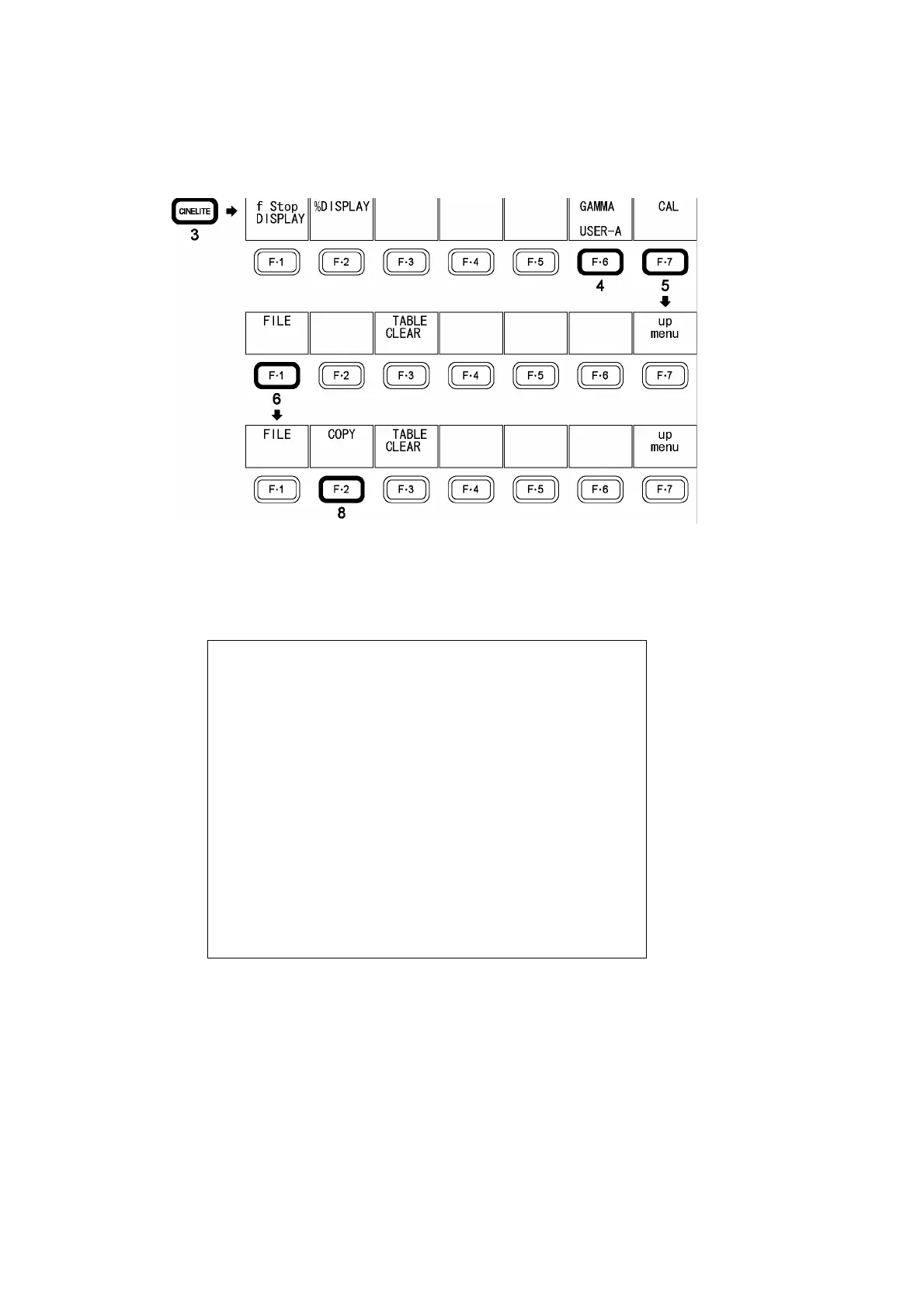

Figure 9-11 Loading user-defined correction tables
1. Create a user-defined correction table.
Example (TEST.CLT):
#################################
NAME:SAMPLE_1
TYPE:0
#Input –7% 0
# 109% 4095
#Output 0% 0
# 1000% 65535
#Input Output
#################################
0 0
1 16
2 32
(Omitted)
4093 65488
4094 65504
4095 65520
# EOF
················ Comment
················ Keyword
················ Keyword
················ Comment
················ Comment
················ Comment
················ Comment
················ Comment
················ Comment
················ Data
················ Data
················ Data
················ Data
················ Data
················ Data
················ Comment
