Leadshine ES-D508 - ES-D808;D1008 DIP Switch Settings

Hardware Installation Manual of Easy Servo
12
HWMN
-
E
S
-
R201
30312
ES-D808/D1008

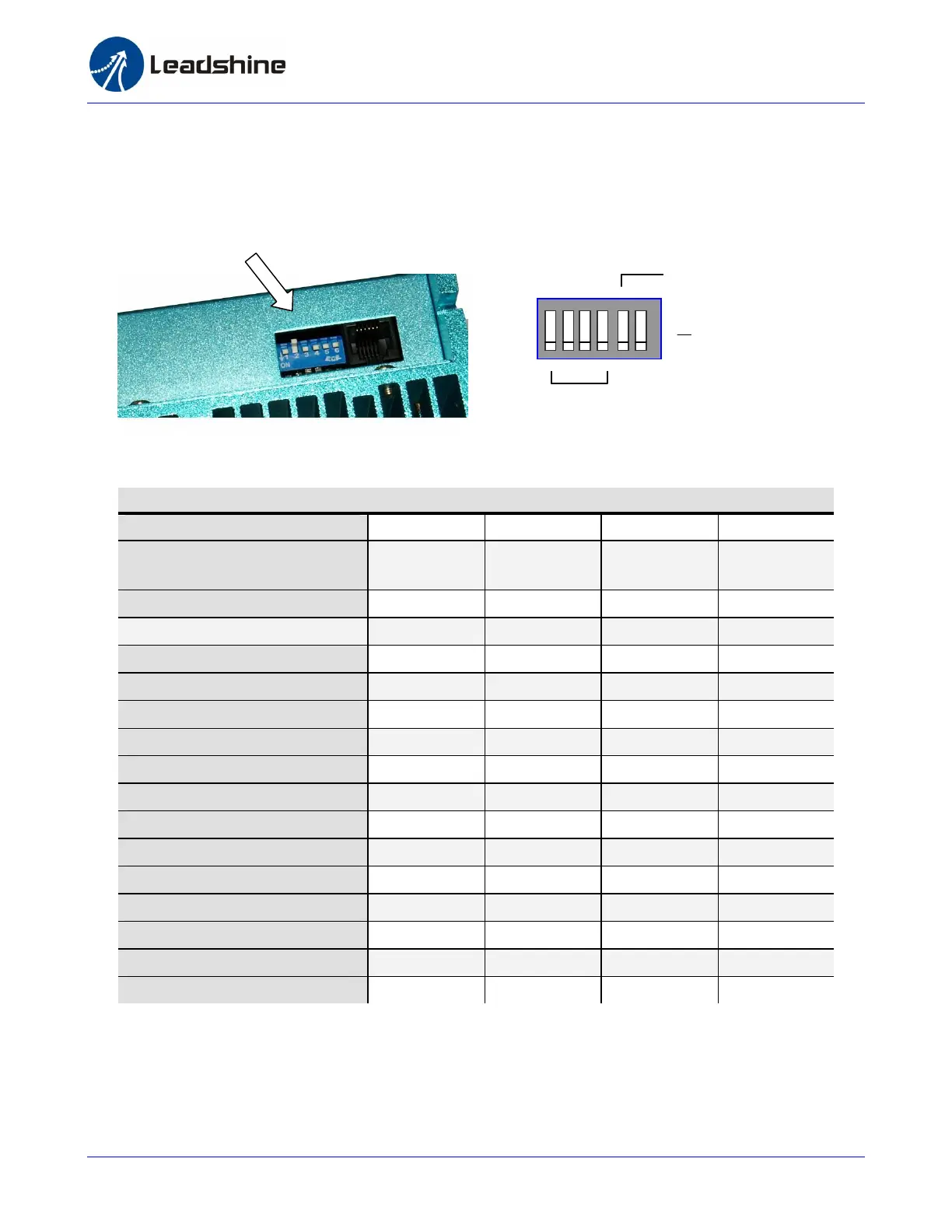

There is a 6-bit DIP switch in the ES-D808 and ES-D1008 drive. SW1 to SW4 are used to set the micro
step resolution and SW5 are used to set the direction polarity.
ES-D808 and ES-D1008 Micro Step Resolution Setting
Steps/Revolution SW1 SW2 SW3 SW4
Software Configured
(Default 200)
on on on on
800
off on on on
1600 (Factory Setting)
on off on on
3200
off off on on
6400
on on off on
12800
off on off on
25600
on off off on
51200
off off off on
1000
on on on off
2000
off on on off
4000
on off on off
5000
off off on off
8000
on on off off
10000
off on off off
20000
on off off off
40000
off off off off
6-bit DIP Switches in ES-D808/ES-D1008
SW1-SW4
Microstep Resolution
SW5 is used to reverse
the motion direction.
SW6 has no function
