Connecting Power Supply (Continued)
ES-D1008
The ES-D1008 can accept both DC and AC power input. There is no power input polarity for it.

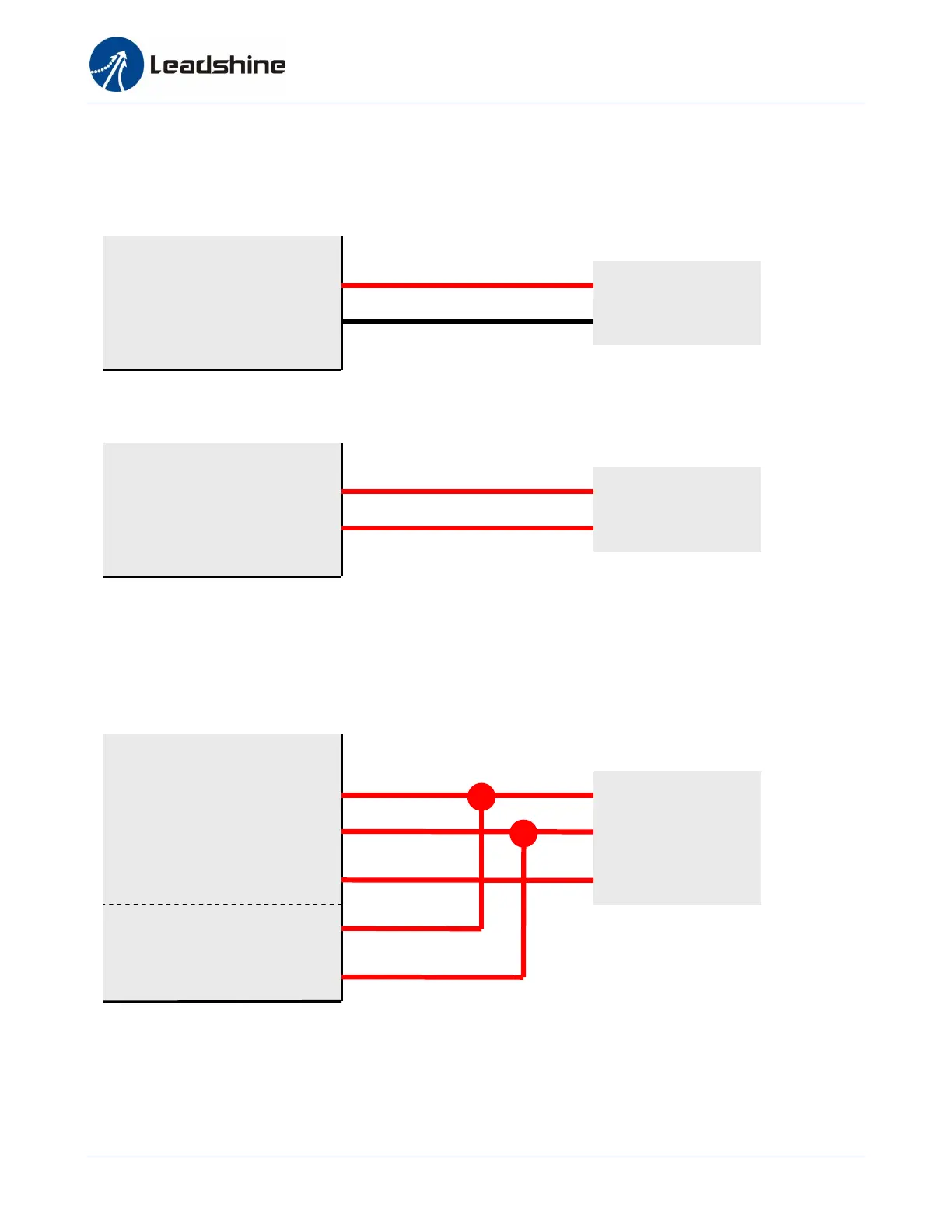

DC Power Connection of ES-D1008
AC Power Connection of ES-D1008
ES-D2306
The ES-D2306 requires two powers input as follows. The main power is used to energize the motor
and the control power is used for logic circuit. Typically they can share the same AC power.
AC Power Connection of ES-D2306
AC
AC
High Voltage
AC
AC
AC Power
20
-
70VAC
L
N
PE
Main Power
L
N
PE
Control
Power
L
N
AC Power
150
-
230VAC
AC
AC
High Voltage
DC Power
30
-
100VDC
+ (Positive)
-
(Negative)
