Leadshine ES-DH1208 - Recommended Supply Voltage; Control Signal Setup Timing

Hardware installation manual of the ES-DH series drives
18
Recommended Supply Voltage
Both Leadshine’s regulated and unregulated power supply has been designed specially for motion
control.
Motor Drive Voltage Range Typical Voltage
ES-MH23480 ES-DH1208 AC(70-130)V AC 110/120V
ES-MH234120 ES-DH1208 AC(70-130)V AC 110/120V
ES-MH33480 ES-DH2306 AC(150-230)V AC 220/230V
ES-MH342120 ES-DH2306 AC(150-230)V AC 220/230V
ES-MH342200 ES-DH2306 AC(150-230)V AC 220/230V

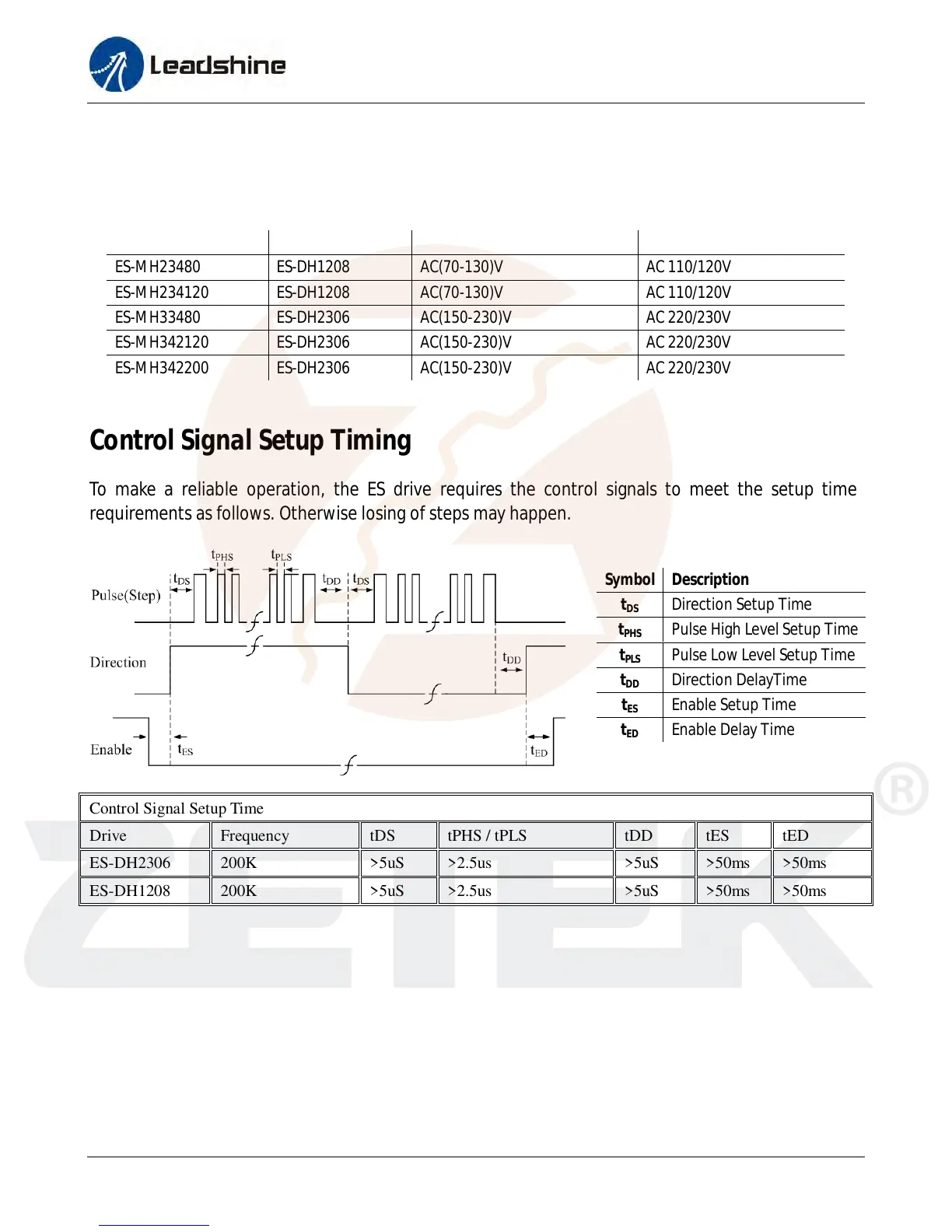

Control Signal Setup Timing
To make a reliable operation, the ES drive requires the control signals to meet the setup time
requirements as follows. Otherwise losing of steps may happen.
Control Signal Setup Time
Drive Frequency tDS tPHS / tPLS tDD tES tED
ES-DH2306 200K >5uS >2.5us >5uS >50ms >50ms
ES-DH1208 200K >5uS >2.5us >5uS >50ms >50ms
Symbol Description
t
DS
Direction Setup Time
t
PHS
Pulse High Level Setup Time
t
PLS
Pulse Low Level Setup Time
t
DD
Direction DelayTime
t
ES
Enable Setup Time
t
ED
Enable Delay Time
