Connecting Motor
ES-DH1208 and the ES-MH2 series motor
The ES-DH1208 is designed for 2-phase stepper motor with encoder feedback. It can work with
Leadshine ES-MH2 series motor which has the A+, A-, B+ and B- lead. Just connect these leads to the
corresponding terminals of the ES-DH1208 as follows.

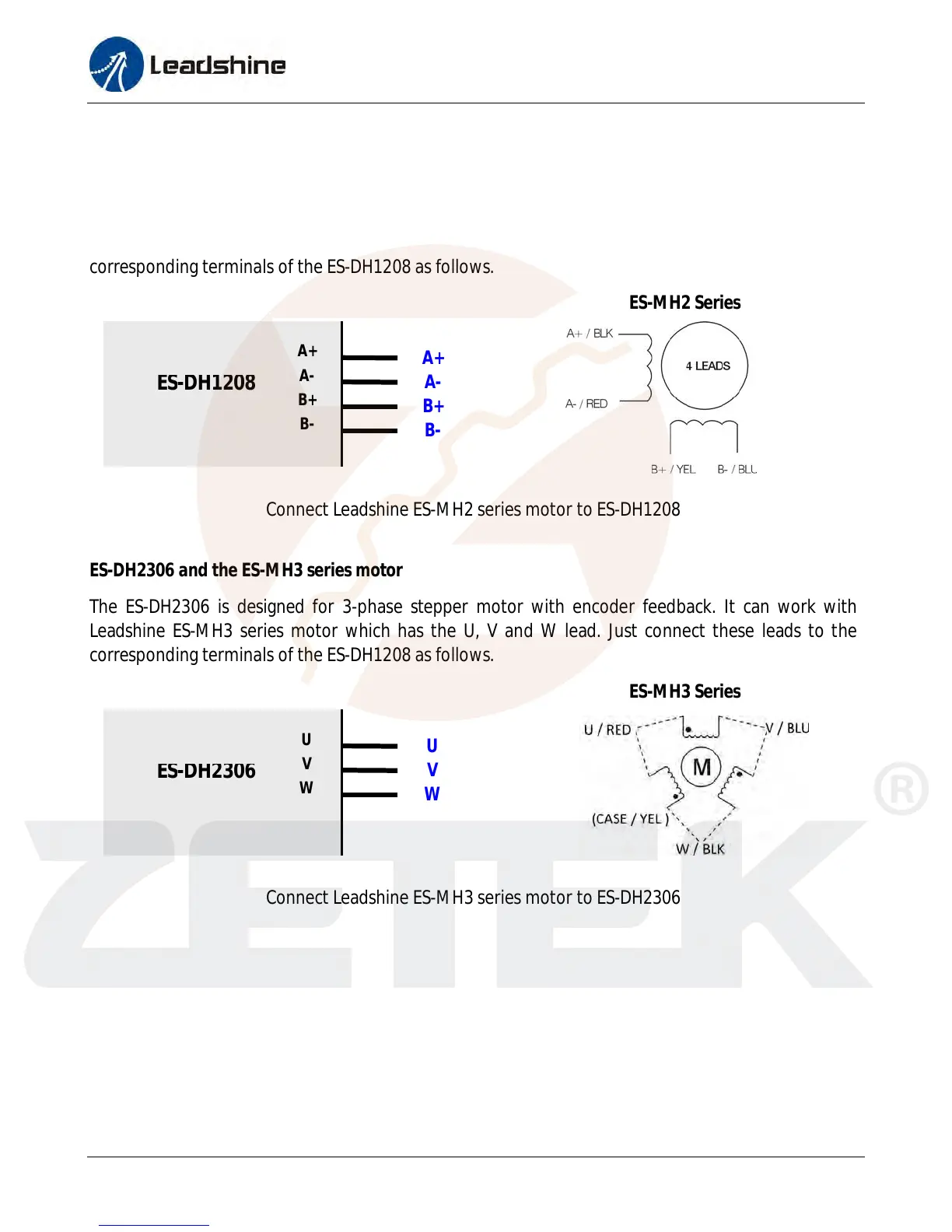

Connect Leadshine ES-MH2 series motor to ES-DH1208
ES-DH2306 and the ES-MH3 series motor
The ES-DH2306 is designed for 3-phase stepper motor with encoder feedback. It can work with
Leadshine ES-MH3 series motor which has the U, V and W lead. Just connect these leads to the
corresponding terminals of the ES-DH1208 as follows.
Connect Leadshine ES-MH3 series motor to ES-DH2306
U
V
W
E
S
-
D
H2306
U
V
W
ES
-
MH3 Series
A+
A-
B+
B-
E
S
-
D
H1208
A+
A-
B+
B-
ES
-
MH2 Series
