Connecting Power Supply
ES-DH1208
The power of the ES-DH1208 can be connected as follows.

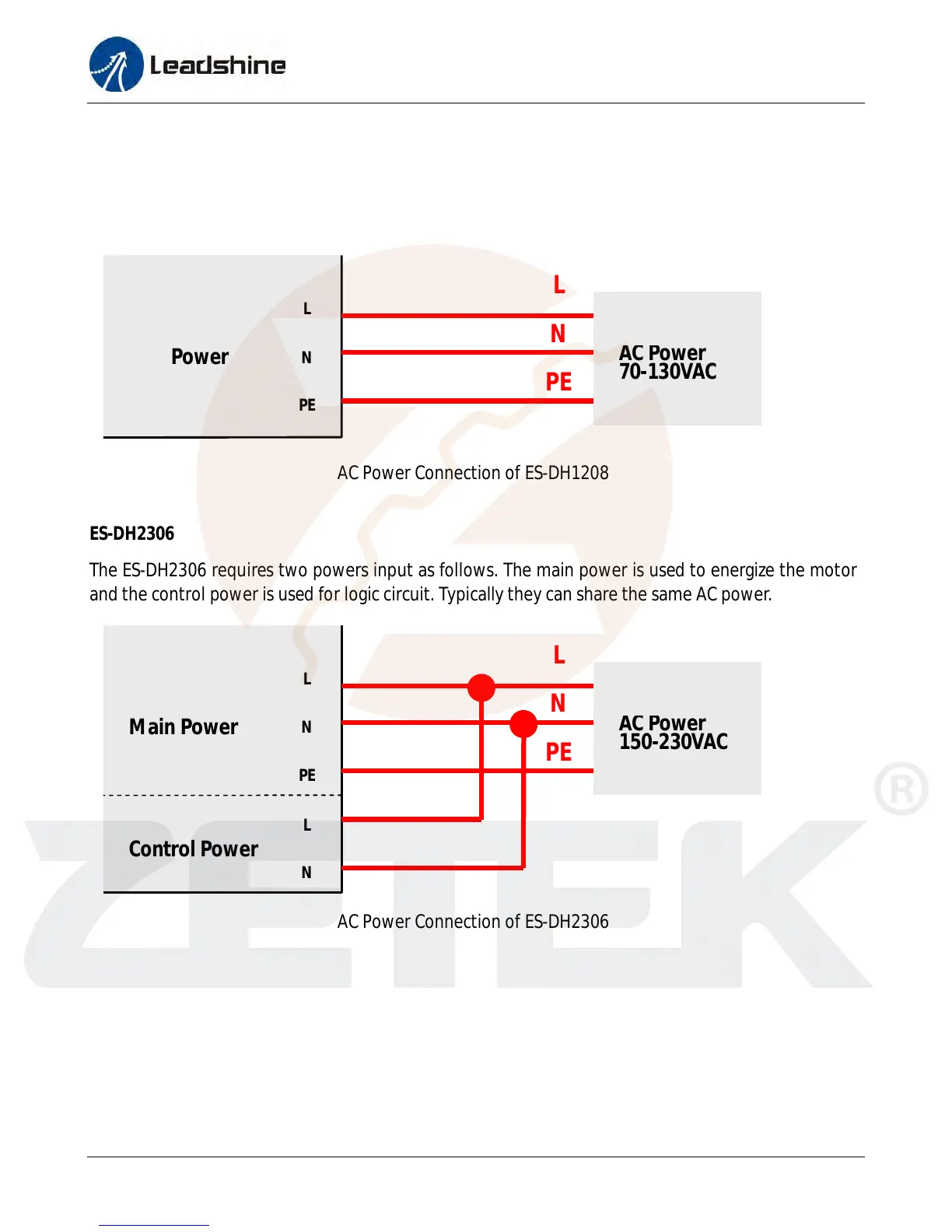

AC Power Connection of ES-DH1208
ES-DH2306
The ES-DH2306 requires two powers input as follows. The main power is used to energize the motor
and the control power is used for logic circuit. Typically they can share the same AC power.
AC Power Connection of ES-DH2306
L
N
PE
Power
L
N
PE
AC Power
70
-
130VAC
L
N
PE
Main Power
L
N
PE
Control Power
L
N
AC Power
150
-
230VAC
