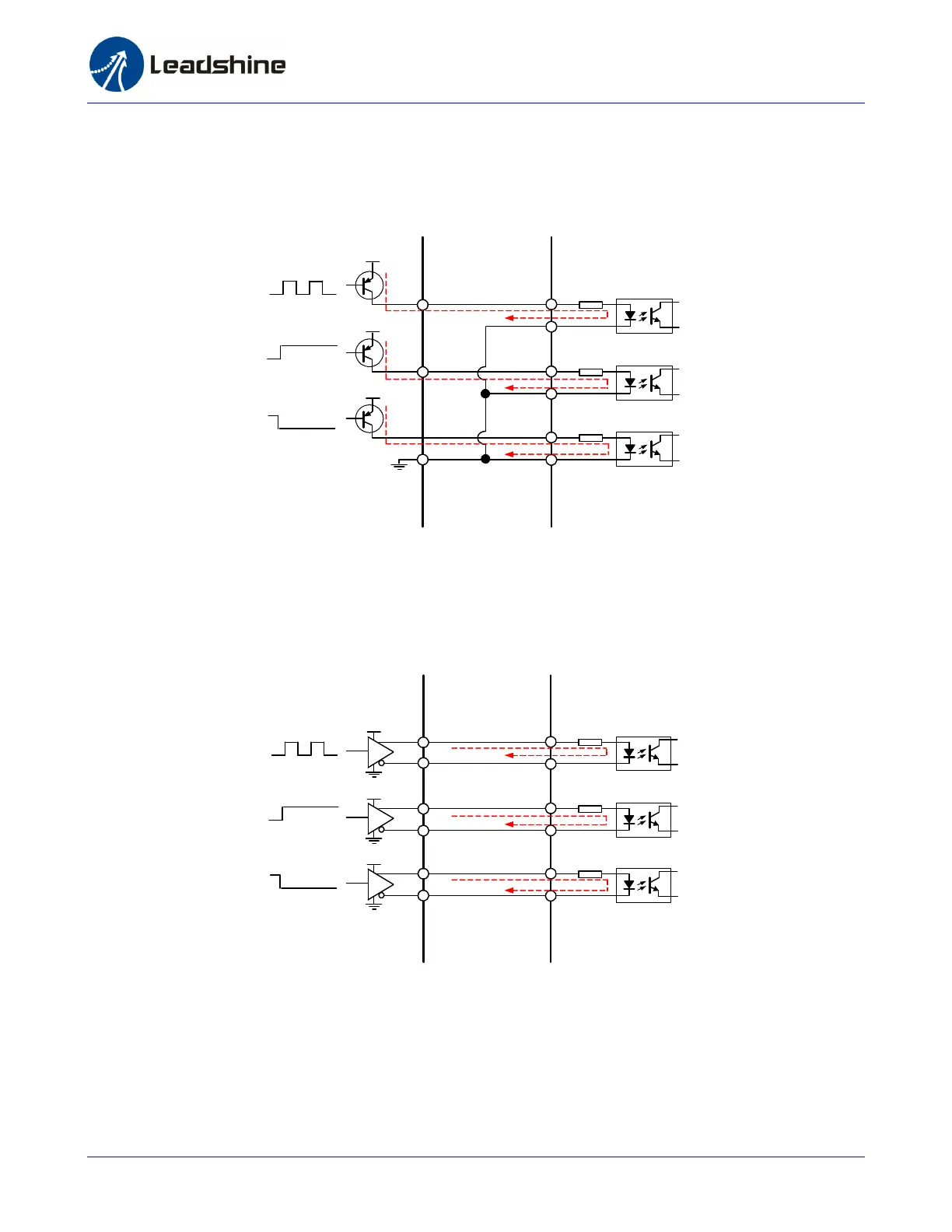

PNP (Sourcing) Control Signal Wiring
In this wiring, Pulse, Direction and Enable signal share the same ground (negative) terminal.
Drive
PUL+
DIR+
PUL-
DIR-
Pulses
ENA+
ENA-
Direction
Enable
VCC = 5-24V
Controller
VCC
VCC
VCC
Differential Control Signal Wiring
For the differential output controller, connect to the HBS drive accordingly.
Drive
PUL+
DIR+
PUL-
DIR-
Pulses
ENA+
ENA-
Direction
Enable
VCC = 5-24V
Controller
VCC
VCC
VCC
