Leadshine HBS86H - Faults alarm and LED flickerfrequency

-14-
8000
on
on
off
off
10000
off
on
off
off
20000
on
off
off
off
40000
off
off
off
off

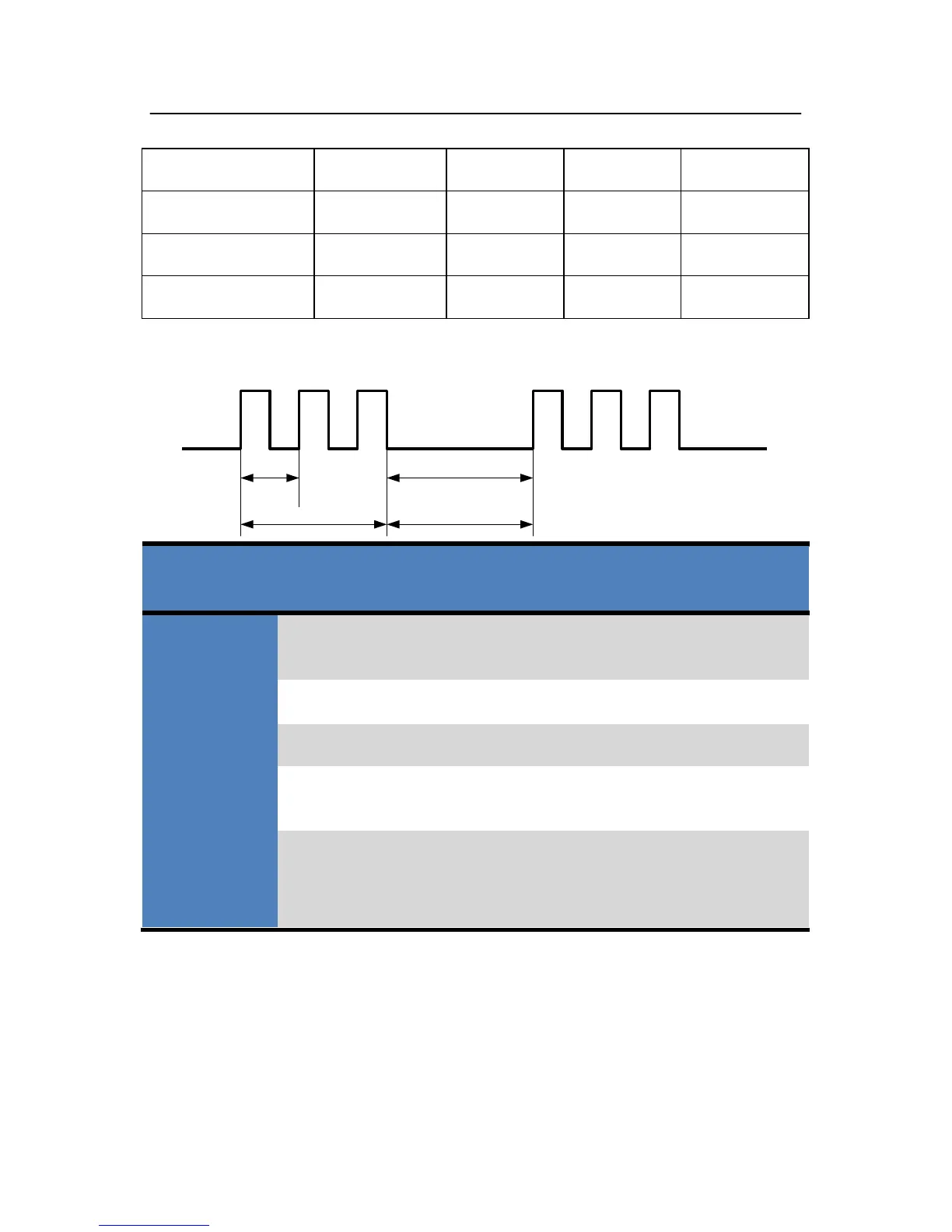

7. Faults alarm and LED flickerfrequency
Flicker
Frequency
Description to the Faults
1
Error occurs when the motor coil current exceeds
the drive’s current limit.
2
Voltage reference error in the drive
3
Parameters upload error in the drive
4
Error occurs when the input voltage exceeds the
drive’s voltage limit.
5
Error occurs when the actual position following
error exceeds the limit which is set by the position
error limit.
0.8s
2s
Red Alarm LED Flash
Time Interval
