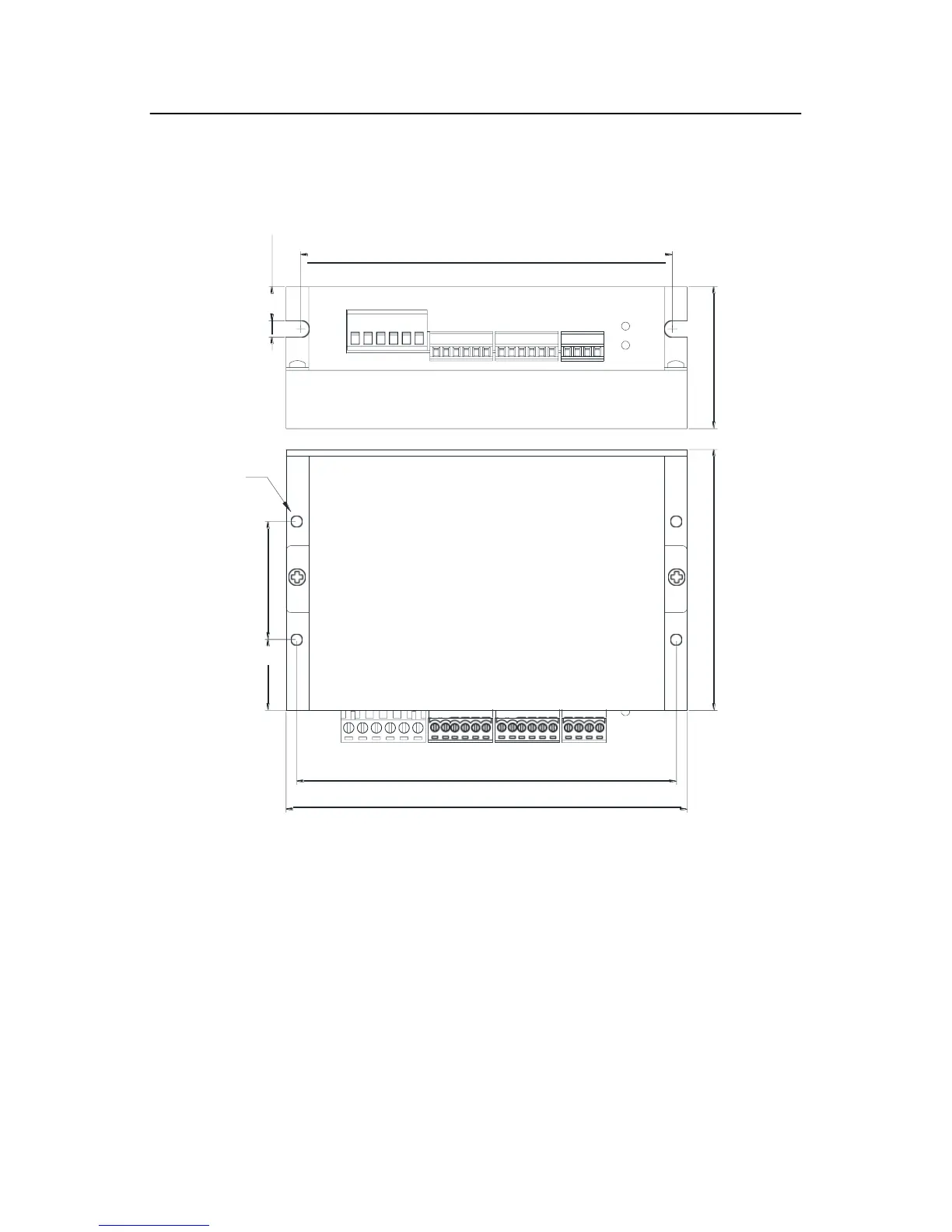

8. Appearance and InstallationDimensions
9. Typical Connection
This drive can provide the encoder with a power supply of +5v,
maximum current 80mA. It adopts a quadruplicated-frequency counting
method, and the resolution ratio of the encoder multiply 4 are the pulses
per rotate of the servo motor. Here is the typical connection of
44
142
612.8
53
4*￠
4
Hybrid Step Servo
142
150
26. 5
97.5
