Colour 5.6” handsfree indoor handset

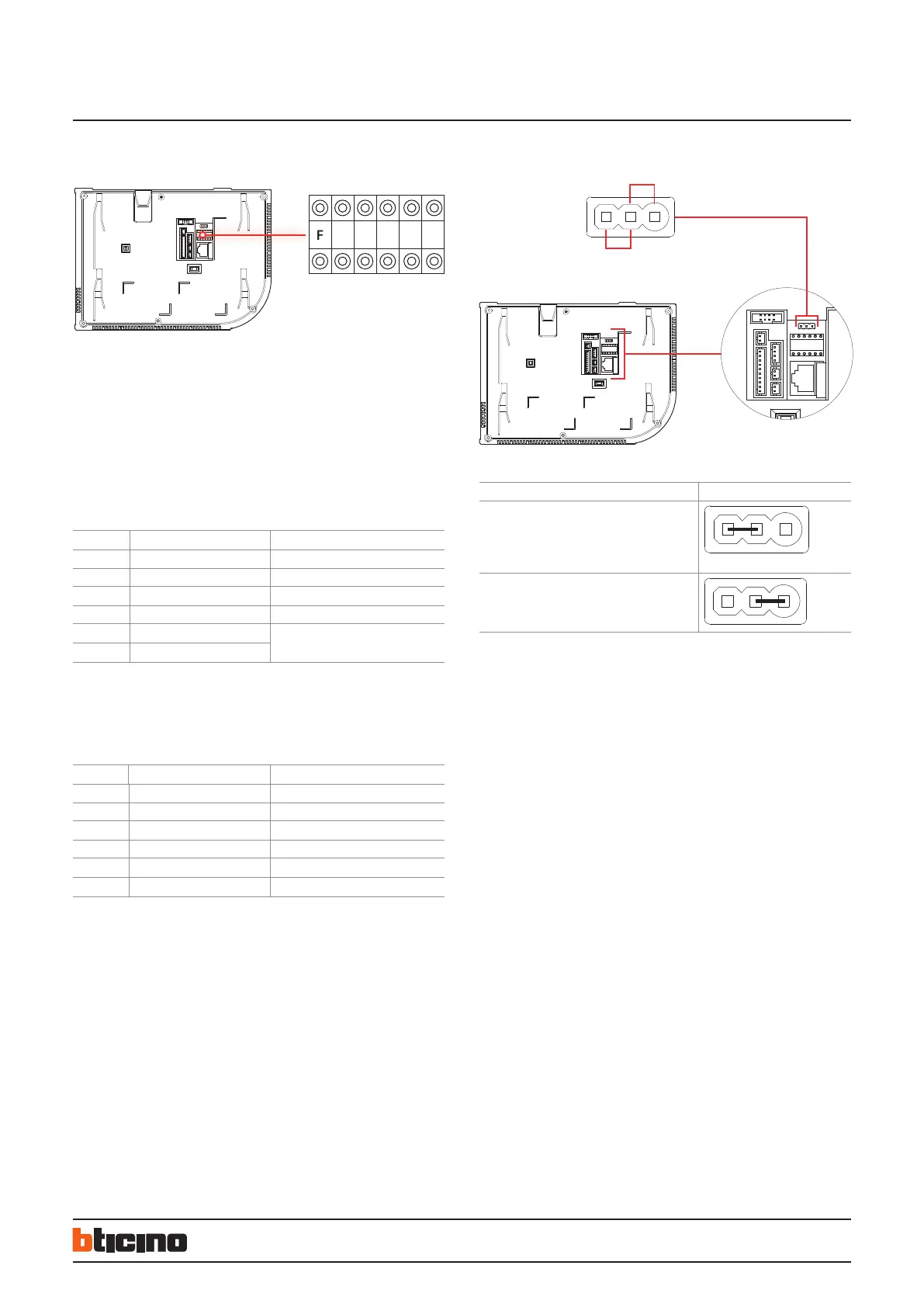

Configuration settings by inserting phisical configurators - WAY 2: Master and Slave settings
Configuration examples:
Example (A):
The number of handsets is 1204, each floor has 4 handsets, the system configuration
mode is Mode 1, the handset configuration should be as follows:
Example (B):
The number of handsets is 1206, each floor has 8 handsets. System configuration mode
2 is used. The handset configuration should be as follows:
FF : Floor number
II : Apartment number
#II : Maximum apartments quantity per floor in a riser
POSITION CONFIGURATION VALUE REMARKS
F 1
F 2
I 0 It is ok not to insert congurator 0
I 4
#I Because the default value of #II is 4, no
congurator is needed
#I
POSITION
VALUE REMARKS
F 1
F 2
I 0 It is ok not to insert congurator 0
I 6
#I 0 It is ok not to insert congurator 0
#I 8
Slave
Master
SET THE MASTER AND SLAVE HANDSETS METHODS
Set as the master handset
Or not jump
Set as the slave handset
BT00468-b-EN 15/05/2013
