LEGRAND D45 SYSTEM User Manual

323010
C D
Backbone
323001
Switchboard
323005
D C A
323002
handset
handset
handset
handset
To Riser to
next floor shunt
To Riser from previous
floor shunt
on
off

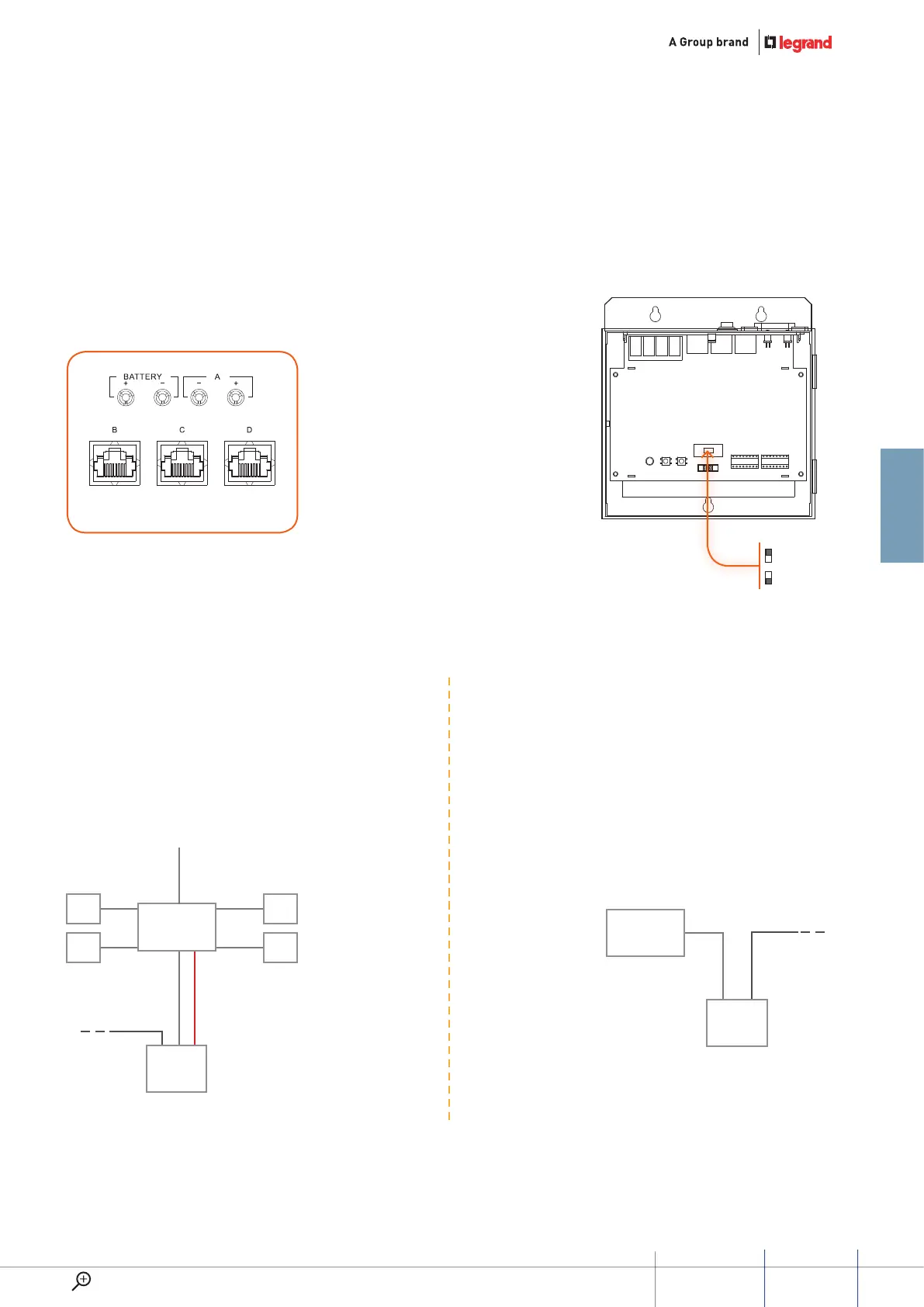

1. 323010 doesn’t have and
impedance setting switch, and
can only be used as auxiliary
power supply.
2. if using 323005 as auxiliary
power supply, the impedance
setting switch of 323005 must
be switched to off as per the
following drawing:
1) the connection of the auxiliary
power supply inside the riser:
2) When there is a Switchboard in
the system, the Switchboard will get
power from the BUS system auxiliary
power supply. Connection should be
as per the following drawing:
connecTor for
323005 and 323010
Connector for 323005 and 323010
(Set PWS as additional power
supply) or 323010
Auxiliary
Power supply 323010
61
GUIDED45 SyStEm
WWW.LEGRAND.COM
