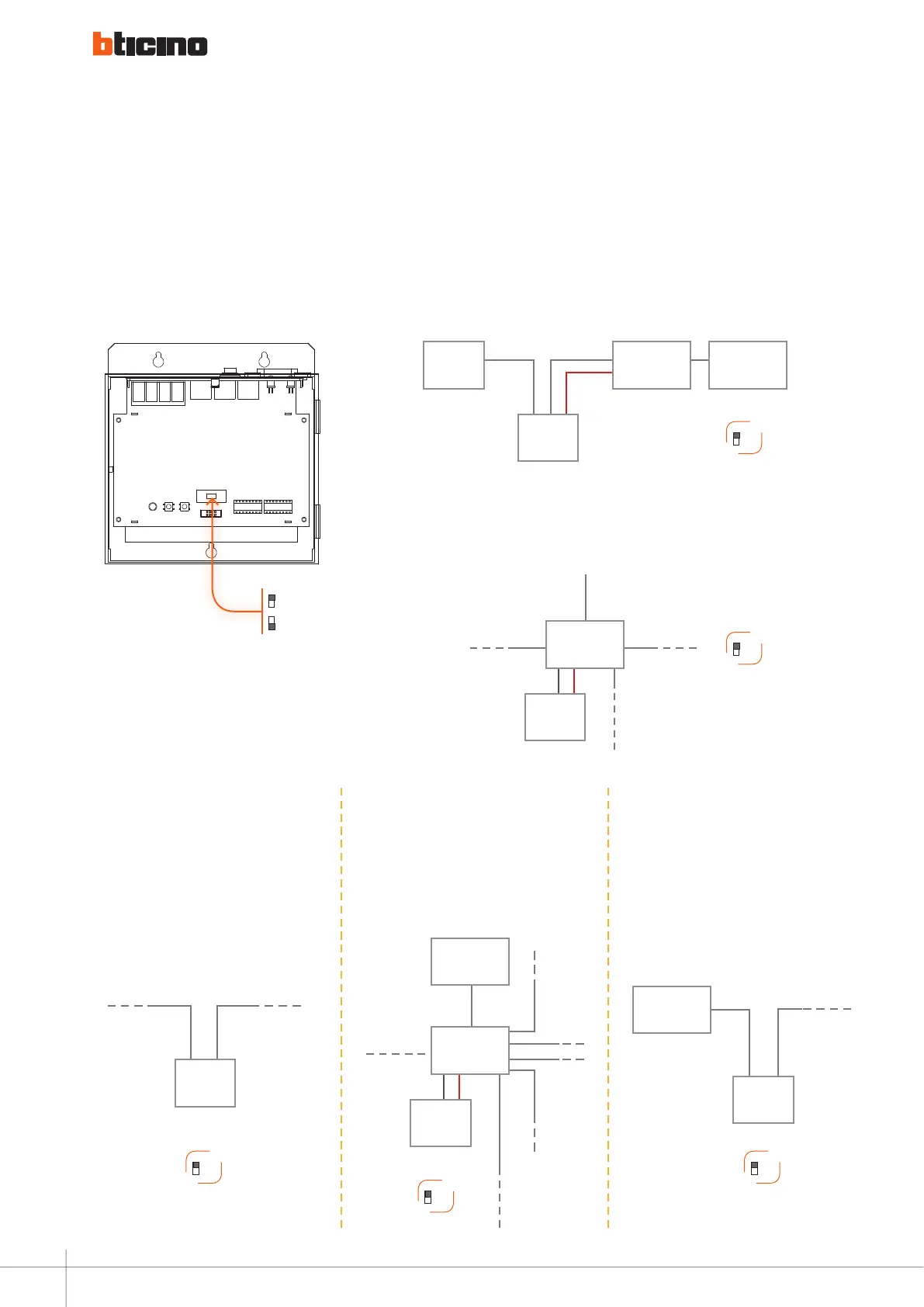

GENERAL RULES FOR INSTALLATION
1) When there is no riser shunt in the system, the system power supply should
be connected and set as following drawing:
2) When there is riser shunt in the system, the system power supply should be
connected and set as following drawing:
Impedance switch
on
off
Power supply
323005
4) When there is no 323013 on
the system BUS, the system
power supply on the BUS should
be connected and set as per the
following drawing:
5) When there is a Switchboard in the
system, 323001 will get power from
system BUS power supply.
The system BUS power supply should
be connected and set as per the
following drawing:
3) When there is no 323013 on
the system BUS, the system
power supply on the BUS should
be connected and set as per the
following drawing:
Power supply installation rules
