LEGRAND D45 SYSTEM User Manual

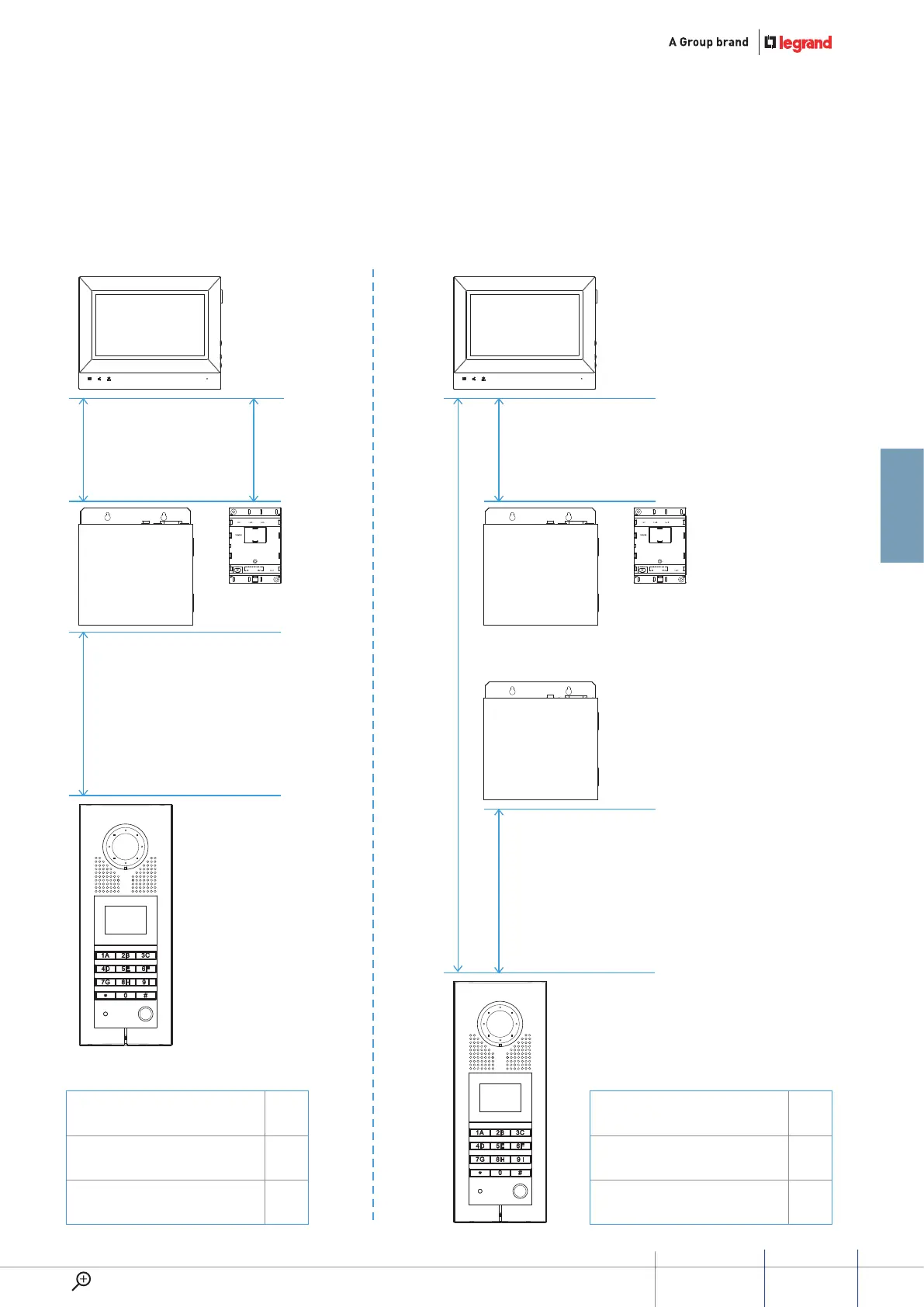

colour sysTem - single riser
LINE A
Furthest
internal unit
Floor shunt
323002
Main power
supply - 323005
LINE B
LINE C
Entrance
panel
Max. distance line A
Furthest internal unit - Power supply
50 m
Max. distance line B
Internal unit - Floor shunt
50 m
Max. distance line C
Power supply - Entrance panel
70 m
LINE A
Furthest
internal unit
Additional power supply of
floor shunt 323010
LINE C
Entrance
panel
LINE B
Floor shunt
323002
Power supply
323005
Max. distance line A
Furthest internal unit - Entrance panel
1 Km
Max. distance line B
Internal unit - Power suplly of Floor shunt
50 m
Max. distance line C
Power supply - Entrance panel
70 m
69
GUIDED45 SyStEm
WWW.LEGRAND.COM
