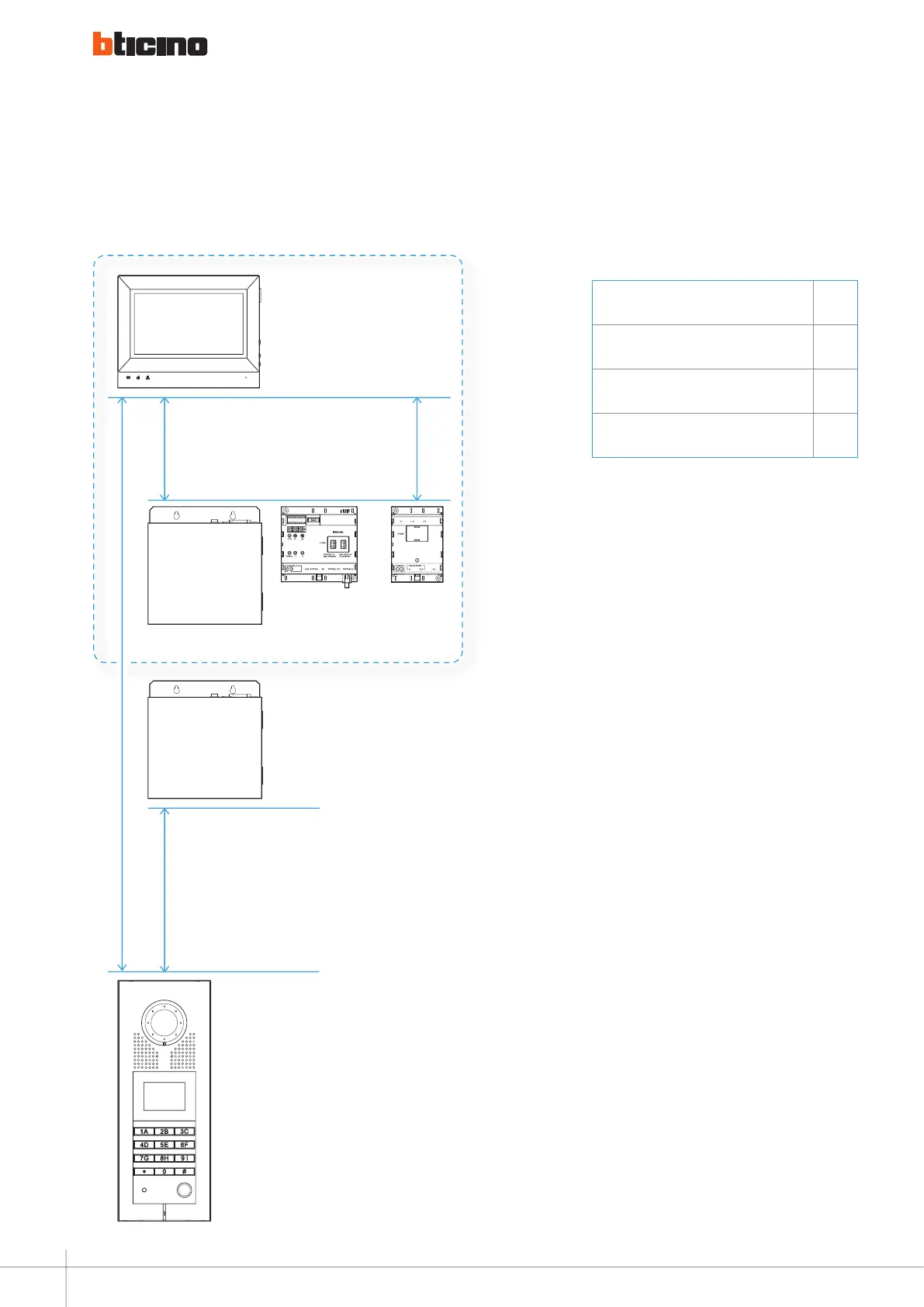

colour sysTem - mulTiple risers
Max. distance line A
Furthest internal unit - Entrance panel
1 Km
Max. distance line B
Furthest internal unit - Riser main Power supply
50 m
Max. distance line C
Internal unit - Floor shunt
50 m
Max. distance line D
Entrance panel - Power supply
70 m
ON
SD
1
2
3
4
ON
SD
1
2
3
4
LINE A
Furthest
internal unit
Floor shunt
323002
Riser shunt
323003
LINE B LINE D
Entrance
panel
LINE C
Riser main power suplply
323005
Main power supply
323005
GENERAL RULES FOR INSTALLATION
70
