LEGRAND D45 SYSTEM User Manual

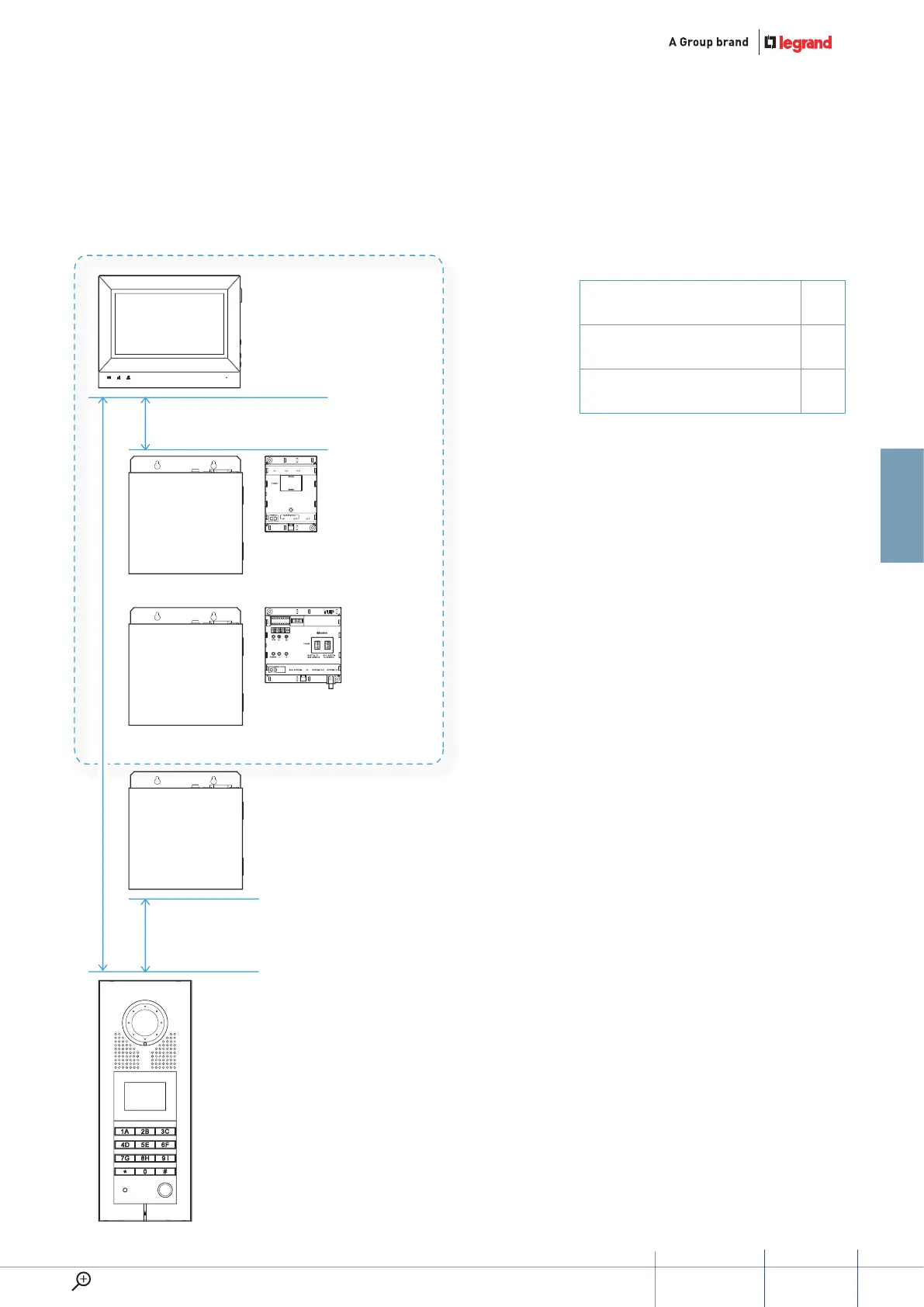

colour sysTem - mulTiple risers
Max. distance line A
Furthest internal unit - Entrance panel
1 Km
Max. distance line B
Internal unit - Power supply of Flor shunt
50 m
Max. distance line C
Entrance panel - Power supply
70 m
ON
SD
1
2
3
4
ON
SD
1
2
3
4
LINE B
LINE A
LINE C
Main power supply
323005
Floor shunt
323002
Riser shunt
323003
Additional power supply of
floor shunt 323010
Riser main power suplply
323005
Furthest
internal unit
Entrance
panel
71
