LEGRAND DMX3 1600

86
DMX
3

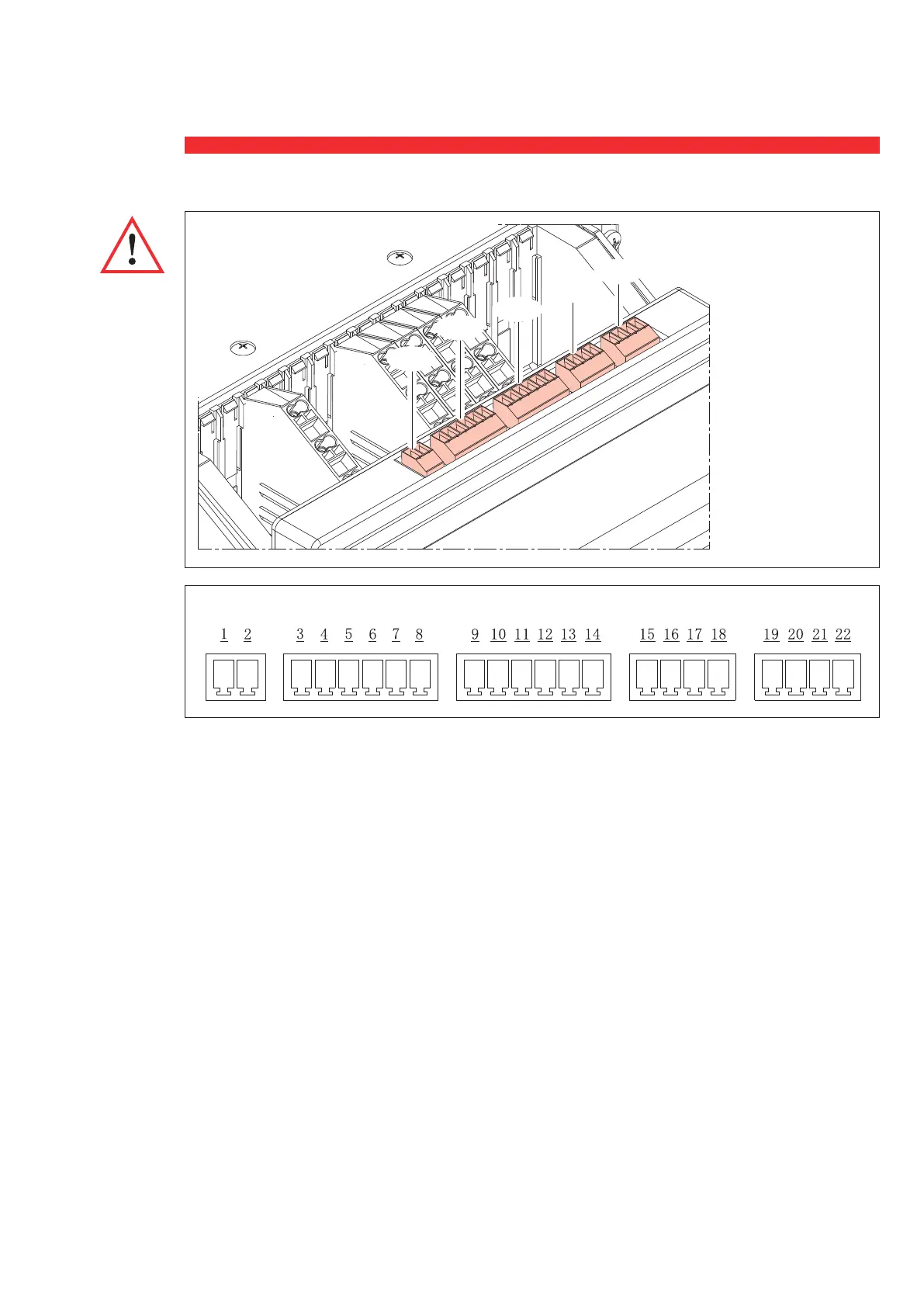

Only for draw-
out version:
cable the
breaker in
completely
draw-out
position.
1 / 2 - Auxiliary power supply (H1-H2)
3 / 4 / 5 / 6 / 7 / 8 - External Neutral (Sensor)
9 / 10 - Programmable contact Relay 1 (W1-W2); MAX AC230V-5A; DC110V-0,5A
11 / 12 - Programmable contact Relay 2 (W3-W4); MAX AC230V-5A; DC110V-0,5A
13 / 14 - Not available
15 / 16 / 17 - Supervision serial port RS485 (H5-H6-H7)
18 - Not available
19 / 20 - SEL-IN (H11-12)
21 / 22 - SEL-OUT (H15-H16)
0 281 72
0 281 71
0 281 99
0 281 70
SEL
0 281 72
0 281 71
0 281 99
0 281 70
SEL
