CS10/CS15 & GS Sensors, Operation
50
4.5 LED Indicators on CS10/CS15
LED indicators Description
The CS field controller has Light Emitting Diode indicators. They indicate the basic field
controller status.

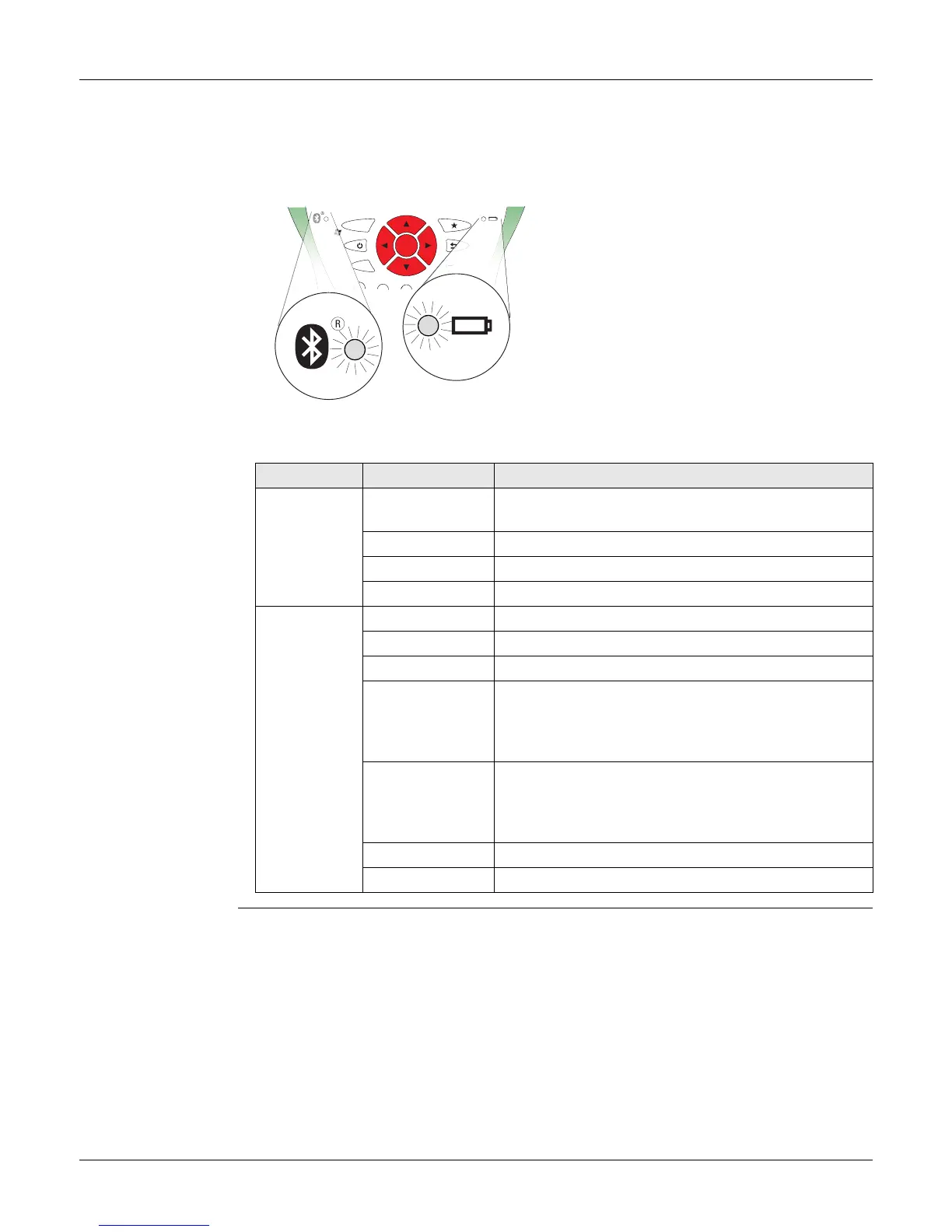

Diagram
Description of the LEDs
a) Bluetooth LED
b) Power LED
IF the is THEN
Bluetooth
LED
green Bluetooth is in data mode and ready for connecting.
purple Bluetooth is connecting.
blue Bluetooth has connected.
flashing blue data is being transferred
Power LED off power is off.
green power is okay.
flashing green power is okay. The battery is being charged.
yellow power is low. The remaining time for which enough
power is available depends on the use of wireless
modules, the temperature and the age of the
battery.
flashing yellow power is low. The remaining time for which enough
power is available depends on the use of wireless
modules, the temperature and the age of the
battery. The battery is being charged.
red power is very low. The battery should be changed.
flashing red power is very low. The battery is being charged.
