CS10/CS15 & GS Sensors, Pin Assignments and Sockets
72
A.2 GS08plus
Description Some applications require knowledge of the pin assignments for the instrument ports.
In this chapter, the pin assignments and sockets for the instrument ports are
explained.

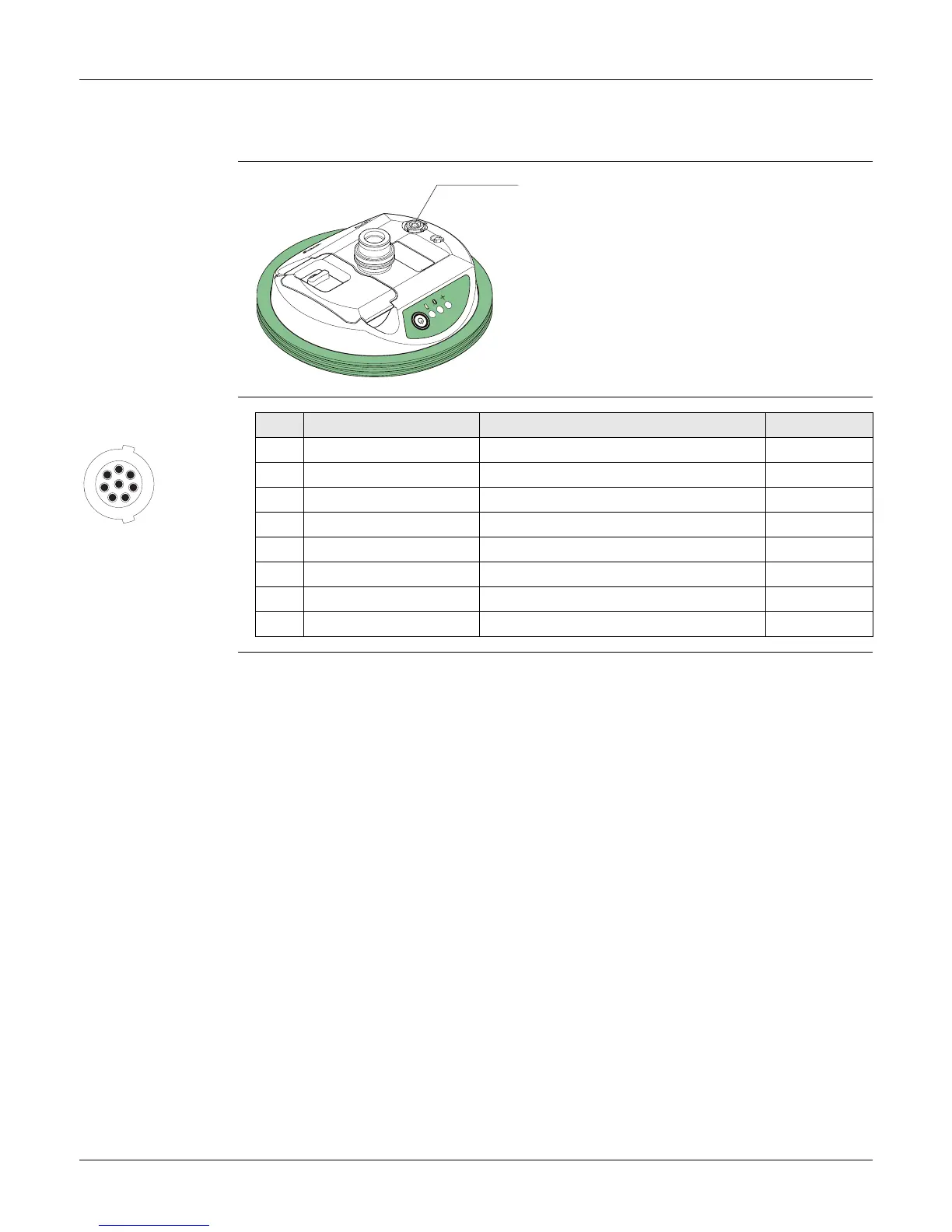

Ports at the
instrument
underside
Pin assignments for
8pin LEMO-1
a) Lemo port (USB and serial)
002491_002
a
1
7
6
8
5
4
3
2
PIN_001
Pin Signal Name Function Direction
1 USB_D+ USB data line In or out
2 USB_D- USB data line In or out
3GND Signal ground -
4 RxD RS232, receive data In
5 TxD RS232, transmit data Out
6 ID Identification pin In or out
7 PWR Power input, 10.5V-28V In
8 TRM_ON/USB_ID RS232, general purpose signal In or out
