CS10/CS15 & GS Sensors, Operation
52

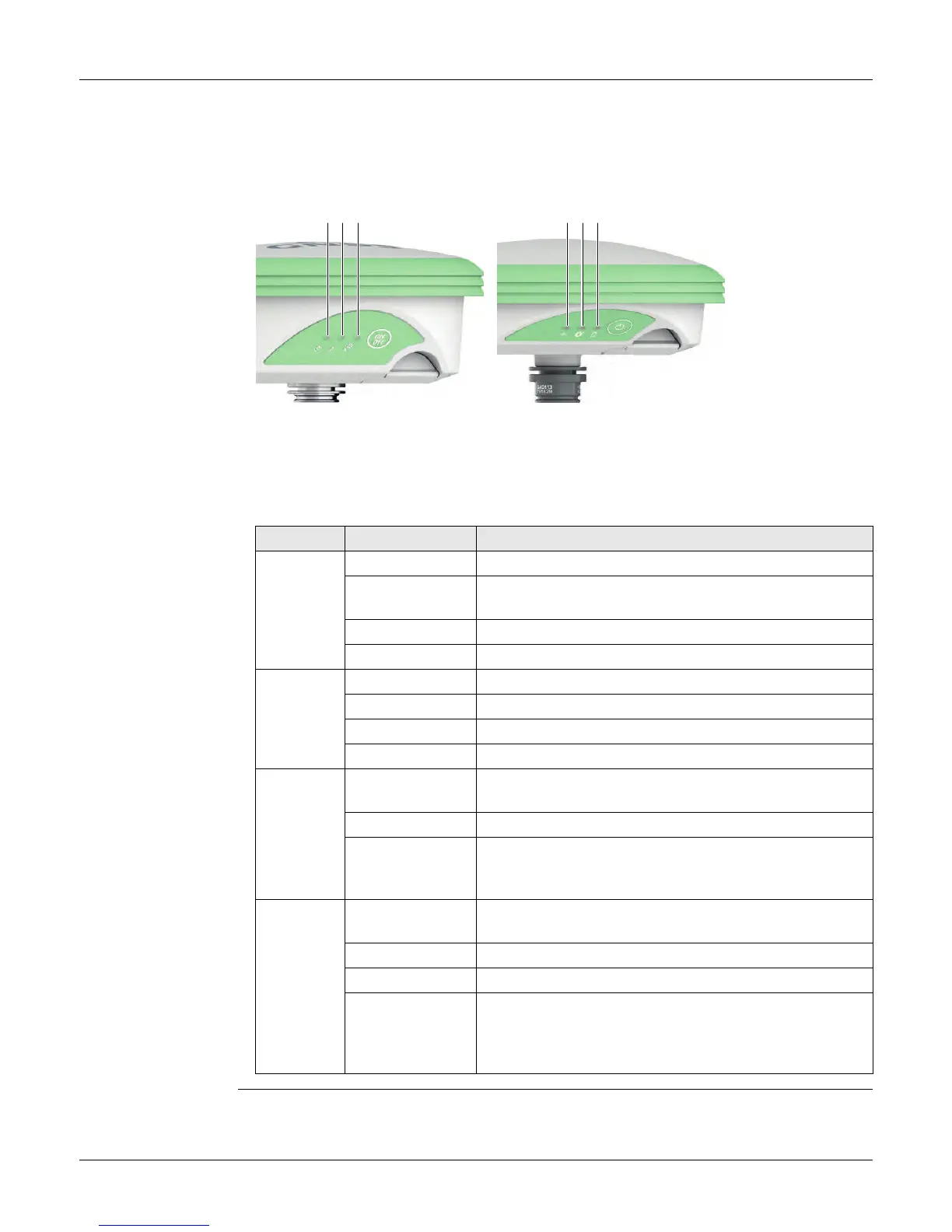

4.7 LED Indicators on GS08plus/GS12
LED indicators Description
The GS08plus/GS12 instrument has Light Emitting Diode indicators. They indicate the
basic instrument status.
Diagram
Description of the LEDs
a) Tracking LED (TRK)
b) Bluetooth LED (BT)
c) Power LED (PWR)
IF the is THEN
TRK LED off No satellites are tracked.
flashing green Less than four satellites are tracked, a position is not
yet available.
green Enough satellites are tracked to compute a position.
red GS08plus/GS12 instrument is initialising.
BT LED green Bluetooth is in data mode and ready for connecting.
purple Bluetooth is connecting.
blue Bluetooth has connected.
flashing blue Data is being transferred.
GS12 PWR
LED
off Power is off.
green Power is okay.
flashing green Power is low. The remaining time for which enough
power is available depends on the type of survey, the
temperature and the age of the battery.
GS08plus
PWR LED
off Power is off.
green Power is 100% - 20%.
red Power is 20% - 5%.
flashing red Power is low (<5%).
The remaining time for which enough power is avail-
able depends on the type of survey, the temperature
and the age of the battery.
005021_001
