Electrical System Operation
NOTICE
When the Inverter remote fault light (2) is on
and the display (3) shows “Dead Battery”,
check to see if the battery disconnect switch
(6) is ON.
6
Inverter Remote Control Panel

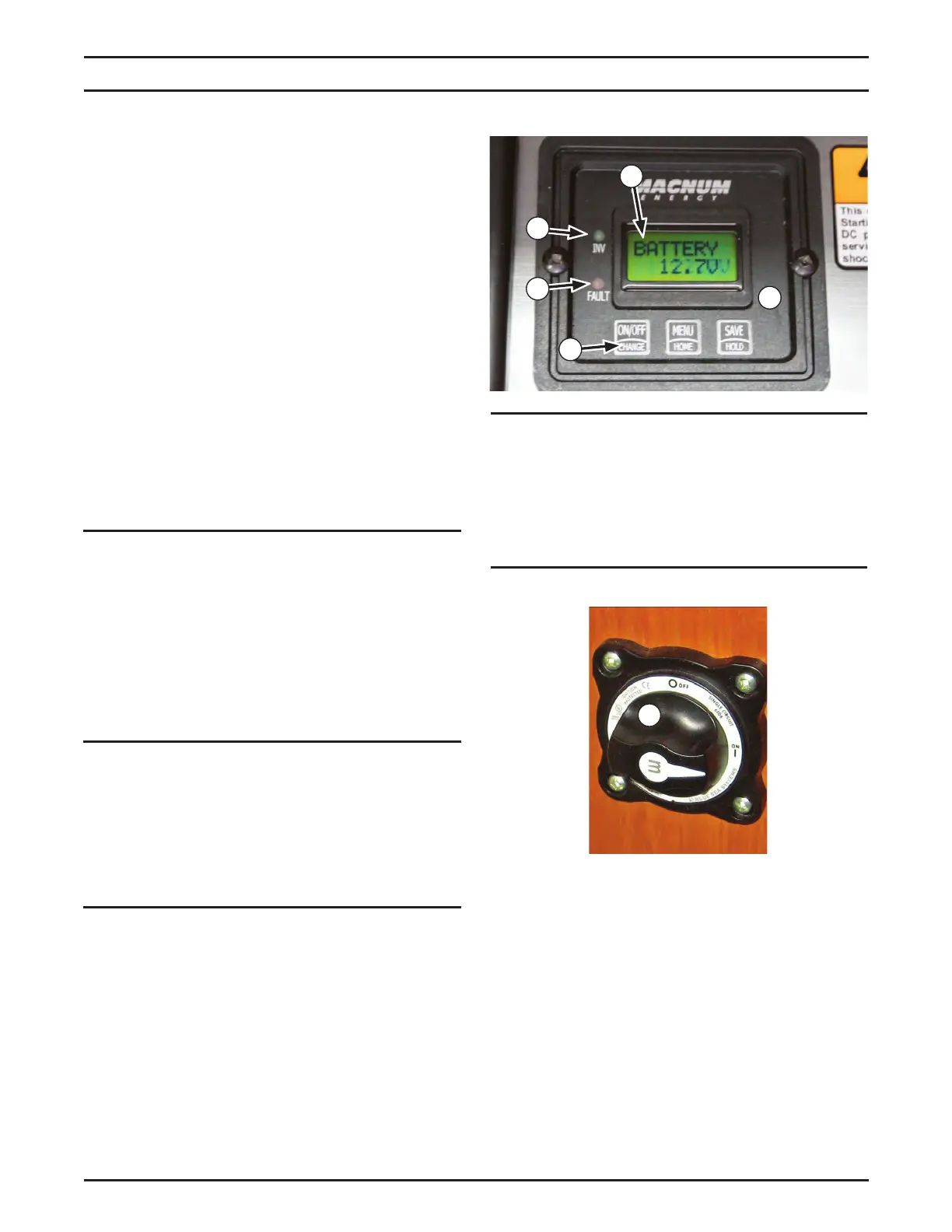

The Inverter Remote Control Panel (1) is
located in the cabinet above the coach entrance
doorway. The Inverter Remote Control Panel
is equipped with an Inverter Function - ON/
OFF (5). The Inverter/Charger System Status
Display (3) shows the Battery Voltage, different
stages of Battery Charging, DC Power Usage
while Inverting, and many more...
Refer to the inverter remote control manual
in the Motor home Information Kit for more
information.
1. Fault (2).
2. Status Display (3).
3. Inverting LED (4).
4. Inverter Function ON/OFF (5).
NOTICE
The inverter remote control panel is factory-
congured for the specic inverter and
battery installed in your motorhome. If
modications are made to the battery bank,
it may be necessary to re-congure the
remote. Have the unit serviced by authorized
personnel only.
NOTICE
The inverter may cause digital clocks
installed in small appliances, such as coffee
makers, to operate erratically or malfunction.
Avoid using digital clocks when operating
the inverter.
