Unity Motorhome
45
Vehicle Operation
A
B
C
4
1
3
2
5
Slide Out Room Emergency Operation
If the slide out room fails to extend or retract
electrically, you can manually operate the slide
out mechanism. Manual operation of the slide
out is not recommended unless the slide out
needs to be retracted in order to move the
motorhome.
NOTICE
The slide out electrical function is protected
by a fuse located on the power distribution
panel. Check that the fuse is intact before
resorting to manual slide out operation.
1. Turn the battery disconnect switch to the
“OFF” position, and disconnect the shore
power. Refer to the Battery Disconnect
Switch section in the “Electrical System
Operation” chapter.

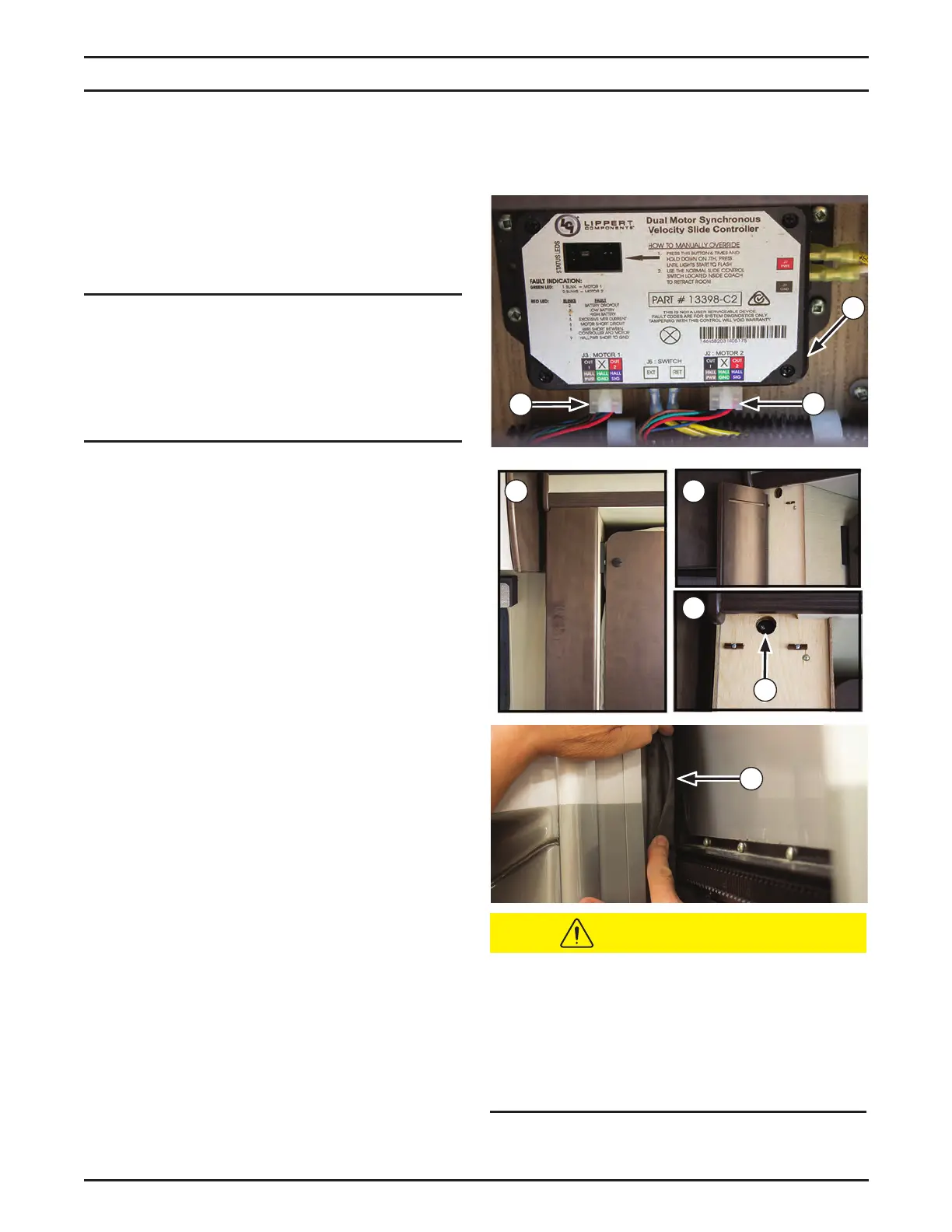

2. Locate the control module (1) (installed in
lower galley.
3. Unplug both motor electrical connectors (2
& 3) from the control module (1).
4. Remove the slide out snap-on trim boards
(A, B, C) to access the motor mounting
screw (4) on each side of the slide out, and
remove the screw.
5. Peel back the exterior sweep gasket (5)
from the top corners of the slide out, and lift
the slide out motor to release.
6. Push in the slide out room until fully retracted,
keeping both sides of the slide out level with
the coach while retracing.
NOTE: Manual movement of the slide
out requires signicant effort and may
require the assistance of several people.
7. Peel back the exterior sweep gasket (5)
from the top corners of the slide out, and
reengage the slide out motor.
8. Replace the motor mounting screw (4) on
each side of the slide out, and replace the
slide out snap-on trim boards (A, B, C).
9. Reconnect both electrical connectors (2 &
3) to the control module (1).
Do NOT move the motorhome unless the
slide out room motors electrical connectors
(2, 3) are connected to the control module
(1). Reconnecting the motor electrical
connectors to the control module applies a
brake to the slide out room motors, keeping
the slide out room locked in position.
10. Install the travel lock before moving the
motorhome.
Caution
