Unity Motorhome
46
Vehicle Operation
1
2
Awning

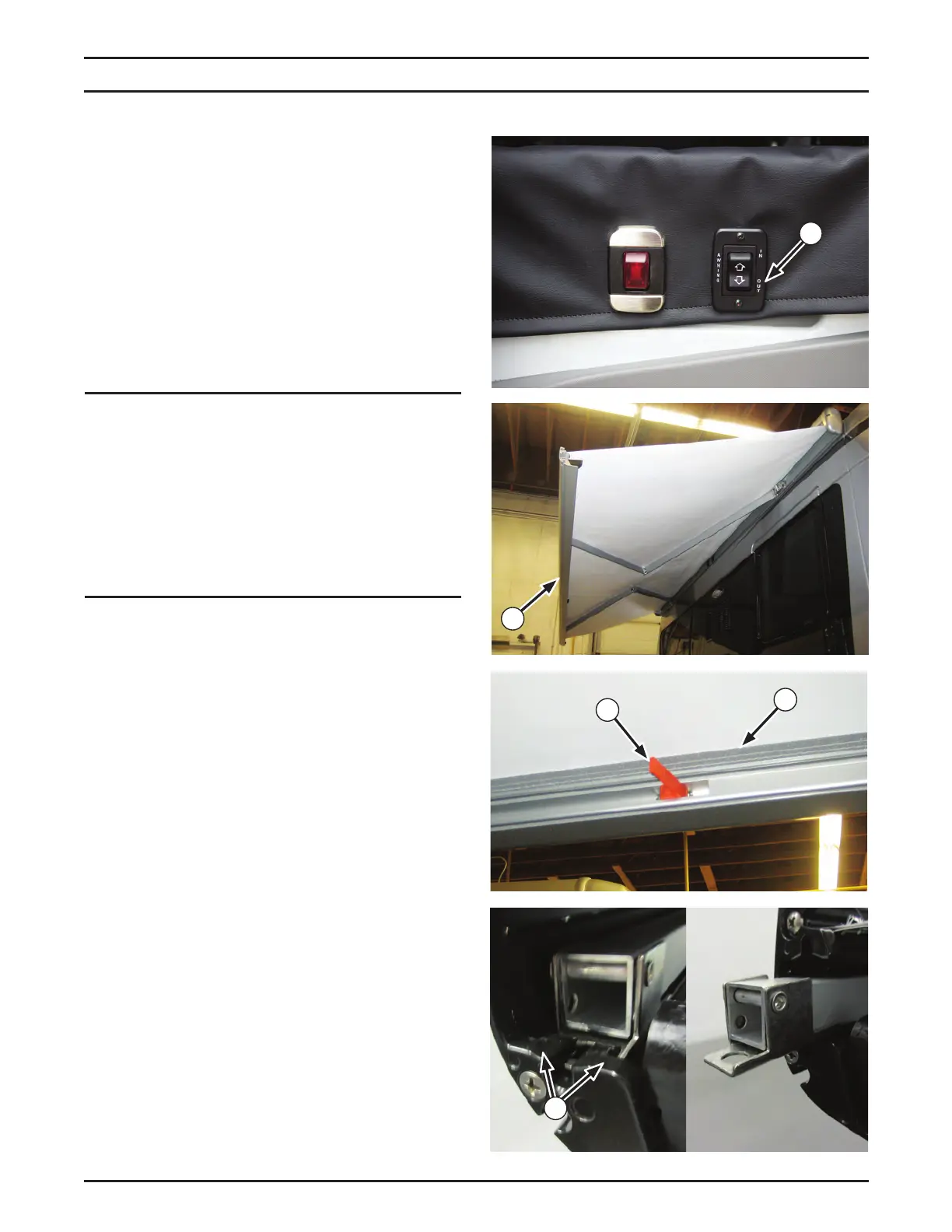

Extending the Awning
1. Depress and hold the awning switch (1),
located on passenger side seat base, in
the “OUT” (extend) position until the awning
has fully extended and the lead rail (2) is
accessible.
NOTE: The power awning will not
operate with the motorhome ignition on.
IMPORTANT
Awnings are designed to provide shade and
protection from the sun. Retract awning if
experiencing rain or wind conditions and
when leaving unit unattended. Always
secure awning in travel position when not
in use.
2. Unlock the right support leg (3), stored in
the lead rail (2), by lifting the latch (4) and
sliding the foot back to clear the tabs on the
lead rail end cap (5).
NOTE: Ensure that the support leg feet
have been properly locked into the tabs
on the lead rail end caps when retracting
the awning.
3. Slide out the right support leg (3) fully until it
reaches the end cap stop.
NOTE: Close latch (4) to clear the
awning support hinge.
3
4
5
