System Monitor

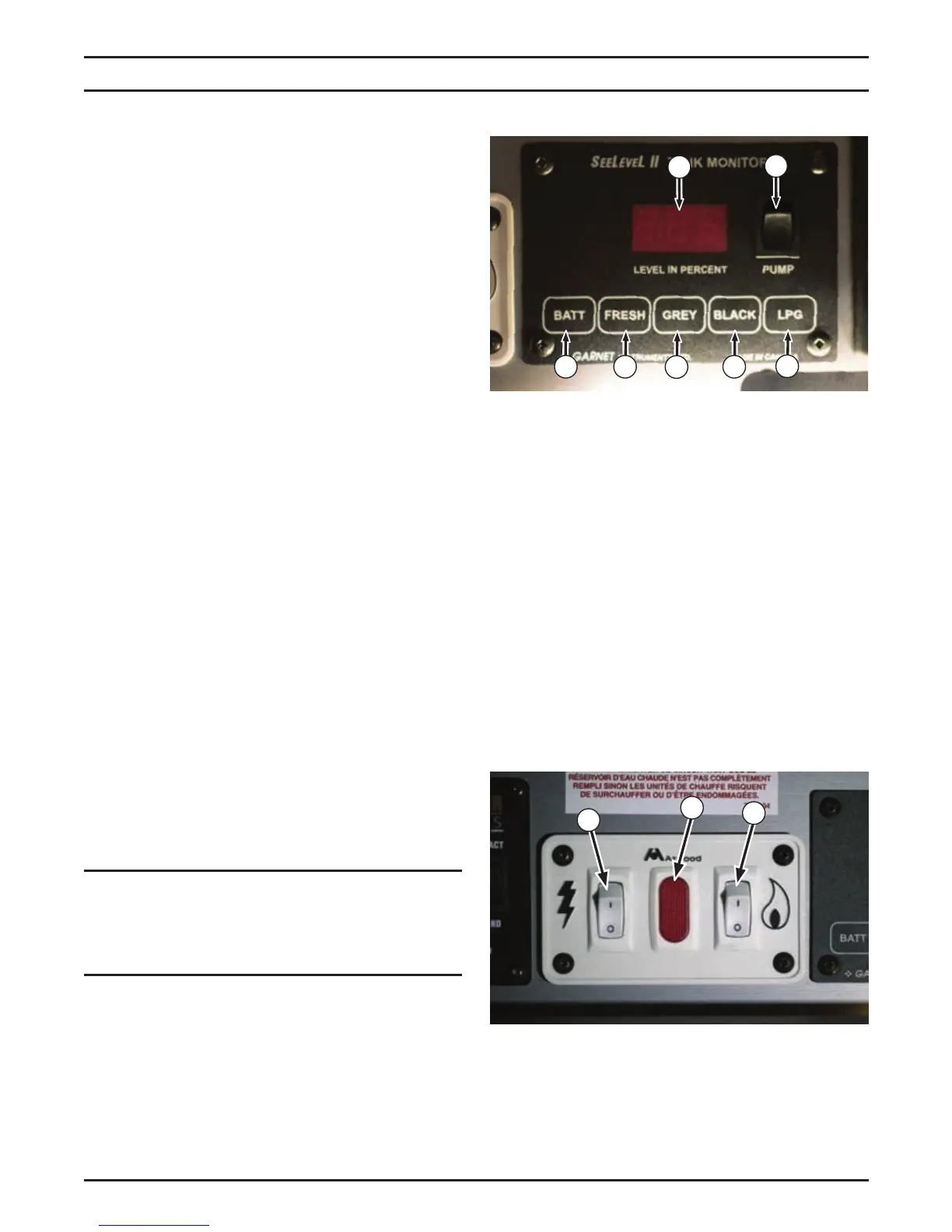

The system monitor panel, located in the
cabinet above the coach entrance doorway,
monitors the following systems:
Water ump Switch 2
This switch controls the power to the water
pump. Press the top of the switch to turn on the
water pump, and press the bottom of the switch
to turn off. The switch light illuminates when the
switch is in the on position.
Test Switches (3-7)
Depress the following switches to monitor the
level of the system capacity used/available on
the LED display (1):
BATT (3) isplays the attery power level
FRESH (4) isplays the resh water
holding tank level
GREY (5) isplays the grey water holding
tank level
LC isplays the lack water
holding tank level
L isplays the LP gas tank level
Refer to the detailed operating instructions in
the Motorhome Information Kit.
Water Heater Switch
These switches 8 electric, 9 gas control the
power to the water heater. Press the top of the
appropriate switch to turn on the water heater,
and press the bottom of the switch to turn off.
NOTICE
The water heater switch light (10) illuminates
if the water heater fails to ignite.
3 4
5
6
7
1
2
8
9
10
