LELY ASTRONAUT A4 Safety And Warranty Guide

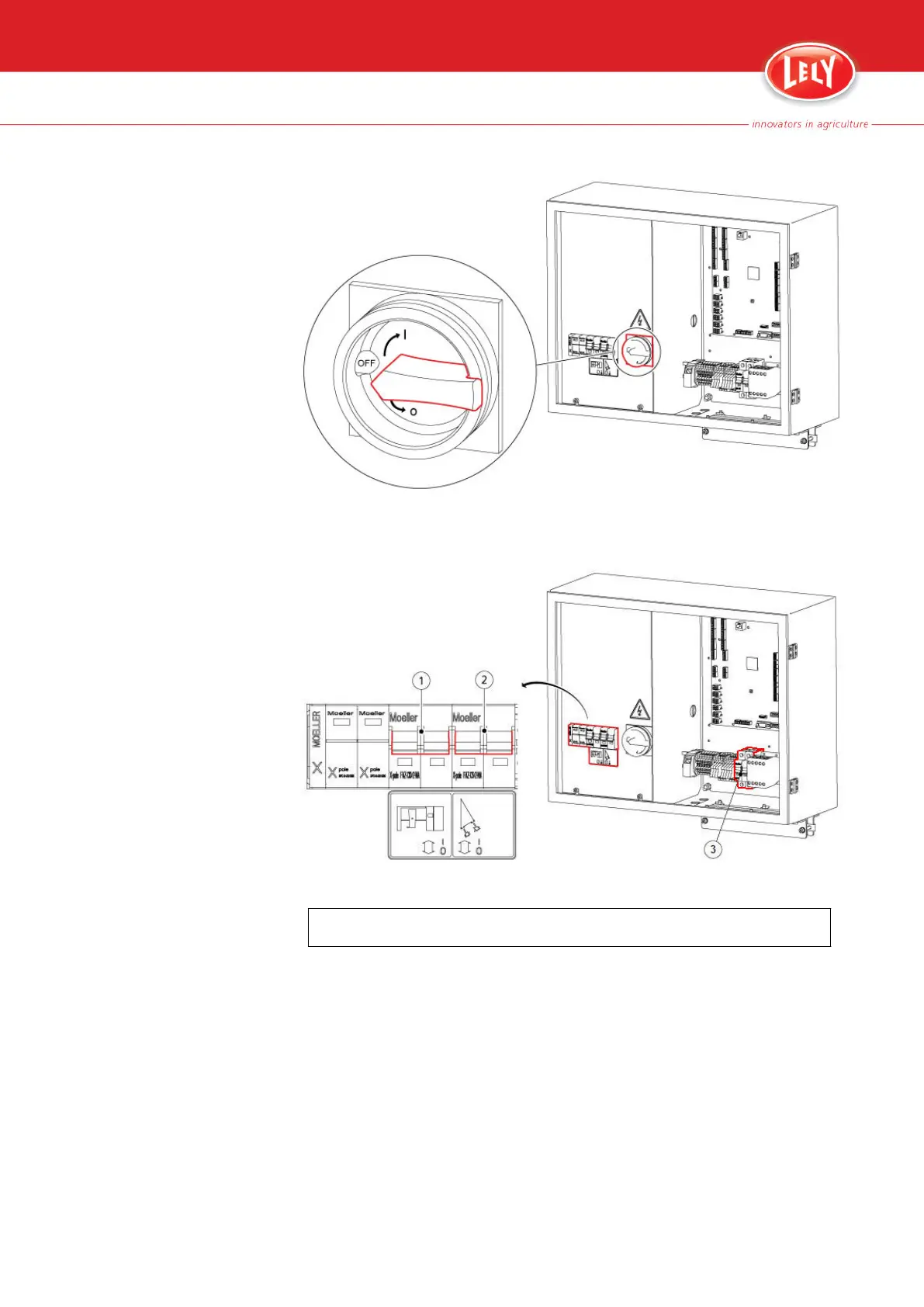

Figure 22. Switch ON or OFF the milking robot
4. Set the 24 VDC power supply switch (3) in the ON position.
Figure 23.
KEY:
1. Circuit breaker robot unit - 2. Circuit breaker Pura - 3. 24 VDC power supply switch
5. Set the automatic circuit breakers in the ON position, one by one from
left (1) to right (2) (only with a Pura).
6. Wait until the E-Link shows the [System] tab.
This takes approximately 30 seconds.
7. Select the button [Change view] and make sure that:
• Status of the AGS is 'Running'
• Status of ECS is blank
• Status of the other services is 'Init'
8. Select the button [Start].
Basic Operating Instructions
7-3
5.1004.8506.0 -
