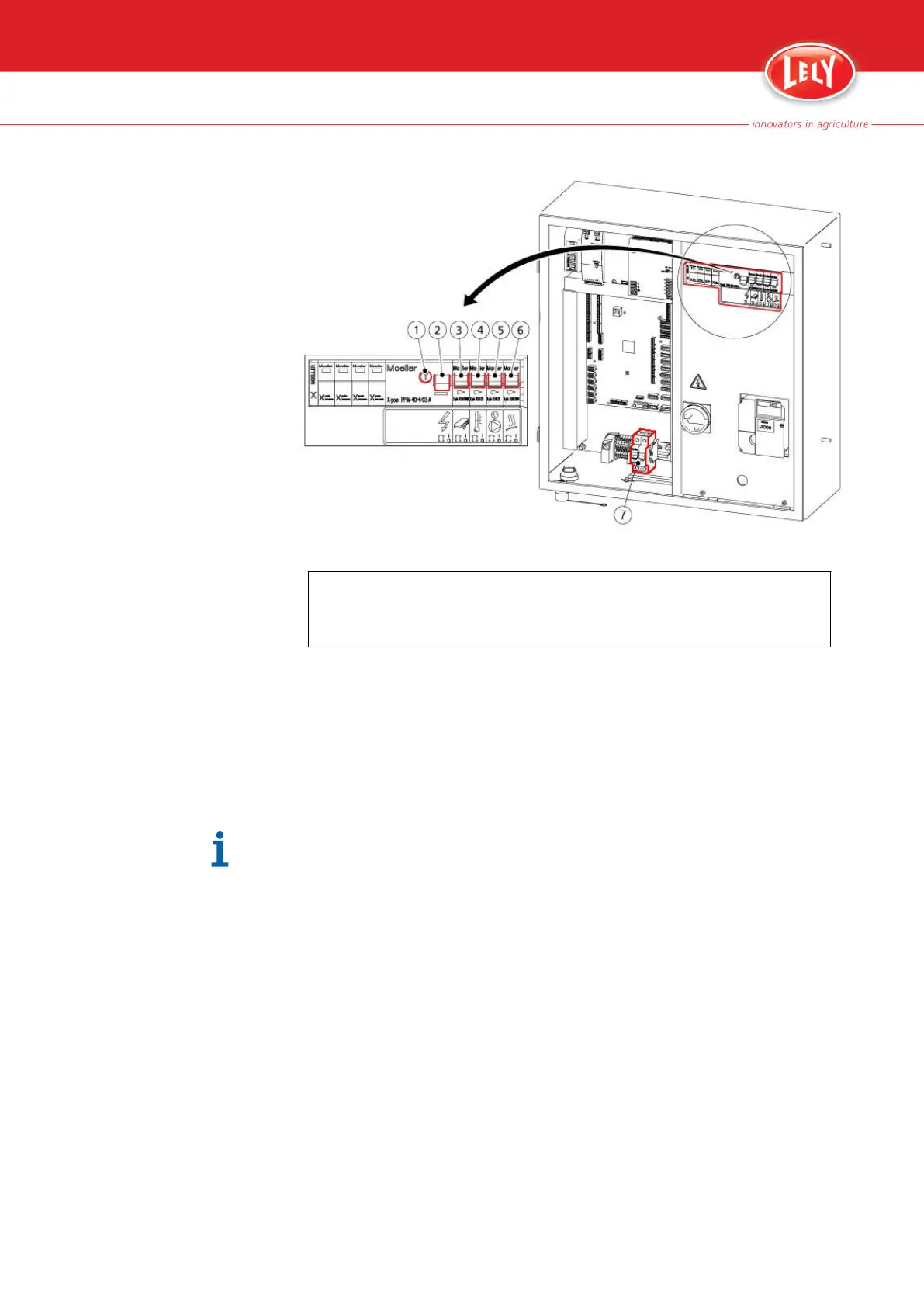

Figure 21. Power switches CU
KEY:
1.Test button save life switch - 2. Save life switch - 3. 24 VDC power supply switch - 4.
Boiler switch - 5. Vacuum pump switch - 6. Line heating switch - 7. 24 VDC power supply
switch
6. Set the save-life switch (2) in the ON position.
7. Set the automatic circuit breakers in the ON position, one by one from
left (3) to right (6).
8. Close the central control box.
9. Close the central unit.
7.1.2 Switch ON the Robot Unit
The central unit must be on in order to be able to switch on the robot unit.
On the robot unit
1. Open the door of the robot unit.
2. Open the robot control box.
3. Set the power supply switch in the ON position.
7-2
Basic Operating Instructions
5.1004.8506.0 -
