The air pressure remains in the robot until it is released.
9. Open the central control box.
10. Set the 24 VDC power supply switch (7) in the OFF position.

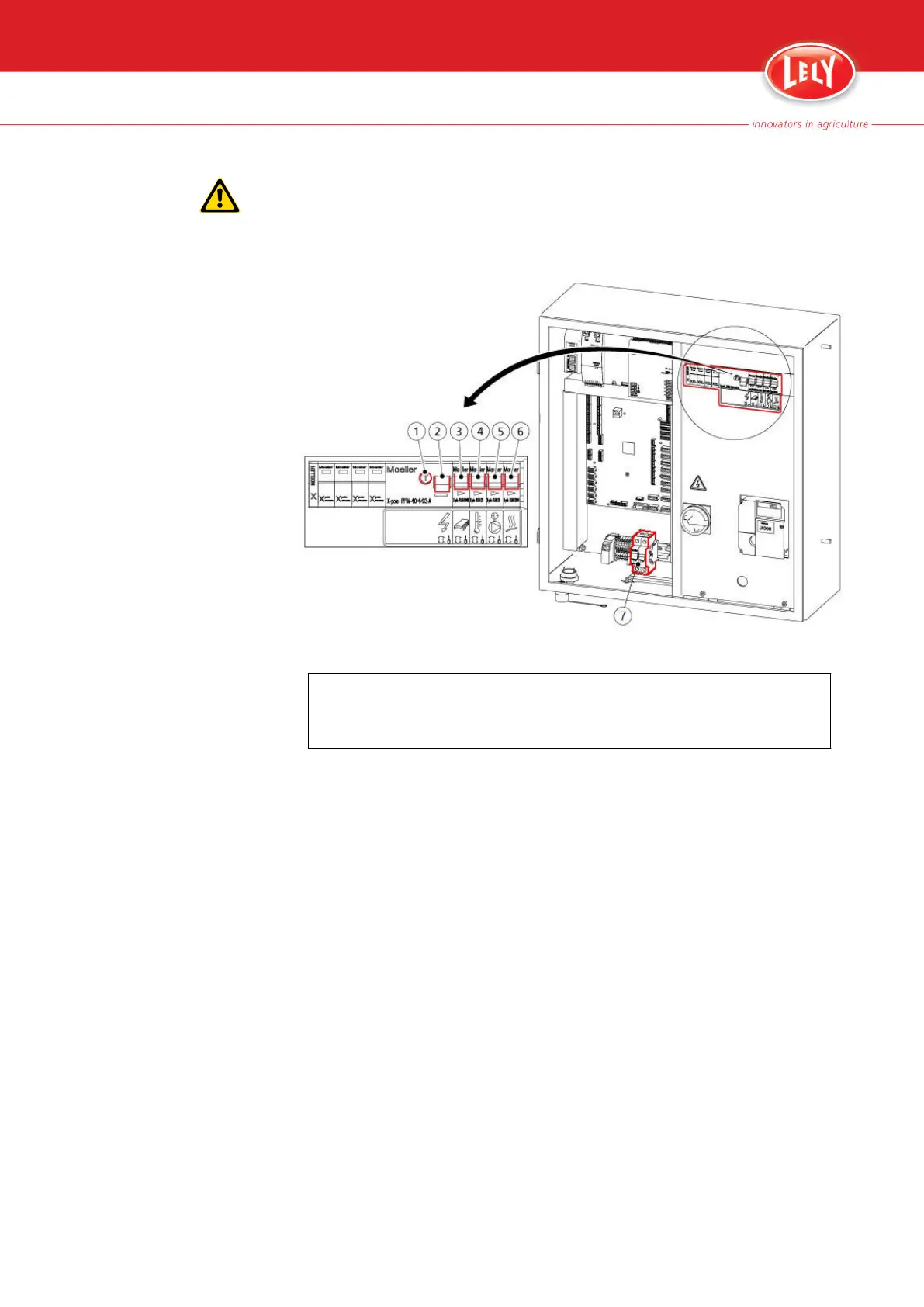

Figure 28. Power switches CU
KEY:
1.Test button save life switch - 2. Save life switch - 3. 24 VDC power supply switch - 4.
Boiler switch - 5. Vacuum pump switch - 6. Line heating switch - 7. 24 VDC power supply
switch
11. Set the circuit breakers in the OFF position, one by one from right (6)
to left (3).
12. Set the save-life switch (2) in the OFF position.
Basic Operating Instructions
7-7
