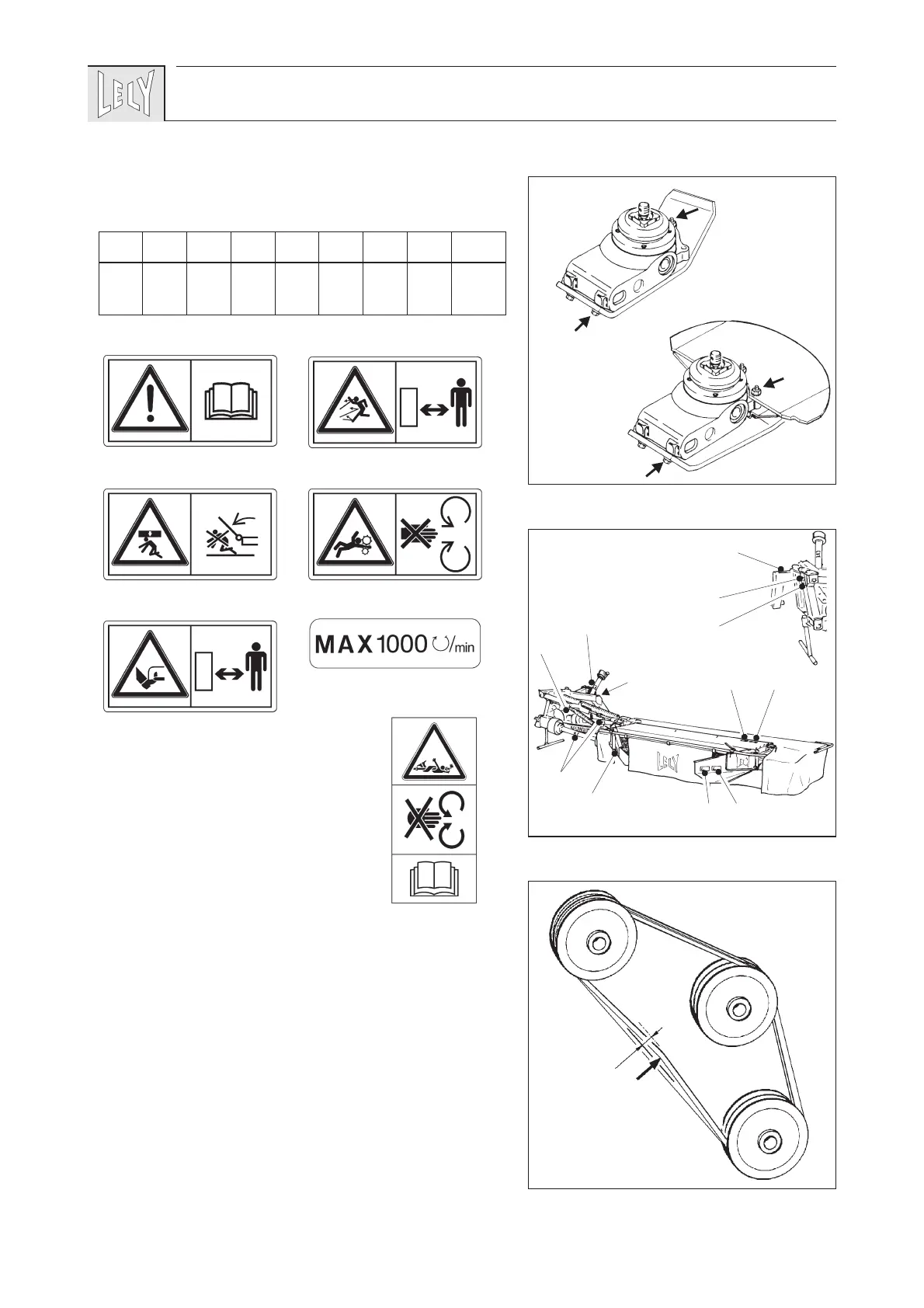

- Convince yourself of the presence and undamaged
condition of all safety decals on the machine (fig. 21).
A
(9.1170.0408.0) -2x-
B
(9.1170.0410.2) -3x-
C
(9.1170.0420.5)
D (9.1170.0407.6)
E (9.1170.0419.4)
F (9.1170.0125.4) -2x-
G (16.61.175) -3x-
• Check the tension of the V belts (320 MC mower).
• Remove the V-belt casing for this purpose. V belt tension
should be such that each belt can be pushed in approx. 10
mm in the central spot between the pulleys (fig. 24) with a
force of 70 N (7 kg).
• It is recommended to remove the tension from the V belts if
the machine will not be operated for a while.
41
20
21
A
G
G
B
EB
DA
F
B
C
F
A
G
C D
B
E
M6 M8 M10 M12 M14 M16 M20 M24
Nm 10 25 50 85 135 215 410 710
kgm 1,0 2,5 5,0 8,5 13,5 21,5 41,0 71,0
F
22
10 mm
70 N
(7 kg)
