7.6 Change of grease in mower elements
Replace the grease in the mower elements every 500 working
hours or every 1,000 hectares.
Follow the directions listed hereafter.

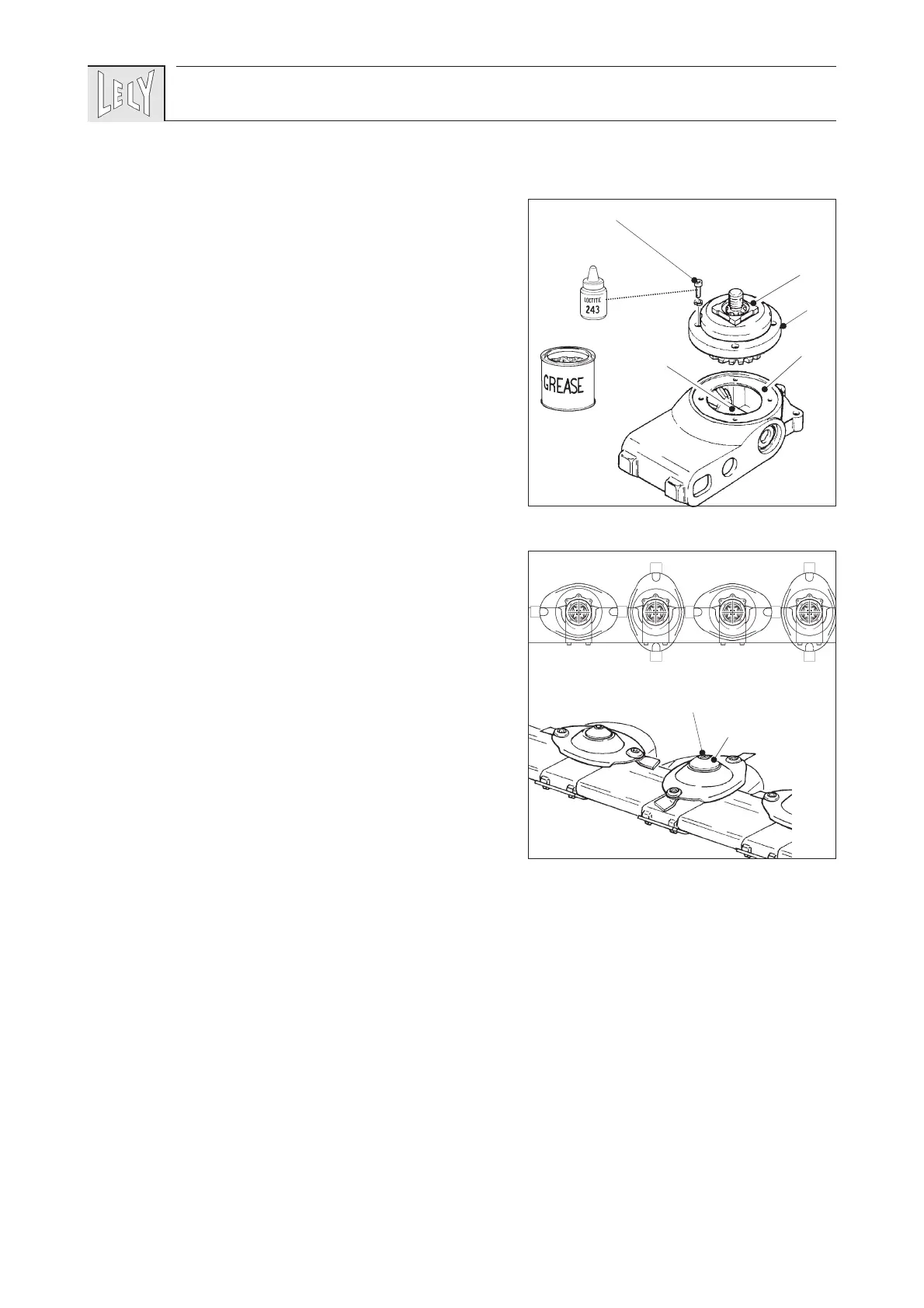

- Remove the mower disc.
- Dismount the bearing housing A (fig. 29) from the element.
Make sure that the shims B remain in place.
Attention! If several bearing housings need to be
dismounted, care should be taken that they are fitted
back on the original mower elements.
- Remove the grease from the element. Do not use a solvent
since it may affect the sealing of the bearings and/or rinse
the grease fill out of the bearings.
- Fill the elements with 95 grams of grease (grease
classification NLGI 0, type calcium-lithium soap or
lithium soap/Shell Alvania WR 0).
Attention! Measure the grease quantity carefully. An
incorrect quantity may cause overheating and damage
of the element.
- Place the bearing housing on the element. Turn the hub C
(fig. 29) so that it is aligned with the hub of the adjacent
mower element (fig. 30).
- Apply Loctite 243 to the thread of the fillister head screws
and tighten them with the following torque of 36 Nm (3,6
kgm) for mower unit with castellated nut.
- Check the presence of the O-ring in the pressure piece.
- Fit the mower disc. Tighten the castellated nut with a
torque of 150-250 Nm (15-25 kgm) and secure it with a
split pin. Make sure that the split pin does not protrude
above the pressure piece.
43
!
26
20 Nm (2 kgm)/36 Nm (3,6 kgm)
0.095 kg
NLGI 0
C
A
B
27
150-250 Nm (15-25 kgm)
!
D
