- Slide the mower elements and intermediate spacers from
the connecting rod (3).
Assembly of the cutter bar takes place in the reversed order.
Mind the directions listed hereafter.
- Clean the centring rings (10) and the contact areas of the
mower elements and intermediate spacers.
- Make sure that there is no contamination between those
elements and spacers which were not dismounted.
- Fit the elements in the standard configuration of directions
of rotation (fig. A-2) or in a configuration at your choice
(“S” model mower discs only).
•ARH rotation SPLENDIMO MC mower/ conditioner
element can be identified as follows.
When the hub is turned to the right (R - fig. A-3) the
drive gear on the RH side will turn anti-clockwise
(viewed from the rear).
•ALH rotation element can be identified as follows.
When the hub is turned to the left (L - fig. A-3), the drive
gear on the RH side will also turn anti-clockwise
- Make sure that the mower discs are turned 90° in
respect of one another. If a unit can not be slid onto the
drive shaft in one go, its disc needs to be turned a
semi-turn one or several times until the unit can be
placed.
- After disassembly of a disc, check the castellated nut M22.
- Check the presence of the O-ring in the pressure piece.
- Tighten the castellated nut (12) with a torque of 150-250
Nm (15-25 kgm) at M22 and secure it with a split pin.
Make sure that the split pin does not protrude above the
pressure piece.
- The securing disc (13) and supporting ring have to be fitted
in the outer mowing element. If this element is replaced,
these parts need to be moved over to the new unit.
- Apply some grease (Molykote Br 2 Plus) to the ring (8) as
well as to the threaded part of the connecting rod (3) and
nut (7). Fit the nut on the rod.
45
A-3
R
L
!

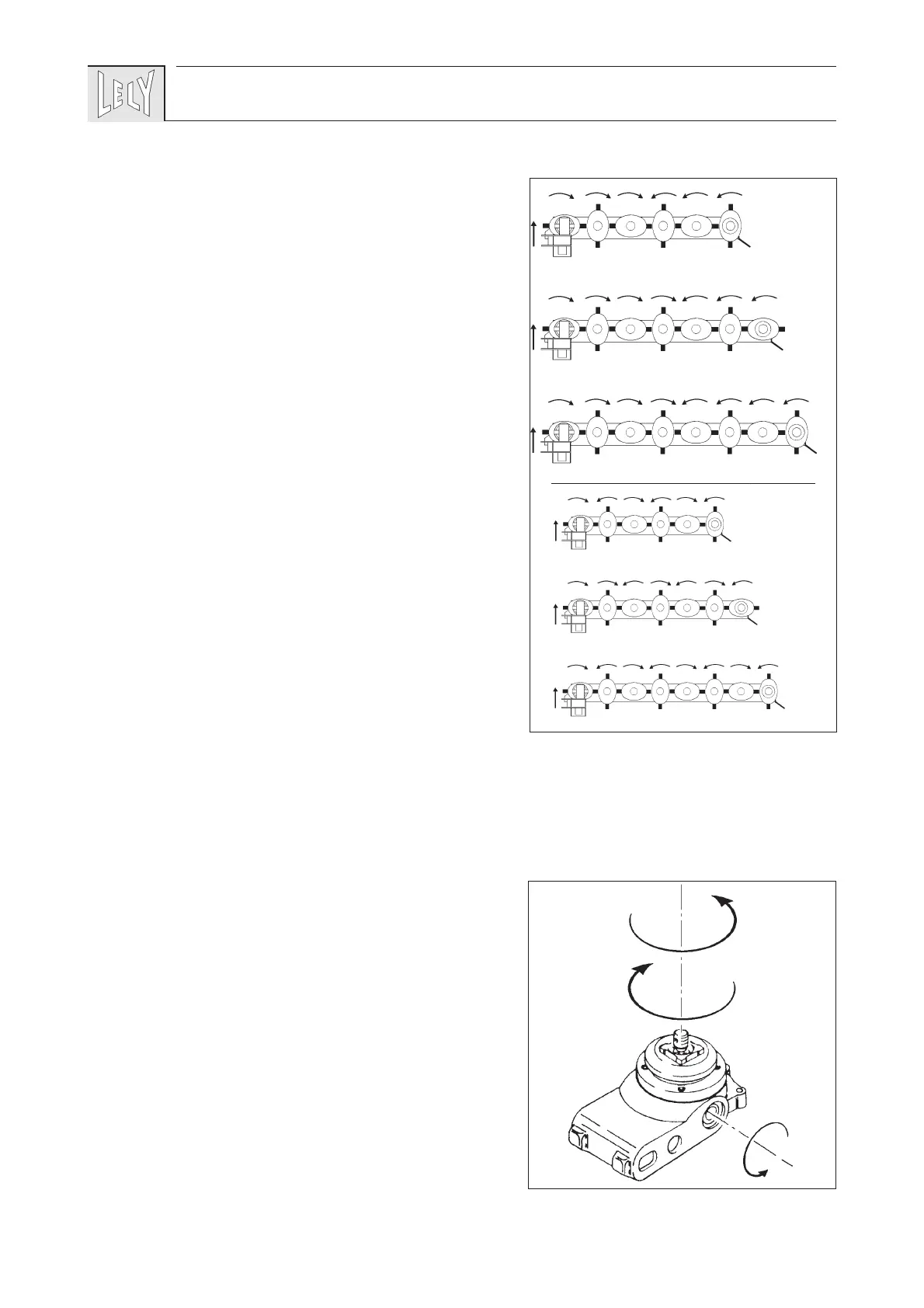

Supplement A
A-2
SPLENDIMO
®
240 MCS
SPLENDIMO
®
280 MCS
SPLENDIMO
®
320 MCS
SPLENDIMO
®
240 MCN
SPLENDIMO
®
320 MCN
SPLENDIMO
®
280 MCN
