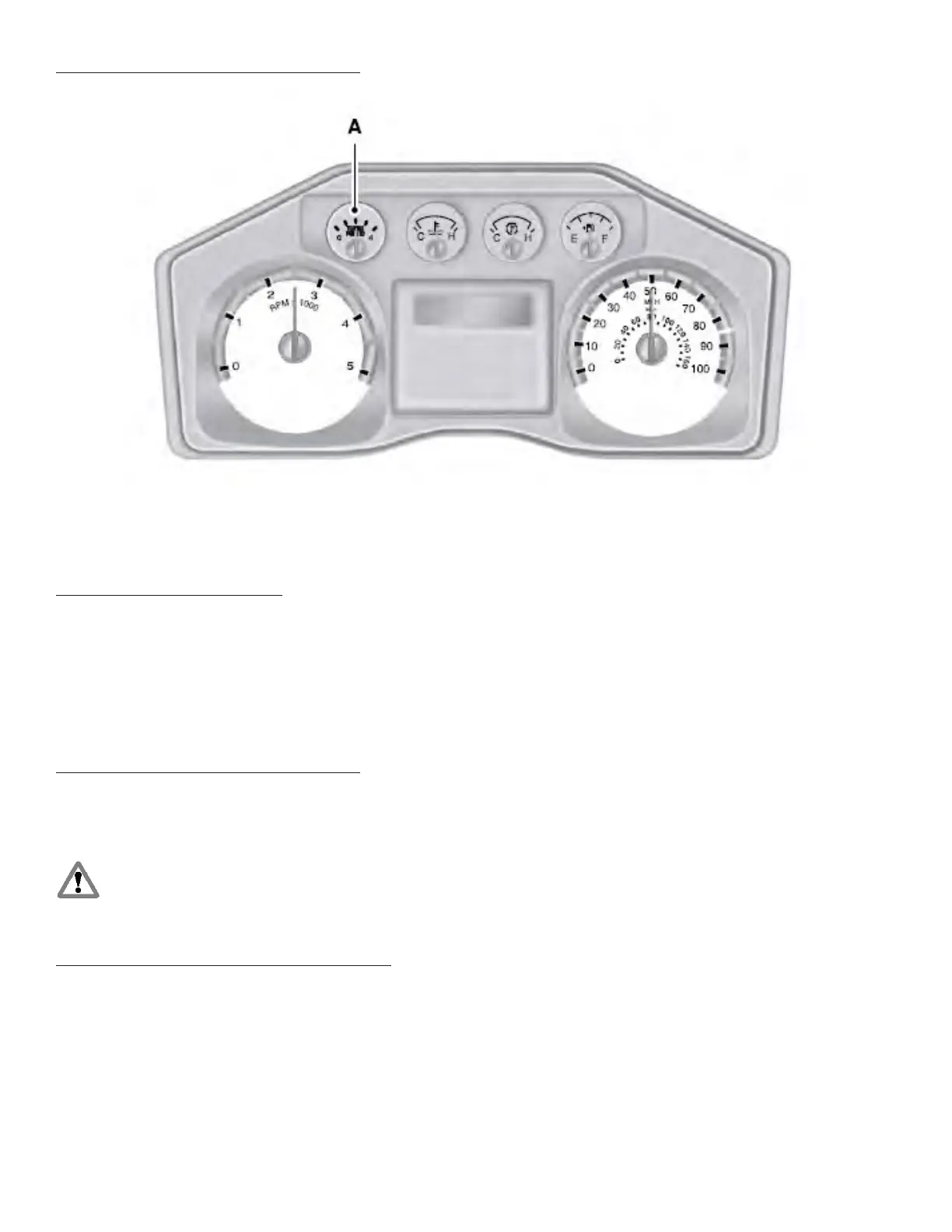

Instrument Cluster (6.7L V8 Diesel)
A. Engine Boost Gauge
Engine Oil Pressure Gauge
Engine Oil Pressure Gauge indicates engine oil pressure. e needle should stay in the normal operating range
(centered between L and H). If the needle falls below the normal range, stop the vehicle, turn o the engine and
check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked by your authorized
dealer.
Engine Coolant Temperature Gauge
Engine Coolant Temperature Gauge indicates engine coolant temperature. At normal operating temperature, the
level indicator will be in the normal range. If the engine coolant temperature exceeds the normal range, stop the
vehicle as soon as safely possible, switch o the engine and let the engine cool.
Warning: Never remove the coolant reservoir cap while the engine is running or hot.
Transmission Fluid Temperature Gauge
Transmission Fluid Temperature Gauge indicates transmission uid temperature. At normal operating temperature,
the level indicator will be in the normal range. If the transmission uid temperature exceeds the normal range,
stop the vehicle as soon as safely possible and verify that airow is not restricted such as snow or debris blocking
airow through the grill. Higher than normal operating temperature can also be caused by special operation
conditions (i.e. Towing or o-road use). Operating the transmission with the temperature in the higher than
normal range can cause transmission damage. Altering the severity of the driving conditions is recommended to
lower the transmission temperature into the normal range. If the gauge continues to show high temperatures, see
your authorized dealer.
