47
BMI Gunner Seat
e BMI Gunner Seat attaches to the roof mounted turret and provides a seat for the gunner operating out of the
turret. e Gunner seat has a third connection that comes up through the stand and attaches to the bottom of the
seat to increase seat stability.
Gunner seat straps are equipped with quick release pull handles, to release the gunner seat in an emergency.
To release the gunner seat; pull down on the yellow quick release straps. Be sure feet are planted rmly on the
gunner platform.
Note: Be sure restraint straps are not ripped, knotted, cut, or damaged before use.
Use extreme caution when standing in gunner position while vehicle is in motion. Operator should be holding
onto supports to maintain stability at all times.
Rotating Roof Hatch
e Roof Mounted Rotating Hatch is opened by releasing the rotary latch and pushing upward on the lid. To
release rotary latch apply pressure outward on the rotary latch handle. e counter balance hinge system allows
the Ballistic lid to be lied easily. When fully opened the hatch lid will lock in the upright position via a T-Handle
Latch. To lower the lid; release the T-Handle labeled “Hatch Release” located on the right side of the lid and pull
the lid simultaneously into the closed position using the interior grab handle.
Warning: Use caution while closing turret lid. Be sure personnel and equipment are clear of the turret lid path
before closing. Failure to comply could result in equipment damage and injury to personnel.
Warning: Do not attempt to open or close the hatch lid while vehicle is in motion. Be sure lid is securely latched
in either the open or closed position before operating the vehicle. Failure to do so could result in personal injury.

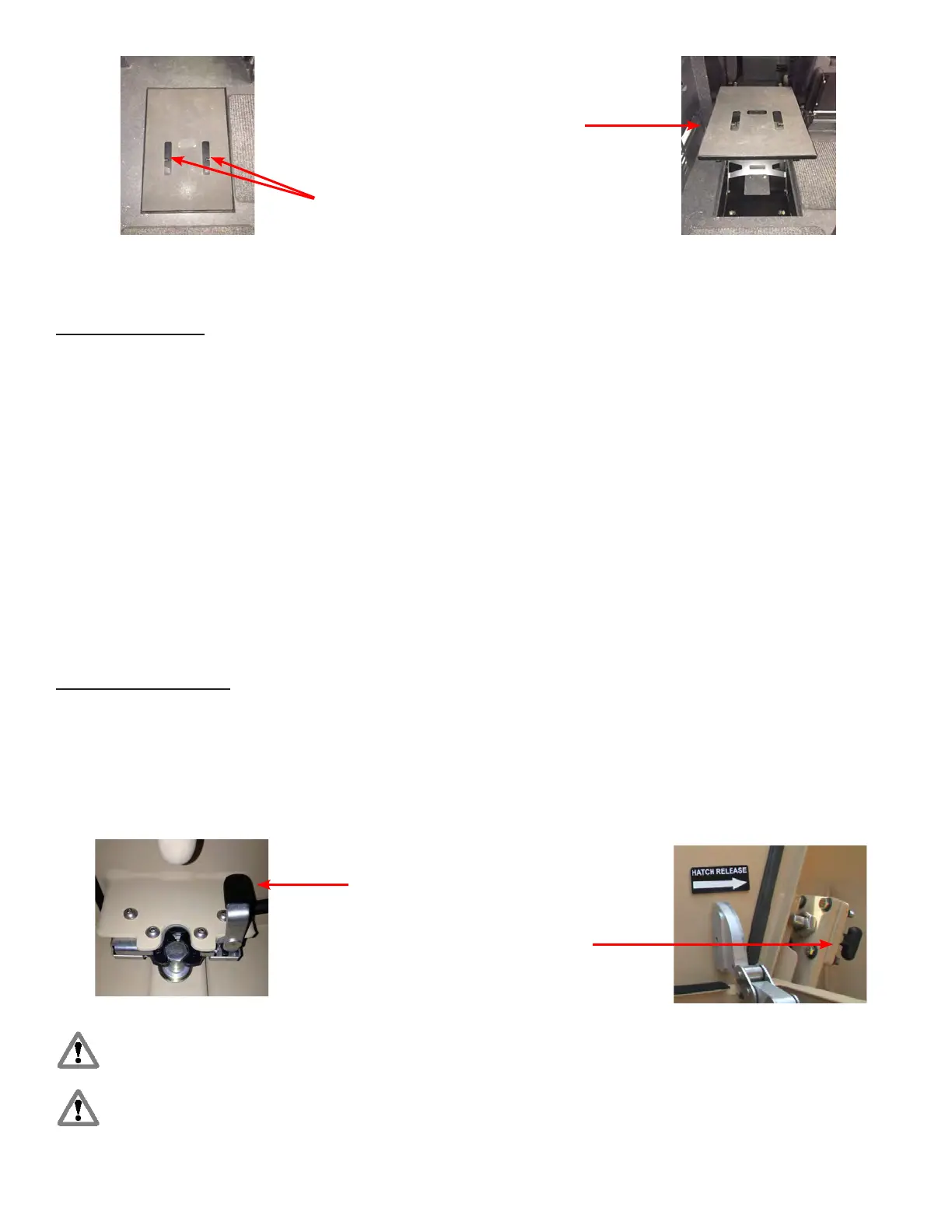

Gunner Stand Release Pins
Gunner Stand in Raised Position
Turret Lid Rotary Latch Handle
T-Handle Hatch Release
