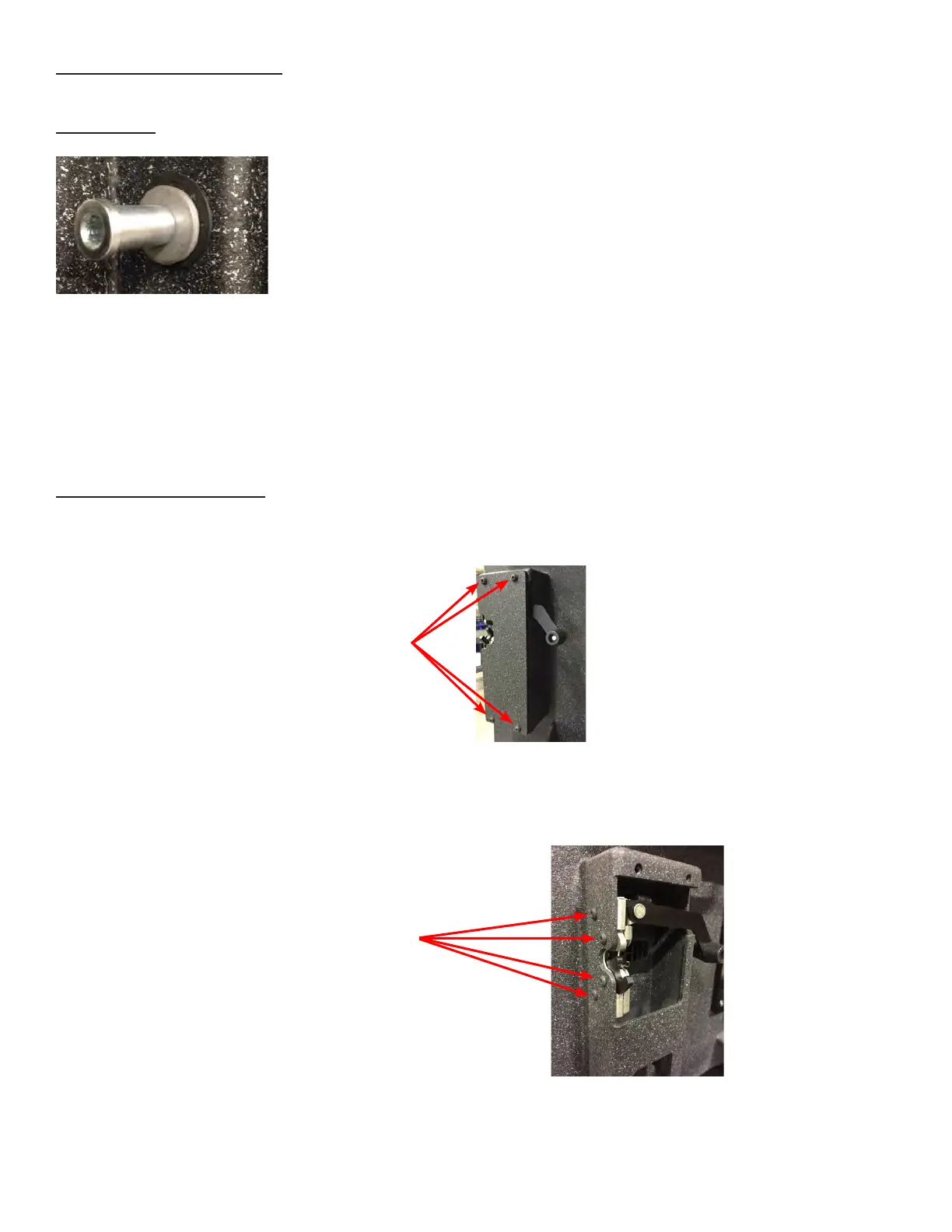

Door Latch Maintenance
Striker Pins
Note: Check all Striker Pins every 2000 miles or if door lock function is impaired.
Striker pins may become loose causing the door to close improperly. It is important to adjust Striker pins so the
outside of the doors align properly against the exterior walls. If Striker pins are not adjusted properly weather
stripping will not seal and Combat Locks may not latch.
Removal of Rotary Latch
Remove the (4) 1/4-20 X ¾” BH bolts and split lock washers that secure the rotary latch cover in place. Remove
the Rotary Latch cover.
Remove the (4) 1/4-20 X 1” BH bolts that secure the Rotary Latch in place. Slide Rotary Latch Out of Rotary Latch
Lock Box.
(4) ¼-20 X ¼” BH Bolts
(4) 1/4-20 X 1”BH Bolts
