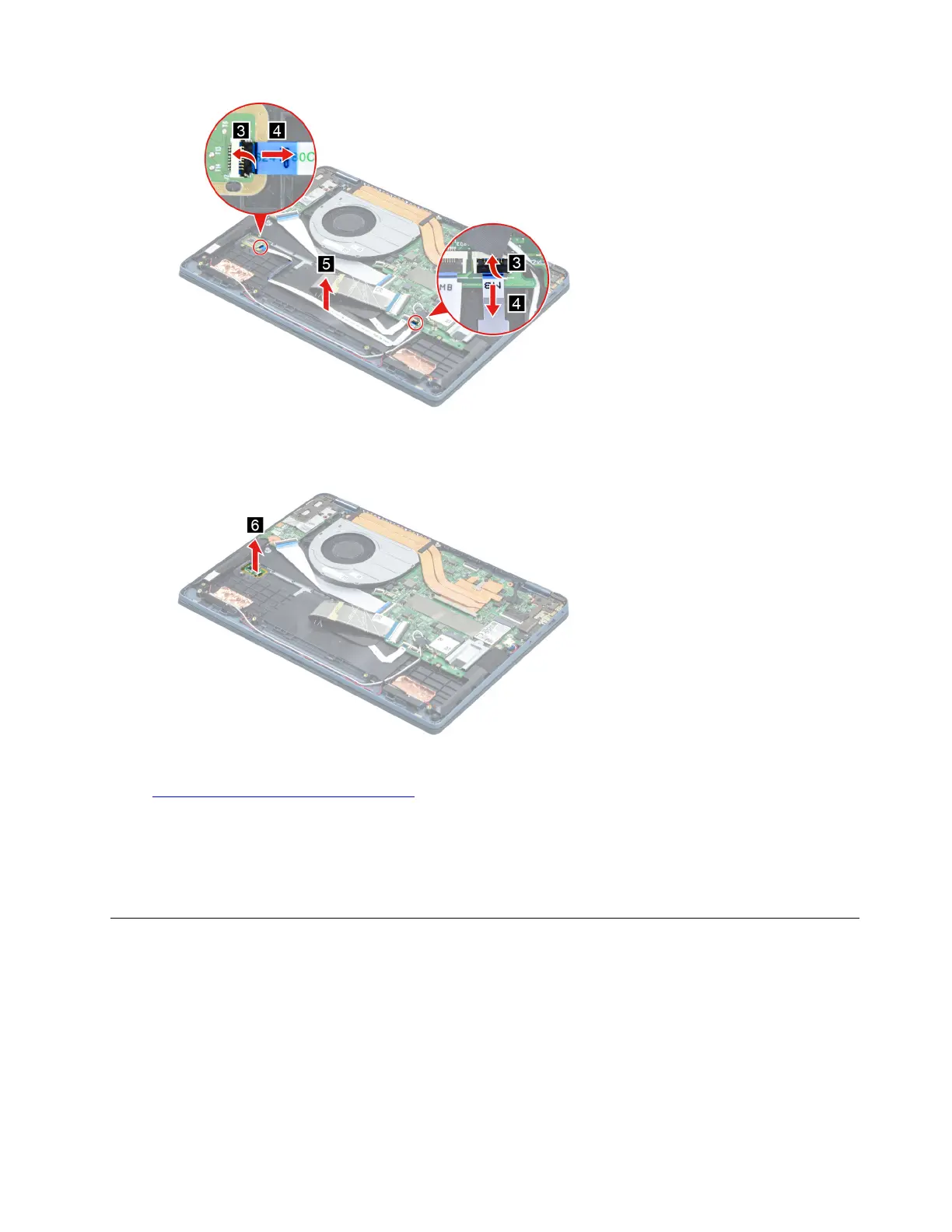

Figure 18. Remove the fingerprint board cable
Step 3. Remove fingerprint board.
Figure 19. Remove fingerprint board
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Fingerprint board bracket
Fingerprint board cable
Fingerprint board
Remove the speakers
Make sure the following FRU (CRU) has been removed.
“Remove the lower case” on page 30
“Remove the battery pack” on page 31
Step 1. Disconnect the speaker cable from the system board and release the speaker cable from the cable
guide. Remove the speakers.
Chapter 4. Removing a FRU or CRU 39
