Disassemble the LCD unit
The LCD unit as a whole is not an FRU. Instead, it contains FRUs as its components. Before disassembling
the LCD unit, make sure it has been detached from the upper case.
Remove the hinge cover
Make sure the following unit has been removed.
“Disassemble the LCD unit” on page 48

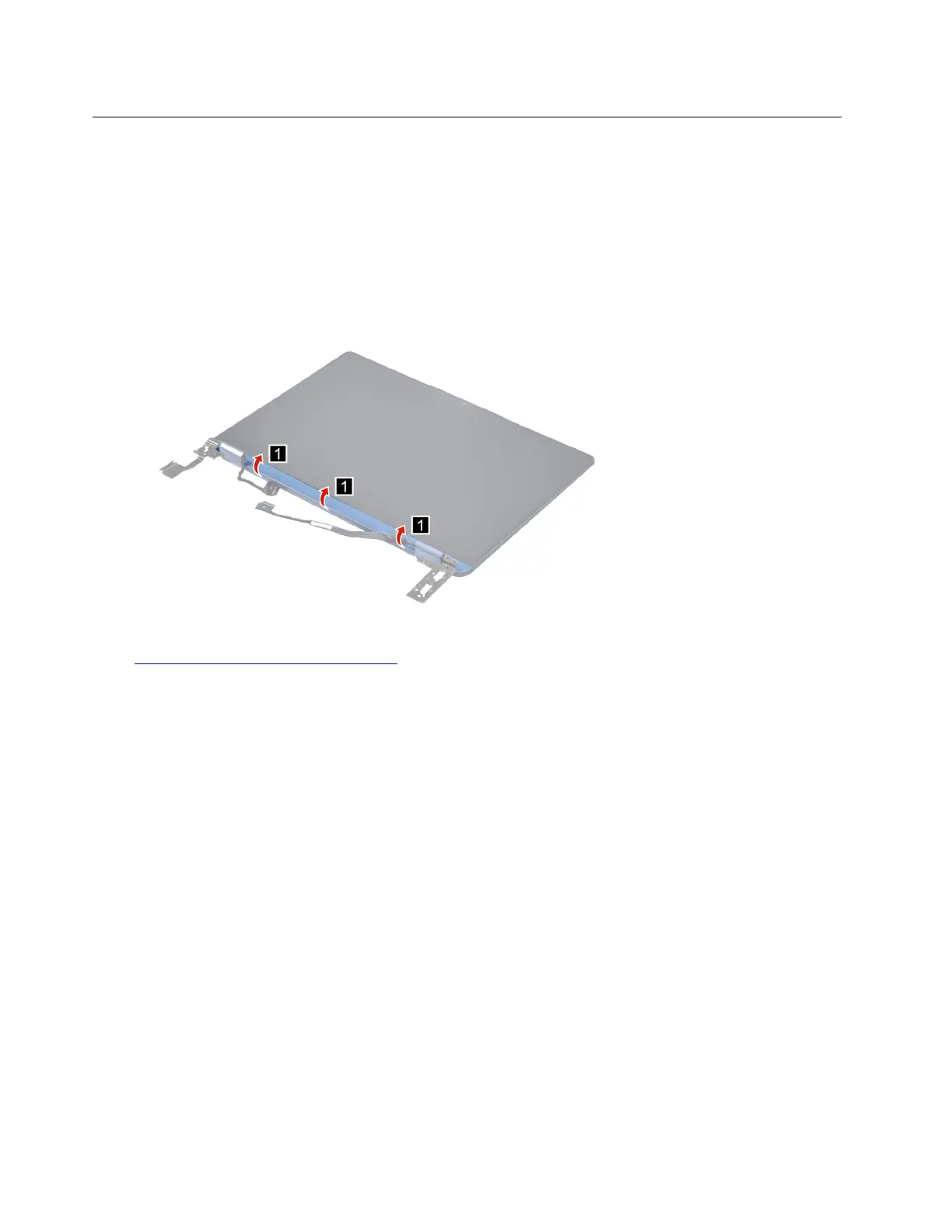

Step 1. Remove the hinge cover.
Figure 34. Remove the hinge cover
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Hinge cover
Remove the LCD panel and EDP cable
Make sure the following FRUs (CRUs) have been removed.
“Disassemble the LCD unit” on page 48
“Remove the hinge cover” on page 48
Step 1. Detach the two cable connectors. Remove three screws.
