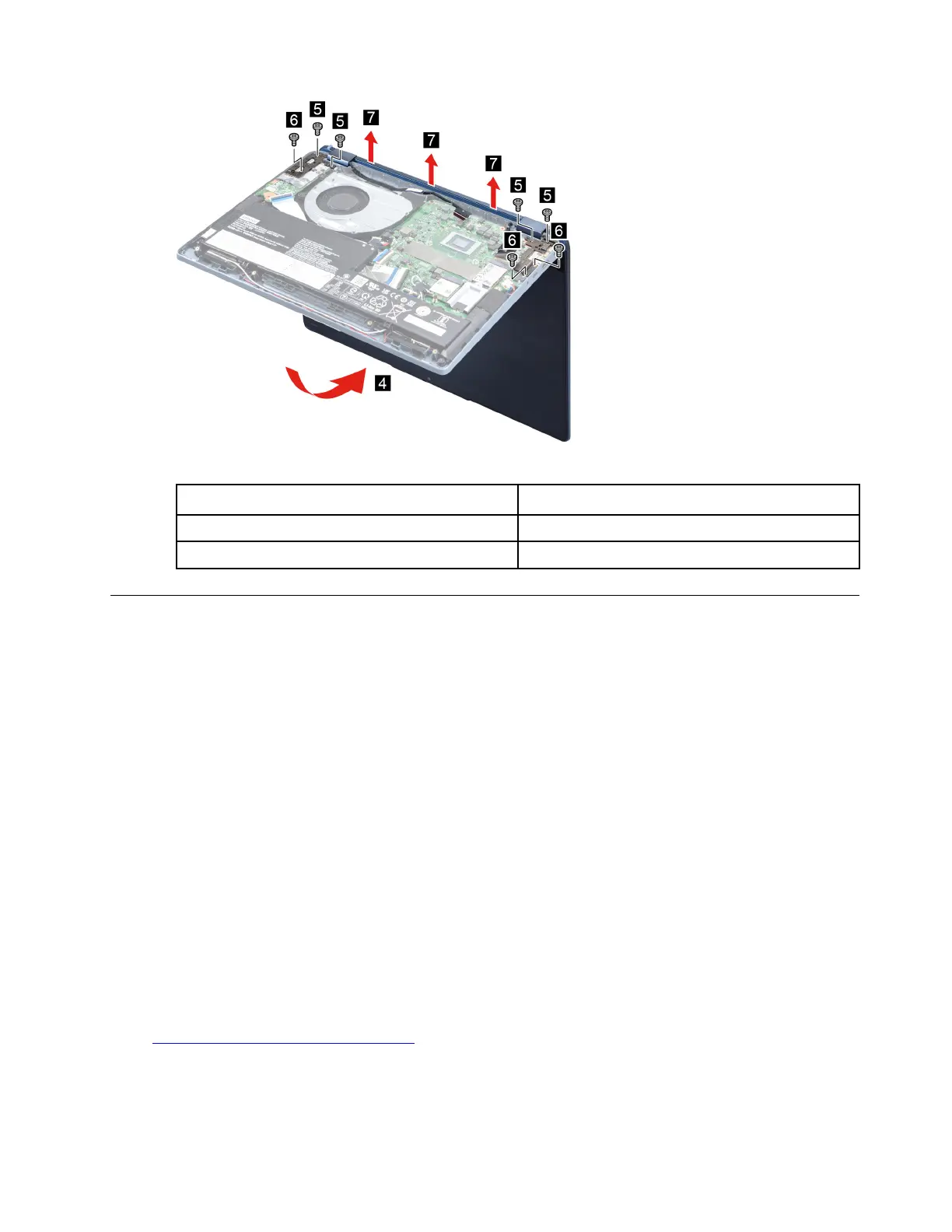

Figure 33. Remove seven screws and remove the LCD unit
Screw specifications
Number of screws
M2.5 x L5 4
M2 x L5 3
Remove the upper case
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 30
“Remove the battery pack” on page 31
“Remove the solid-state drive (SSD)” on page 32
“Remove the Wi-Fi card” on page 33
“Remove the heat sink” on page 34
“Remove the fan” on page 35
“Remove the I/O board” on page 36
“Remove the I/O board cable” on page 37
“Remove the fingerprint board module” on page 38
“Remove the speakers” on page 39
“Remove the antenna” on page 40
“Remove the touchpad cable” on page 41
“Remove the system board” on page 41
“Remove the LCD unit” on page 45
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Upper case
Chapter 4. Removing a FRU or CRU 47
